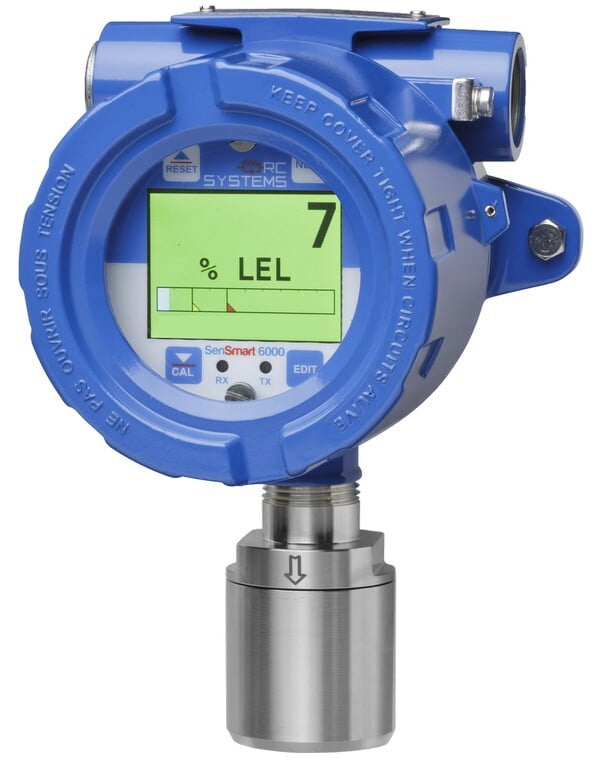

SenSmart 6100 EC Industrial Gas Detector
- Area Classification: Division 1 Explosion Proof
- Enclosure Type: Aluminum
- Output Option: Standard 4-20mA Output and 10-0388 Dual Modbus RTU with 4 Relays
- Gas Type: Carbon Monoxide
- Sensor Type: 10-1011 Smart Sensor, EC with Arctic Heater, 0-50/100/500/1000/5000PPM, Carbon Monoxide
- Sensor Range: 0-100ppm
- Sensor Location: Local Mount with Splash Guard
Description
The state-of-the-art SenSmart 6100 EC industrial gas detector is built with our proven ST-44 transmitter. This versatile unit has a bright, vivid colordisplay and embedded Ethernet with Webserver and Modbus TCP.
The high performance, universal SenSmart 6100 EC toxic gas detector supports our electrochemical sensors. It is CSA Certified for Class 1, Division 1 locations.
- QVGA LCD with stunning color graphics
- Ethernet: Modbus TCP with web server
- RS-485 remote sensor option
- Dual Port Modbus RTU/relays option
SenSmart 6100 EC Industrial Gas Detector
- Vivid QVGA backlit color TFT display
- Display color changes with alarm status
- Standard Ethernet port with web server & Modbus TCP
- Two RS-485 ports for Modbus
- Sensor life indicators
- Remote sensor mount with up to 4000’ range
- 3 programmable relays & fault relay available
- Heated elements available for low temperature applications
- Non-intrusive single-user calibration
- Temperature compensation
- Part Number: 61002AL-0-1015/100P/L1
Industrial Gas Detectors for Safety in the Workplace
Monitoring harmful gases in the ambient air can be challenging but crucial to ensure a safe industrial environment. Too much oxygen or toxic gas, such as hydrogen sulfide, chlorine, or ammonia, can present new dangers to employees and equipment in the area. Fortunately, finding the best sensor and monitoring system for your environment helps automate the process of gas detection and gives you peace of mind.
Industrial toxic gas and oxygen gas detectors monitor the presence of gases in a specified area and sound an alarm when they reach dangerous levels. Gas detectors are typically installed where there is a potential for a gas leak, and where unsafe gas levels pose an immediate danger to workers or equipment. Toxic gas detectors are widely used by industries including gas and oil, medical, mining, nuclear, construction, food and beverage, and industrial.
Specifications
- Area Classification: Division 2 Non-Incendive
- Enclosure Type: Aluminum
- Output Option: With Modbus TCP over Ethernet and Standard 4-20mA Output
- Gas Type: Ammonia
- Sensor Range: 0-100ppm
- Sensor Location: Local Mount with Splash Guard
