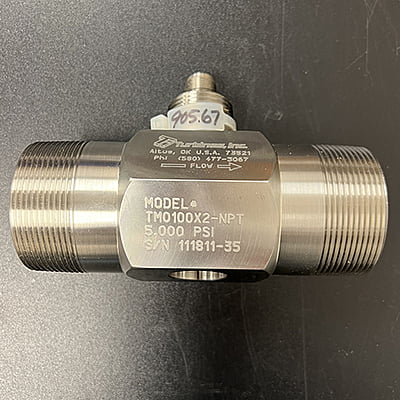

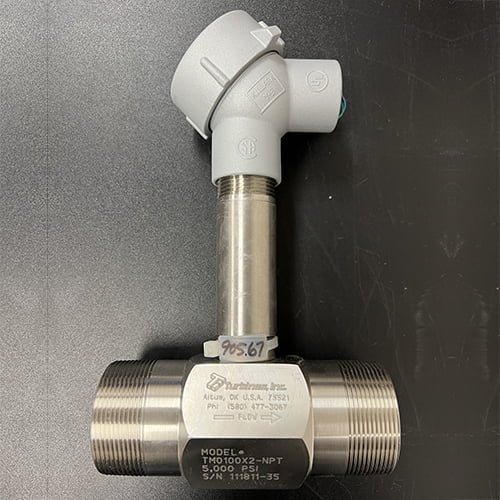

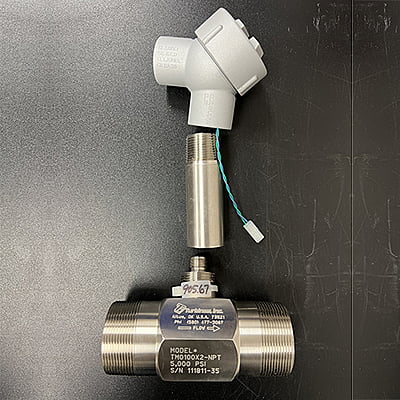

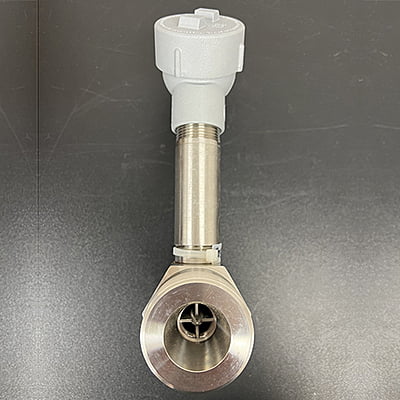

TM0100X2-NPT
Our liquid flow measurement turbines come in a comprehensive variety of offerings, accuracy, and impressive temperature operating ranges. All of our in-line meter series (installed within a length of pipe) and the wafer-style turbine meters (typically inserted between two flanges) are precision machined stainless steel. They are also available in a wide variety of materials of construction.
- 2" NPT, 5-50 GPM, 316SS
- Accuracy ±1% of rate
- Wide Temperature Application -100˚F to +800˚F
- Repeatability of 0.1%
- Line sizes from 3/8 inch through 10 inches
- Repeatability over flow range: ±0.10%
- Operating temperature: -100 °F to +800°F
Description of the TM0100X2-NPT Series, Liquid Inline Flow Meter
Our liquid turbine flow meters come in a comprehensive variety of offerings, accuracy, and impressive temperature operating ranges. All of our in-line meter series (installed within a length of pipe) and the wafer-style turbine meters (typically inserted between two flanges) are precision machined stainless steel. They are also available in a wide variety of materials of construction.
TM Series – Liquid Inline Turbine Flow Meters

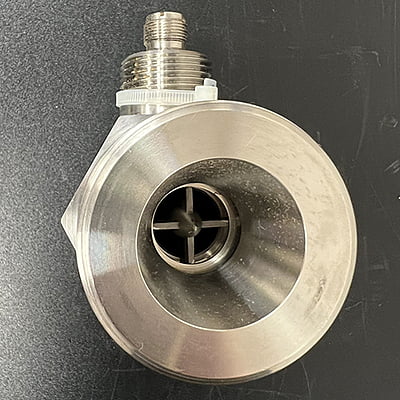

The TM Series Liquid Inline Flow Meter is a highly versatile product line that offers all stainless steel, precision-machine components with CD4MCu and/or 416 stainless steel rotors.
These flow meters are ideal for liquid applications and are available with a variety of process connections, including threaded, flanged, and Victaulic.
This series provides ±1.0% standard linearity and is repeatable to ±0.10% over the entire flow range. These turbine flow meters have a unique K-factor that is NIST-traceable to factory or independent laboratory calibration.
Specifications for the TM0100X2-NPT Series, Liquid Inline Flow Meter
- Accuracy: ±1.0% over flow range
- Repeatability: ±0.1 % over flow range
- Operating Temperature: -100˚F to +800˚F
- Connection: Flanged, Victaulic® (grooved), or NPT (Consult factory for additional process connection options)
- Flow Rates: From 0.3 - 5,500GPM (10 - 190,000 BPD)
Materials
- Meter Body: 316 stainless steel
- Rotor Supports: 316 stainless steel
- Meter Rotor: CD4MCu/416 stainless steel
- Rotor Shaft: Tungsten carbide
- Sleeve Bearings: Tungsten carbide
Certifications
- SO9001
- AS9100
- 3A
- NIST
- NTEP
- CTEP
- OIML R81/R117/MID
- CSA
- Intrinsic Safety
- Canadian CRN
Additional Information About the TM0100X2-NPT Series, Liquid Inline Flow Meter
- Full line of economical Retrofit Kits are available
- Factory refurbishment available
