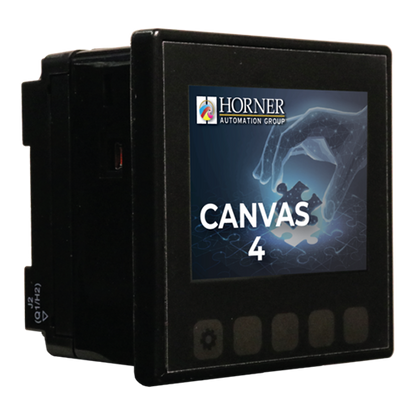

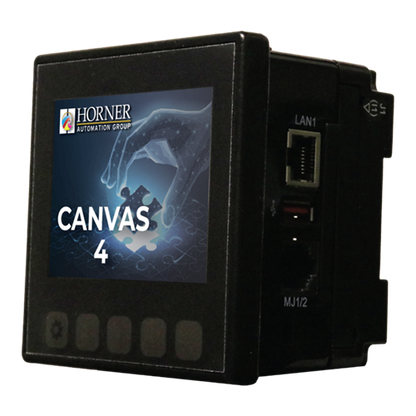

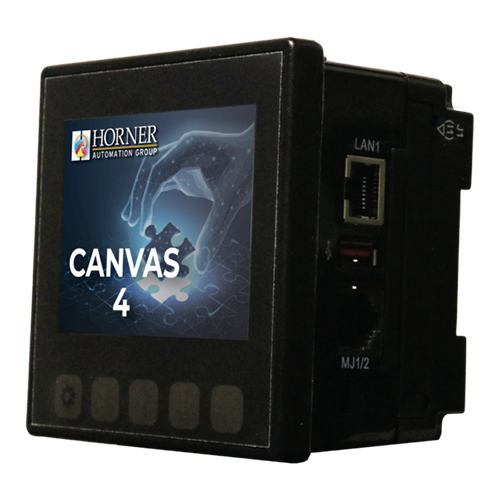

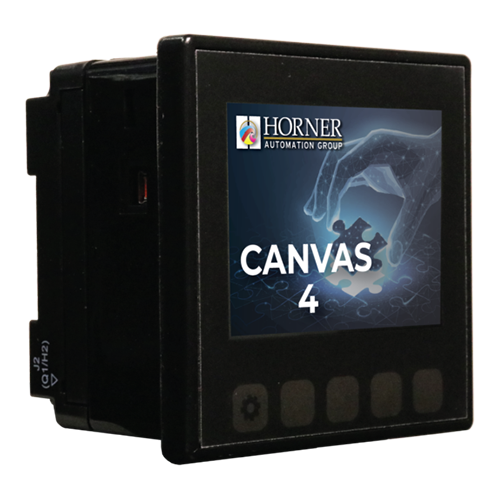

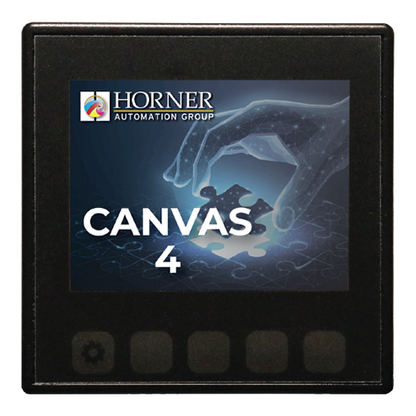

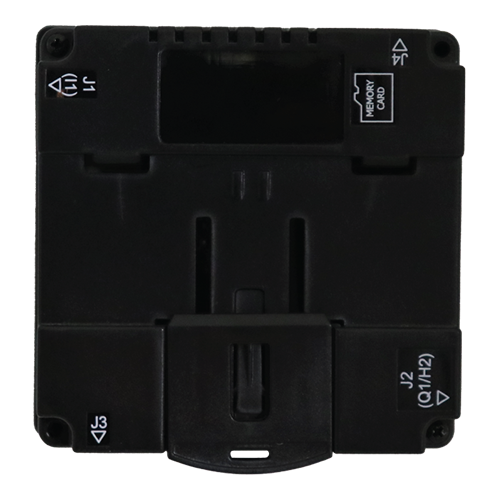

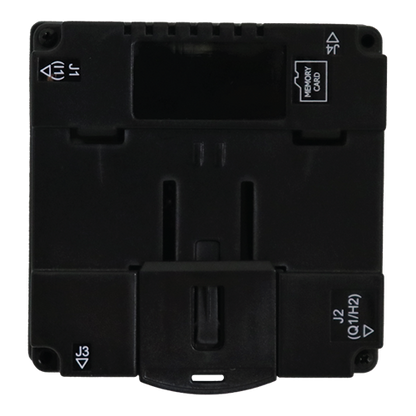

The Canvas 4 OCS Series, from Horner Automation, are all-in-one industrial control devices that includes: an HMI PLC as well as built-in I/O. They combine control, user interface, I/O and also networking into a single, integrated package. Unique features of the Canvas 4 OCS include:
- display of complex graphical objects including trends, gauges, meters, and animations
- high-performance graphic processing

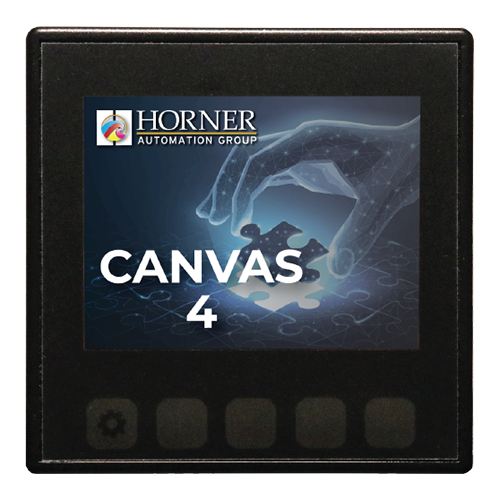

- bright, 65,536 color graphical touch-sensing LCD display or a bright white touch-sensing LED backlit display capable of up to 16,777,216 colors
- advanced control capabilities including floating point, multiple auto-tuning PID loops, and also string handling capabilities
- all Canvas models include WebMI+, MQTT, Enhanced IEC, and also SAE J1939 features included as standard
Advanced Features of the Canvas 4 All-in-one HMI PLC

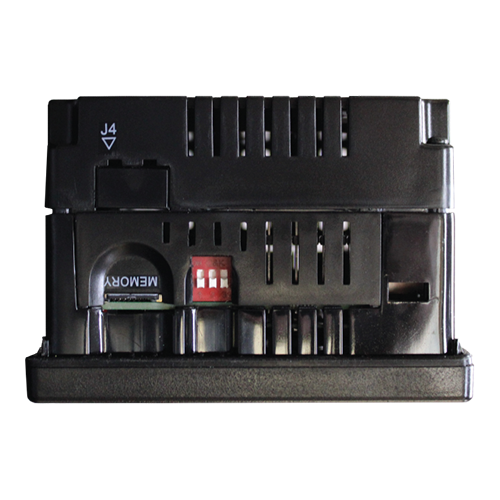

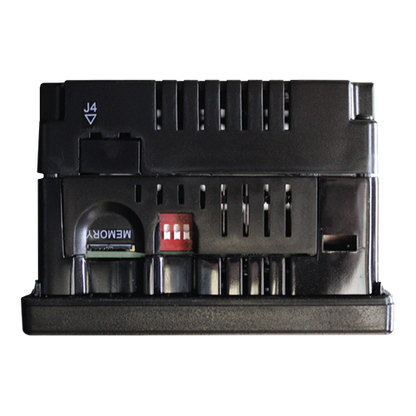

- removable media for 32 gigabytes of storage of programs, data logging, as well as screen captures
- CsCAN networking port for communication with remote I/O, other controllers, or PCs

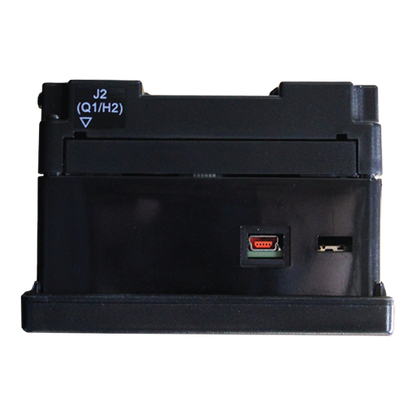

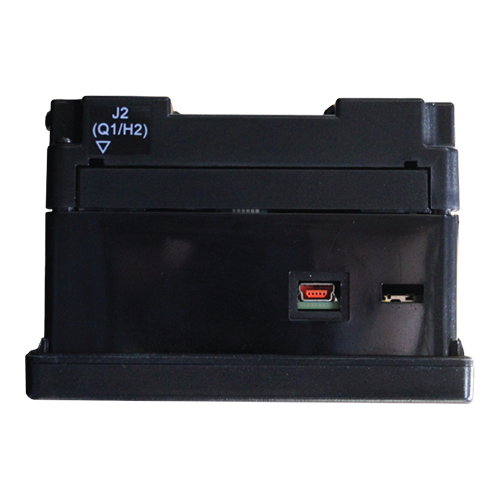

- USB port for communication with PCs as well as for the programming of the HMI PLC
- configurable serial protocols for communication to drives, PLCs, or also other serial peripherals
- full featured HMI PLC, built-in I/O including high resolution analog, thermocouple, RTD, high-speed counters, PWM outputs, and relays (depending upon the Canvas 4 OCS model)
- advanced high-speed I/O capabilities
- Cscape programming software that allows all aspects of the Canvas 4 OCS to be programmed and also configured from one integrated application
- transflective screen models ending in -500 have heaters and are equivalent to the environmental specifications of the standard Canvas 4 -22 models
- transflective screen HMI PLC models ending in -108 do not have heaters, however they have equivalent environmental specifications to the standard Canvas 4 models (without dashes)
- optional communication add-on modules

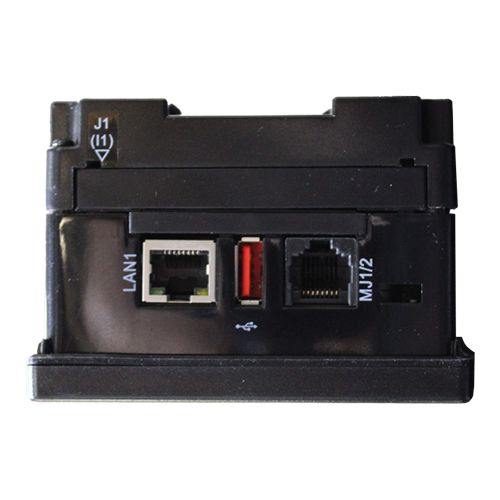

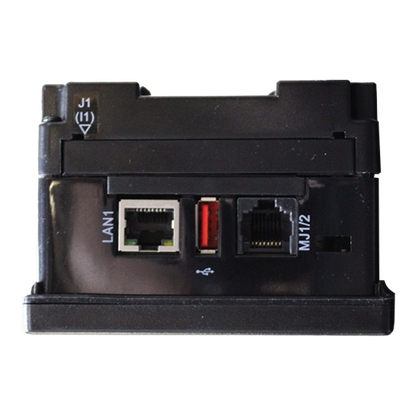

- on board Ethernet port (10/100Mbps) for Cscape programming as well as application defined communication, with Auto MDI/MDI-X
Networking Capabilities of the Canvas 4 HMI PLC All-in-One Automation Controller
- (1) built-in 10/100 Ethernet port

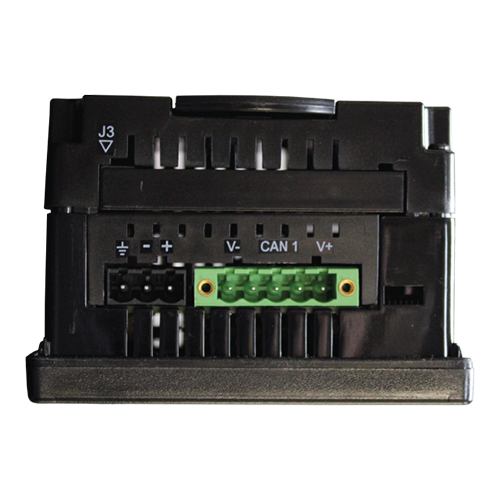

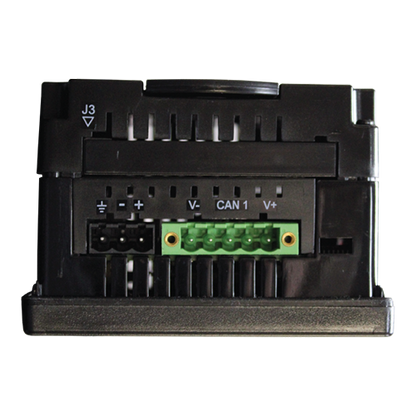

- (1) integrated CAN port that supports either CsCAN, CANopen, SAE J1939, or DeviceNet Scanner
Standard Models of the Canvas 4 HMI PLC
| Model ID | Configuration |
|---|---|
| Model 0: HE-CV-035C-00 | No built-in I/O |
| Model 2: HE-CV-035C-02 | 12 DC in, 6 Relay Out, 4 – 12-bit Analog In |
| Model 3: HE-CV-035C-03 | 12 DC in, 12 DC Out, 2 – 12-bit Analog In |
| Model 4: HE-CV-035C-04 | 24 DC in, 16 DC Out, 2 – 12-bit Analog In |
| Model 5: HE-CV-035C-05 | 12 DC in, 12 DC Out, 2 – 14/16-bit Analog In (mA/V/Tc/mV/RTD), 2 – 12-bit Analog Out |
| Model 6: HE-CV-035C-06 | 12 DC in, 12 DC Out, 6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD), 4 – 12-bit Analog Out |
| All standard models and some special order options are available for purchase through our online store. For additional special order options (adders) not available online, please contact our sales team (281) 491-3833 or sales@psctexas.com for pricing, ordering, and lead time support. | |
Special Order Options (Adders)
| Part Number Extension | Description |
|---|---|
| -10* | Thermistor option; adds Thermistor Support for Analog Inputs 1 & 2; available on models 2, 3, and 4 only. |
| -14* | Thermistor option; Converts (4) Analog Inputs to Thermistor only; also removes mA/V support; available on model 2 only. |
| -22 | Adds Display Heater. |
| -602 | Adds Screw Type I/O Terminals; also removes spring type terminals; available on model 6 only. |
| -603 | Adds Display Heater + Screw Type I/O Terminals; also removes spring type terminals; available on model 6 only. |
| NOTE: Lead time on special order products is typically 4-6 weeks. | |
| *Not available for purchase on the web store; please contact us for ordering assistance. | |
