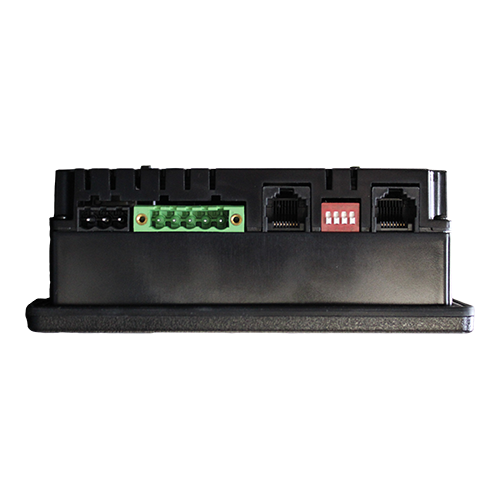

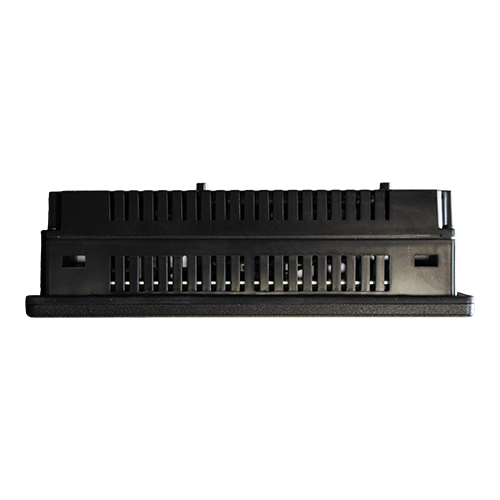

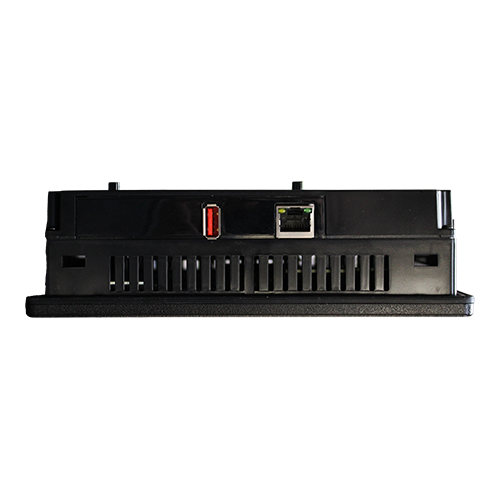

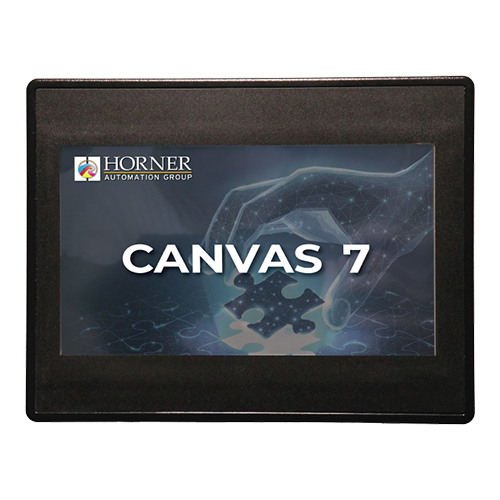

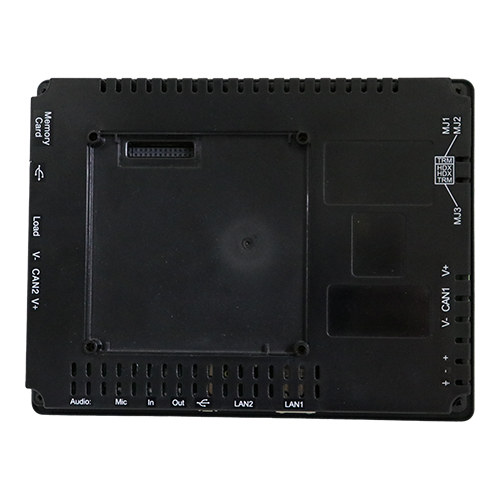

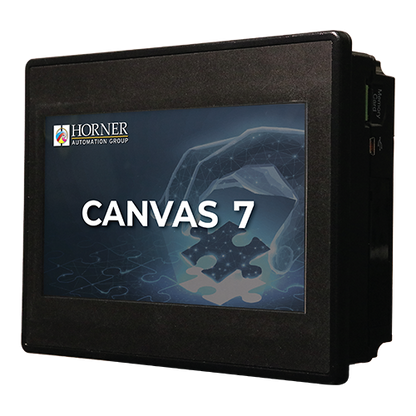

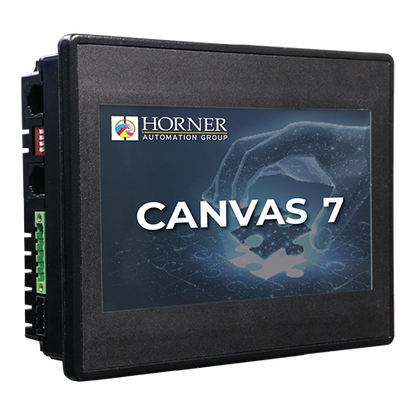

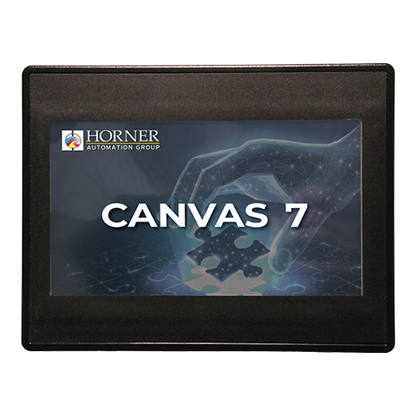

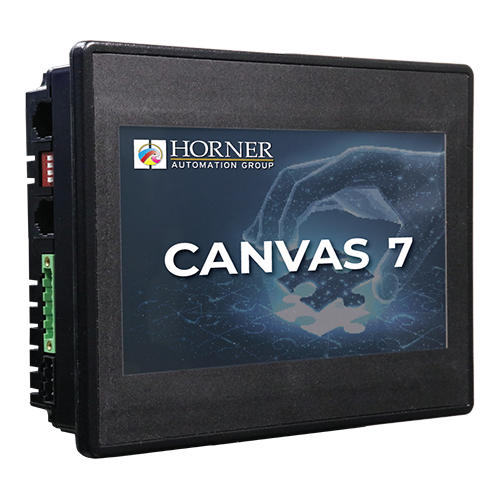

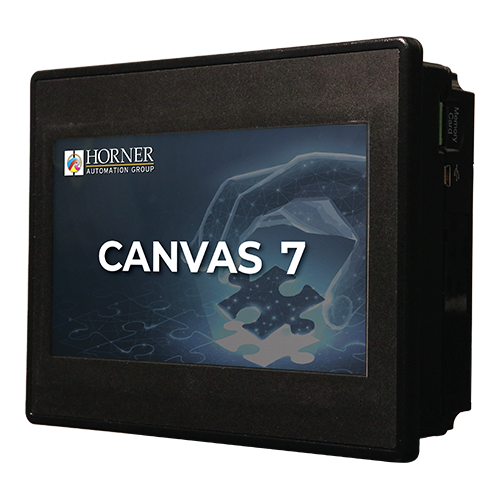

The Canvas 7 Series, from Horner Automation, are all-in-one industrial automation controllers. They combine control, user interface, I/O and networking into a single, integrated package. Unique features of the Canvas 7 OCS include:
- bright, 65,536 color graphical touch sensing LCD display in all models of Canvas 7
- display of complex graphical objects including trends, gauges, meters, as well as animations
- very high-performance graphic processing
- advanced control capabilities including floating point, multiple auto-tuning PID loops, and also string handling capabilities

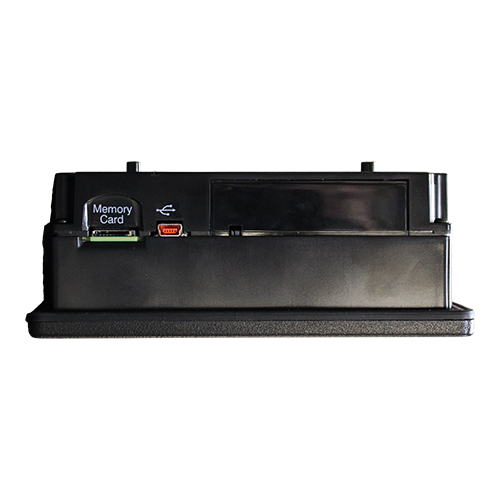

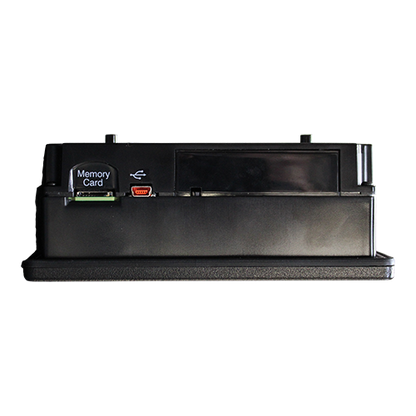

- removable media for 32GB of storage of programs, data logging, or screen captures
- CsCAN networking port for communication with remote I/O, other controllers, as well as PCs
- online programming and MQTT support, as well as improved WebMI features
- all Canvas models include WebMI+, MQTT, Enhanced IEC, and SAE J1939 features included as standard
Features of the Canvas 7 PLC/ HMI Automation Controller
- high speed USB port for communication with PCs and programming of controller
- configurable serial protocols for communication to drives, PLCs, as well as other serial peripherals
- full featured, built-in I/O including high resolution analog, thermocouple, RTD, high-speed counters, PWM outputs, and also relays (depending upon the Canvas 7 OCS model used)
- advanced high speed I/O capabilities
- free Cscape programming software from Horner Automation that allows all aspects of the Canvas 7 OCS to be programmed as well as configured from one integrated application
- optional communication add-on modules

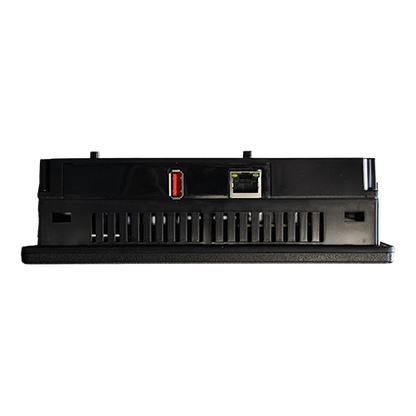

- two on board Ethernet ports (10/100Mbps) for Cscape programming and also application defined communication, with Auto MDI/MDI-X

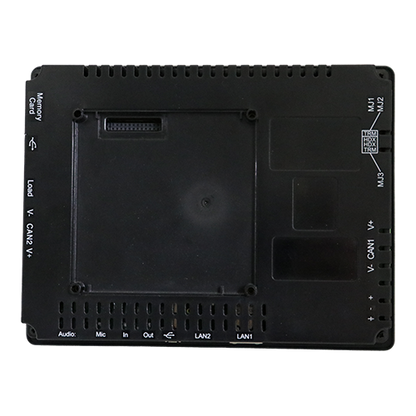

Networking Capabilities of the Canvas 7 from Horner Automation
- (1) Built-in 10/100 Ethernet port

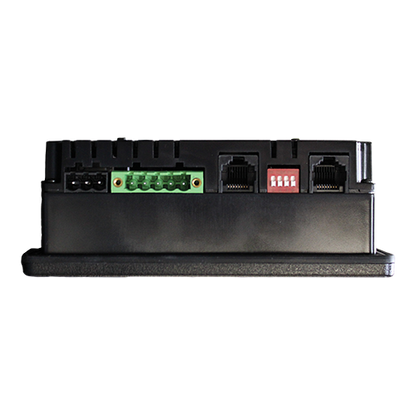

- (1) Integrated CAN port that supports either CsCAN, CANopen, SAE J1939, as well as DeviceNet Scanner
Standard Models of the Canvas 7 from Horner Automation
| Model ID | Configuration |
|---|---|
| Model 0: HE-CV-070C-00 | No built-in I/O |
| Model 2: HE-CV-070C-02 | 12 DC in, 6 Relay Out, 4 – 12-bit Analog In |
| Model 3: HE-CV-070C-03 | 12 DC in, 12 DC Out, 2 – 12-bit Analog In |
| Model 4: HE-CV-070C-04 | 24 DC in, 16 DC Out, 2 – 12-bit Analog In |
| Model 5: HE-CV-070C-05 | 12 DC in, 12 DC Out, 2 – 14/16-bit Analog In (mA/V/Tc/mV/RTD), 2 – 12-bit Analog Out |
| Model 6: HE-CV-070C-06 | 12 DC in, 12 DC Out, 6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD), 4 – 12-bit Analog Out |
| All standard models and some special order options are available for purchase through our online store. For additional special order options (adders) not available online, please contact our sales team (281) 491-3833 or sales@psctexas.com for pricing, ordering, and lead time support. | |
Special Order Options (Adders)
| Part Number Extension | Description |
|---|---|
| -10* | Thermistor option; add -10 to the part number for thermistor support for analog inputs 1 & 2; available on models 2, 3, and 4 only. |
| -14* | Thermistor option; add -14 to the part number for (4) channel thermistor support; available on model 2 only. |
| -602 | Add screw type I/O terminals; also removes spring type terminals; available on model 6 only. |
| NOTE: Lead time on special order products is typically 4-6 weeks. | |
| *Not available for purchase on the web store; please contact us for ordering assistance. | |
