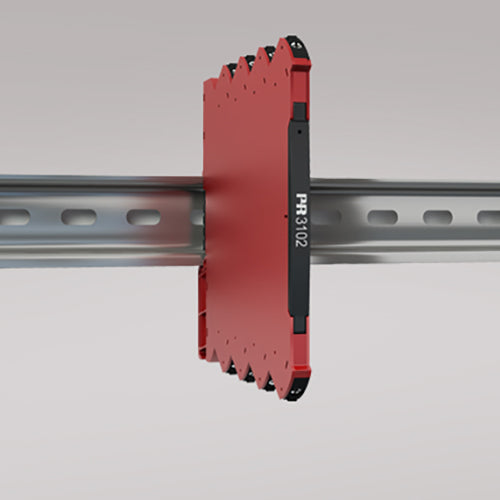

PR 3102 Pt100 Temperature Converter

The PR 3102 Pt100 temperature converter is a high-performance temperature signal conditioner engineered for precision and reliability in industrial environments. It accurately measures standard 2-, 3-, or 4-wire Pt100 RTD sensors and converts the temperature resistance into a clean, proportional analog current or voltage output for process control, monitoring, or automation systems. With conversion accuracy better than 0.1 % of span, the 3102 delivers dependable measurement fidelity you can trust.

The 3102 temperature converter, from PR electronics, measures a standard 2-, 3- or 4-wire Pt100 temperature sensor, and provides an analog voltage or current output. This Pt100 temperature converter can mount in the safe area or in Zone 2 / Division 2 hazardous areas. Furthermore, it features approval for marine applications.

• Temperature converter which measures a standard 2-, 3- or 4-wire Pt100 temperature sensor, and provides an analog current or voltage output signal.
• All terminals offer protection from over-voltage, polarity, and short-circuit.
• The 3102 Pt100 temperature converter can mount in Safe area or in Zone 2 / Division 2 areas and features approval for marine applications.

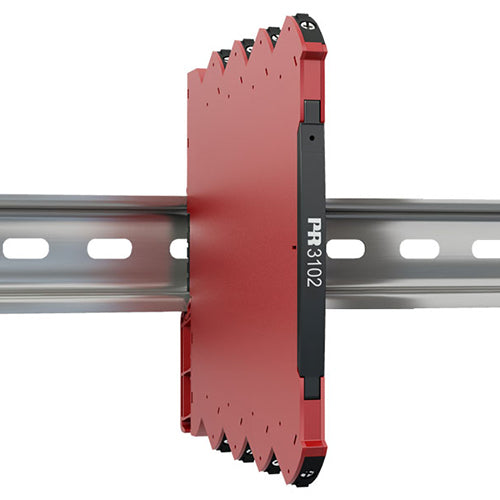

PR 3102 Pt100 Temperature Converter from PR electronics

Featuring a slim 6.1 mm DIN-rail mount housing, the PR 3102 Pt100 temperature converter maximizes cabinet space, allowing up to 163 converters per meter. Its flexible response time can be selected between a fast < 30 ms mode with sensor error detection and a damped 300 ms mode for noise-sensitive applications. Excellent EMC performance and 50/60 Hz noise suppression meet NAMUR NE21 recommendations, ensuring stable readings even in electrically harsh environments.

Durable protection includes over-voltage, reverse polarity, and short-circuit safeguarded terminals. A front green LED indicates normal operation and sensor status. The converter is suitable for safe area, Zone 2/Division 2, and marine installations. Simple DIP-switch configuration offers access to over 1,000 pre-calibrated temperature ranges, making setup quick and intuitive.

• Flexible 24 VDC (±30%) supply via connectors.
• Excellent conversion accuracy in all available ranges, better than 0.1% of span.
• < 30 ms fast response time with simultaneous sensor error detection when selected.
• Selectable 300 ms response time when signal dampening is necessary.
• Meeting the NAMUR NE21 recommendations, this device ensures top measurement performance in harsh EMC environments.
• The device meets the NAMUR NE43 standard defining out of range and sensor error output values.
• Excellent signal / noise ratio > 60 dB.
• A green front LED indicates normal operation, status of the input sensor and malfunction.
• Wide ambient temperature range: -13 to 158˚F (-25 to 70˚C).

Mounting, Installation, and Programming

• Easy configuration via DIP switches.
• Selectable DIP settings for easy configuration of more than 1000 factory calibrated measurement ranges.
• The narrow 6.1 mm housing allows up to 163 units per meter.
• Units can mount side by side, horizontally and vertically, without air gap on a standard DIN rail, even at 158˚F (70˚C) ambient temperature.
