PR 3185 Loop Power Isolator

The PR 3185 Loop Power Isolator is a compact, high-performance signal isolator that delivers reliable galvanic isolation for industrial 4–20 mA current loops without the need for an external power supply. Ideal for process control, automation, and instrumentation systems, the 3185, from PR electronics, ensures clean, accurate signal transmission by eliminating ground loops, suppressing transients, and reducing electrical noise that can compromise sensor and controller performance.

Featuring 1:1 isolation and conversion of standard current signals, this loop power isolator boasts excellent conversion accuracy of better than 0.1% as well as a fast response time of less than 5 ms. Thus, the PR 3185 is an ideal solution for dynamic industrial applications. Its low input voltage drop and high signal-to-noise ratio (> 60 dB) enhance stability and measurement integrity across extended wiring and also high-noise environments.

• High 4-port isolation provides surge suppression that protects the control system from transients and noise as well as eliminates ground loops.
• The device can mount in Safe area or in Zone 2 / Division 2 hazardous areas and features approval for marine applications.

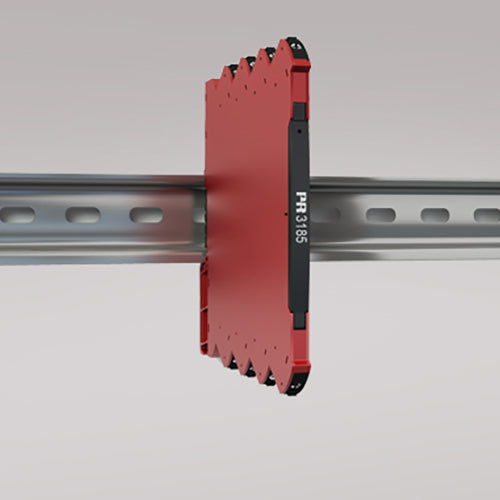

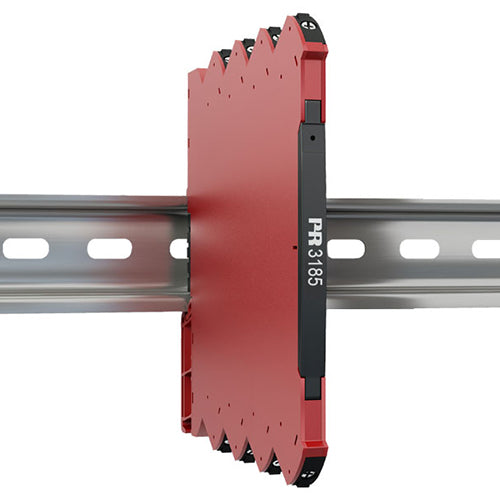

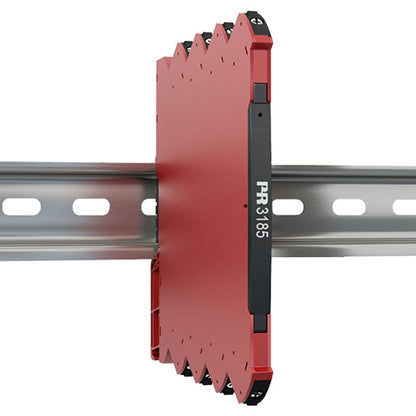

PR 3185 Loop Power Isolator from PR electronics

The slim 6.1 mm DIN-rail housing supports tight panel layouts with up to 163 units per meter, thus providing a space-saving solution for dense signal conditioning installations. High 4-port galvanic isolation (2.5 kVAC) and floating input/output architecture protect your system from interference while maintaining robust performance from -13 to 158˚F (-25 to 70˚C).

• Low input voltage drop, typ. 1.35 V + Vout.
• Excellent conversion accuracy, better than 0.1% in the range 0 to 20.5 mA.
• Fast response time < 5 ms.
• NAMUR NE21, NE43.
• Excellent signal/noise ratio > 60 dB.
• High galvanic isolation of 2.5 kVAC.
• Inputs and outputs are floating and galvanically separated.
• The output is voltage limited to 17.5 VDC.
• Wide ambient temperature range: -13 to 158˚F (-25 to 70˚C).

Easy Mounting, Programming, and Installation

Certified for safe areas as well as Zone 2/Division 2 and marine applications, the PR 3185 Loop Power Isolator delivers dependable, energy-efficient isolation for industrial and hazardous environments.

• The narrow 6.1 mm housing allows up to 163 units per meter.
• DIN rail mounting with up to 326 channels per meter.
• Units can mount side by side, horizontally, and vertically, without air gap on a standard DIN rail, even at 158˚F (70˚C) ambient temperature.
