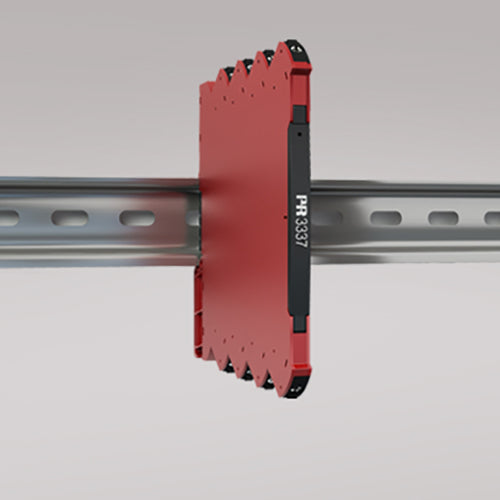

PR 3337 HART Temperature Converter

The PR 3337 HART Temperature Converter is a high-performance temperature converter ideal for industrial process control, automation, and instrumentation systems where accurate temperature measurement and digital communication are essential. This HART-compatible temperature converter accepts standard Pt100 RTD and thermocouple (TC J & K) sensor inputs. The 3337, from PR electronics, then provides both an isolated analog 4–20 mA output and a digital HART 7 communication signal for advanced diagnostics and configuration.

• The PR 3337 HART temperature converter measures a standard Pt100, TC J and K temperature sensor, and provides an isolated passive analog current as well as a HART signal output.
• High 2-port isolation provides surge suppression that protects the control system from transients and noise and eliminates ground loops.
• All terminals feature protection from over-voltage, polarity, and short-circuit.
• The device can mount in safe areas or in Zone 2 / Division 2 hazardous areas and features approval for marine applications.

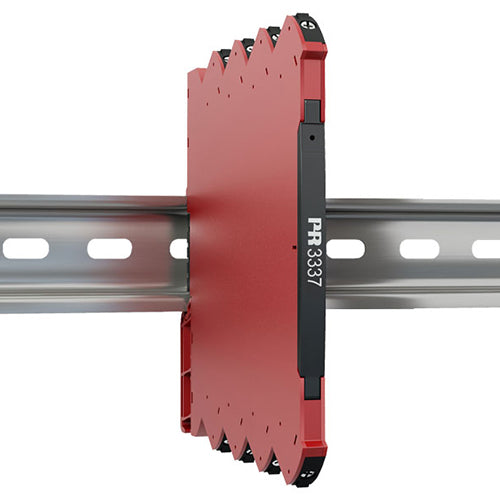

PR 3337 HART Temperature Converter from PR electronics

Built for demanding environments, the PR 3337 HART Temperature Converter delivers excellent conversion accuracy, better than 0.05 % of span, as well as selectable fast or damped response times (60 ms/60 s). Thus, the 3337 is ideal for responsive feedback in industrial control loops. Its robust 2-port galvanic isolation (2.5 kVAC) eliminates ground loops, suppresses noise and transients, and protects sensitive PLC, DCS, and SCADA inputs.

Featuring more than 1,000 pre-calibrated temperature ranges and selectable internal/external cold junction compensation, this loop-powered HART temperature converter offers flexible configuration with DIP switches or full HART read/write capability. The slim 6.1 mm DIN-rail housing supports high-density panel mounting, thus saving space in control cabinets. Furthermore, rugged terminal protection guards against over-voltage, polarity reversal, and short circuits.

• Flexibly loop-powered by 6.2 to 35 VDC via connectors.
• Excellent conversion accuracy in all available ranges, better than 0.05% of span.
• Selectable internal / external CJC.
• 60 ms fast response time with simultaneous sensor error detection when selected.
• Meeting the NAMUR NE21 recommendations, this device ensures top measurement performance in harsh EMC environments.
• The PR 3337 meets the NAMUR NE43 standard defining out of range and sensor error output values.
• Excellent signal / noise ratio > 60 dB.
• High galvanic isolation of 2.5 kVAC.
• Wide ambient temperature range: -13 to 158˚F (-25 to 70˚C).

Easy Mounting, Installation, and Programming

Suitable for safe areas and featuring certification for Zone 2 / Division 2 and marine applications, the 3337 ensures reliable performance across industrial, energy, wastewater, and chemical process environments. The 3337 delivers accurate temperature conversion with modern HART communication support.

• Selectable DIP-mode for easy configuration of more than 1000 factory calibrated measurement ranges with HART read only feature.
• Selectable HART mode with HART 7 revision protocol enables extended device programming.
• Selectable HART-mode to enable full HART read-write capability.
• The narrow 6.1 mm housing allows up to 163 units per meter.
• Units can mount side by side, horizontally, and vertically, without air gap on a standard DIN rail, even at 158˚F (70˚C) ambient temperature.
