PR 4114 Universal Transmitter

The PR 4114 Universal Transmitter is a rugged, high-precision industrial signal conditioning module for versatile process control and measurement applications. This multifunctional transmitter accepts a wide range of inputs, for example: RTDs, thermocouples (TC), resistance (Ohm), potentiometers, mA and voltage signals. Thus, the 4114, from PR electronics, is ideal for temperature measurement, sensor signal conversion, and process monitoring across industrial environments.

• Programmable by way of detachable display front (PR 4500 series).
• Process calibration, signal simulation, password protection, error diagnostics, and also help text available in several languages.
• Linearized, electronic temperature measurement with RTD or TC sensor.
• Conversion of linear resistance variation to a standard analog current / voltage signal, for example, from solenoids and butterfly valves or linear movements with attached potentiometer.
• Power supply and signal isolator for 2-wire transmitters.
• Process control with standard analog output.
• Galvanic separation of analog signals as well as measurement of floating signals.
• The PR 4114 Universal Transmitter provides the necessary failure data (SFF and PFDAVG) for SIL 2 applications as per IEC 61508 / IEC 61511.
• Failure rates for the PR 4114 correspond to Performance Level "d" according to ISO-13849.

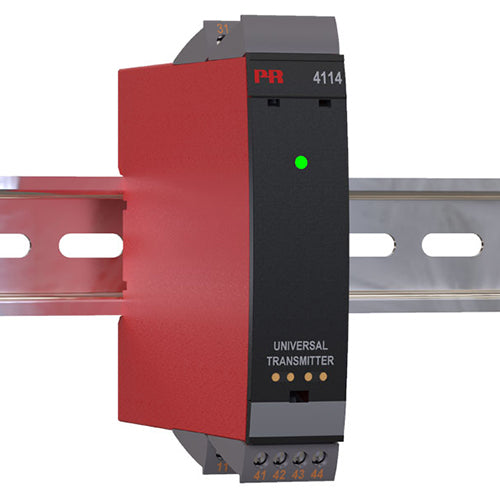

PR 4114 Universal Transmitter from PR electronics

Featuring universal AC/DC power compatibility and low power consumption, the PR 4114 Universal Transmitter fits seamlessly into existing process control systems and installations. Its current and voltage outputs deliver reliable standard analog signals for controllers as well as data acquisition systems. The PR 4114 Universal Transmitter features FM-approval for Division 2 hazardous locations and features robust galvanic isolation to protect against electrical noise and ensure signal integrity.

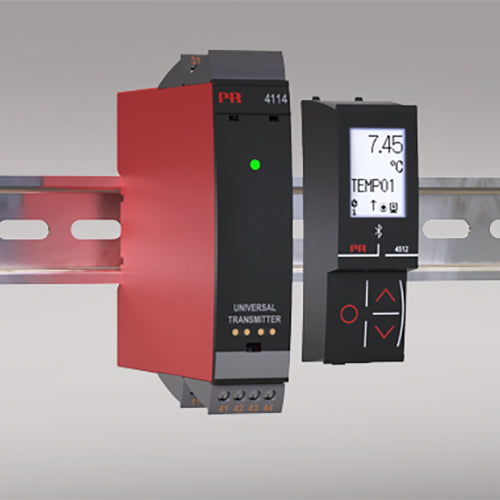

• When the PR 4114 is used with the PR 4500 display series, all operational parameters can be modified to suit any application.
• As the 4114 features electronic hardware switches, it isn't necessary to open the device for setting of DIP-switches.
• A green / red front LED indicates normal operation and malfunction.
• Continuous check of vital stored data for safety reasons.
• 3-port 2.3 kVAC galvanic isolation.

Easy Programming, Mounting, and Installation

Advanced programming flexibility arises through the detachable PR 4500 display front, thus allowing technicians to perform process calibration, simulate signals, and enable password protection without opening the device. With built-in error diagnostics, LED status indicators, and support for SIL 2 and PL "d" safety levels, the PR 4114 Universal Transmitter enhances reliability, reduces downtime, and also simplifies configuration for complex automation tasks.

• Features approval for marine applications.
