PR 5114A Programmable Transmitter

The PR 5114A Programmable Transmitter is a versatile and industrial-grade signal transmitter for precision measurement and control in process automation systems. With jumper-selectable inputs for RTD, thermocouple (TC), mV, linear resistance, mA, and voltage signals, the 5114A, from PR electronics, adapts to multiple sensor types and signal sources, thus reducing the need for separate devices and simplifying installations.

• The PR 5114 Programmable Transmitter can configure using the PReset software and the PR 5909 Loop Link communications unit.

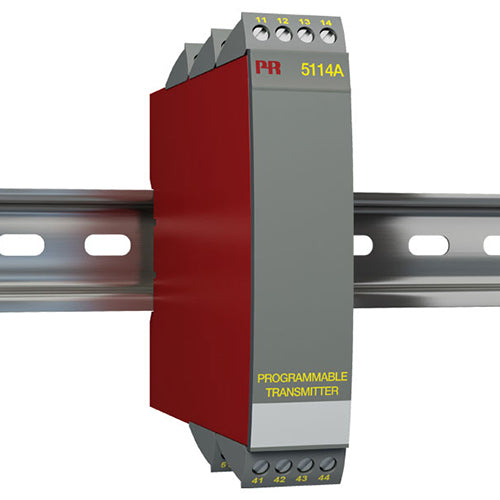

PR 5114A Programmable Transmitter from PR electronics

Featuring 3-port galvanic isolation at 3.75 kVAC, the PR 5114A Programmable Transmitter ensures electrical separation between inputs, outputs, and power circuits. Thus, the 5114A enhances system safety and protecting sensitive control equipment from interference. Furthermore, it supports both current and voltage outputs and delivers a robust universal power supply range, making it suitable for global industrial applications.

• Jumper selectable inputs for current/voltage or temperature.
• Programmable current (0-100 mA) and voltage (0-250 VDC) inputs.
• Linearized, electronic temperature measurement.
• Conversion of linear resistance variation, for example, from solenoids and butterfly valves or linear movements with attached potentiometer.
• 17.1 VDC loop and 2.5 VDC potentiometer supplies.
• Automatic 4- / 3-wire or programmable 2-wire cable compensation.
• Configurable sensor error detection including NAMUR NE43.

Easy Mounting, Installation, and Programming

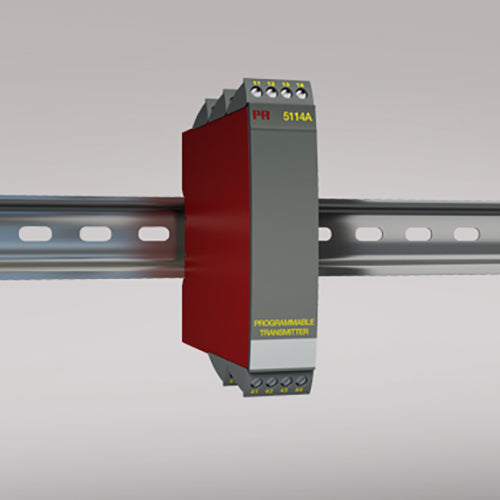

This programmable transmitter can configure using PReset software and a Loop Link communications interface, thus providing flexibility and precision tuning for specific project requirements. Applications include linearized temperature measurement, resistance conversion for position or valve feedback, as well as accurate analog signal transmission for process control loops. In addition, features include automatic cable compensation, configurable sensor error detection (including NAMUR NE43 compliance), and loop and potentiometer power supplies. Compact and DIN-rail mountable, the PR 5114A Programmable Transmitter delivers high performance, adaptability, and dependable signal fidelity for demanding industrial environments.

• Active or Passive current output and selectable voltage output.
• Separation of circuits in PELV/SELV installations.
• The PR 5114A features approval for marine applications.
