PR 5335 HART Temperature Transmitter

The PR 5335 HART Temperature Transmitter is a high-performance industrial temperature transmitter for accurate process monitoring and advanced communication. The 5335, from PR electronics, is compatible with RTD (Pt100-Pt1000, Ni100-Ni1000), thermocouple (TC), ohmic, and mV inputs. Furthermore, this versatile signal conditioning linearizes temperature signals and outputs a reliable 4-20 mA signal with integrated HART 5 communication protocol for flexible diagnostics and device configuration.

• Linearized temperature measurement with Pt100-Pt1000, Ni100-Ni1000, or thermocouple (TC) sensor.
• Difference or average temperature measurement of 2 resistance or TC sensors.
• Conversion of linear resistance variation to a standard analog current signal, for example, from valves or Ohmic level sensors.
• Amplification of a bipolar mV signal to a standard 4-20 mA current signal.
• Connection of up to 15 transmitters to a digital 2-wire signal with HART communication.
• Models in the 5335 Series are galvanically isolated as well as intrinsically safe and feature multiple, different certifications for use in hazardous areas, including, ATEX, CSA, and IECEx, and is suitable for use in marine applications.

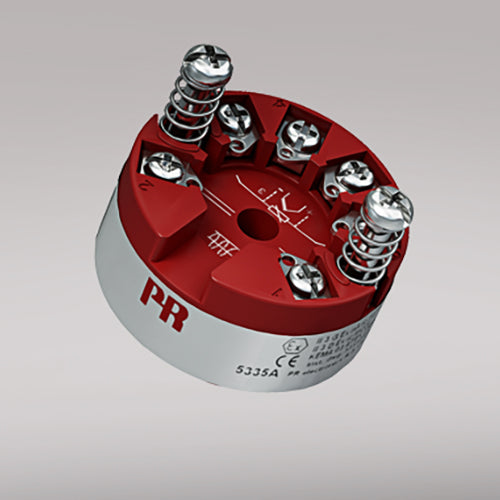

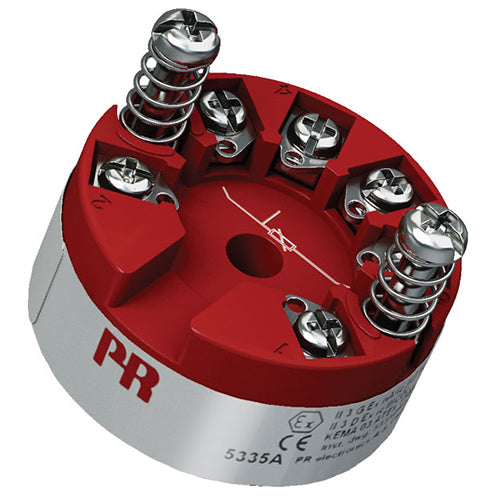

• Model PR 5335A is certified for hazardous areas Zone 2 / Div 2.

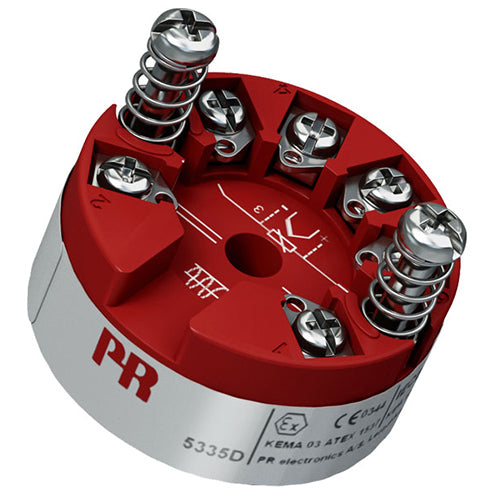

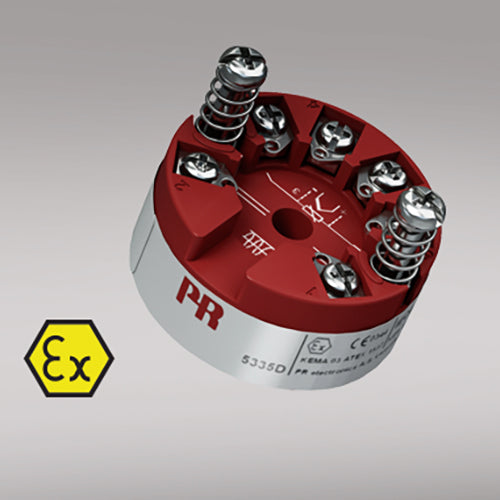

• Model PR 5335D also includes FM certification and is suitable for Zone 0, 1, 2, 21, 22, M1 / Div 1, Div 2.

PR 5335 HART Temperature Transmitter for Thermocouple from PR electronics

Ideal for modern industrial environments, the PR 5335 HART Temperature Transmitter offers extremely high measurement accuracy and programmable sensor error values. In addition, this head-mounted temperature transmitter performs continuous safety checks that improve reliability in demanding applications. With HART capability, users can connect up to 15 transmitters on a single digital 2-wire signal. Thus, the PR 5335 enables remote calibration, real-time diagnostics, and enhances process control without interrupting the analog signal.

• Within a few seconds, users can program the PR 5335 Series to measure temperatures within all ranges defined by the norms.
• The RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire connection.
• The 5335 Series provides the necessary failure data (SFF and PFDAVG) for SIL 2 applications as per IEC 61508 / IEC 61511.
• Continuous check of vital storage data for safety reasons.
• Sensor error detection according to the guidelines in NAMUR NE89.

Easy Mounting, Installation, and Programming

Suitable for DIN form B sensor head mounting, this loop-powered transmitter is ideal for HVAC, energy, automation, and manufacturing systems where dependable temperature measurement is essential. The 5335 Series also provides the necessary failure data for SIL 2 applications per IEC 61508/61511 and sensor error detection per NAMUR standards. Whether upgrading existing installations or specifying new industrial instrumentation, the PR 5335 Series delivers accurate, configurable, and communication-ready temperature measurement for today’s process systems.

• Ideal for DIN form B sensor head.
• Model 5335A is also suitable for DIN rail mounting with the fitting type PR 8421.
