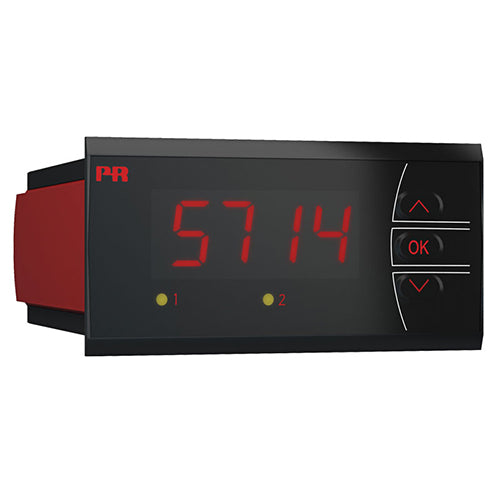

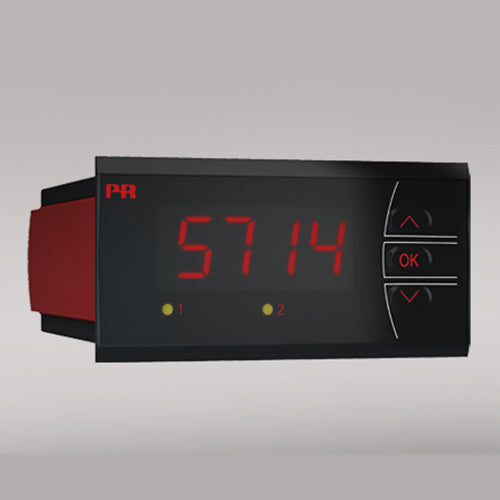

The PR 5714 Programmable Indicator is a versatile industrial display for digital process visualization and local signal readout in manufacturing, automation, and process control applications. Featuring a bright 4-digit, 14-segment LED display with a maximum readable range from -1999 to 9999, the 5714 Series, from PR electronics, provides clear presentation of current (mA), voltage (V), resistance (Ohm), temperature (RTD/TC), and potentiometer signals. Front key programming allows easy setup of scaling, decimal placement, as well as display configuration without specialized tools.
- Display for digital readout of current, voltage, resistance, temperature, or potentiometer signals.
- Process control with 2 potential-free relays and/or analog output.
- For local readout in extremely wet atmospheres with a PR 8335 splash-proof cover.
- Also available with PR 8501 Field Enclosure for extra protection.
PR 5714 Programmable Indicator from PR electronics
Built for rugged industrial environments, the PR 5714 programmable indicator offers options of two potential-free relay outputs and analog output for versatile process control and alarm signaling. Its universal mains supply (21.6-253 VAC or 19.2-300 VDC) ensures broad compatibility across global installations. With 2.3 kVAC galvanic isolation between input, output, and supply, the 5714 Series offers robust protection against electrical noise and ground loops.
- 4-digit LED indicator with 13.8 mm 14-segment characters.
- Maximum display readout -1999 to 9999 with programmable decimal point and relay ON / OFF indication.
- All standard operational parameters can adjust to any application by way of the front function keys.
- Help texts in eight languages selectable via a menu item.
- The PR 5714 Series is available fully-configured according to specifications ready for process control and visualization.
- 2.3 kVAC galvanic isolation between input, output and supply.
- In versions with relay outputs, the user can minimize the installation test time by activating / deactivating each relay independently of the input signal.
- Features DNV Marine certification for marine applications.
Easy Mounting, Programming, and Installation
Ideal for panel-front mounting, the PR 5714 programmable indicator delivers IP65/Type 4X protection with the included gasket and optional splash-proof cover, thus making it suitable for humid or wash-down environments. The LED display supports multilingual help texts to streamline configuration in global facilities. Whether for industrial automation, water/wastewater treatment, or energy monitoring, the 5714 Series delivers accurate, dependable signal indication and control.
- For mounting in panel front.
- The included rubber packing must mount between the panel cutout hole and the display front to obtain a protection degree of IP65 (type 4X).
- For extra protection in extreme environments, the PR 5714 Series arrives with a special splash-proof cover accessory.
Models of the PR 5714 Programmable Indicator
| Model ID | Configuration |
|---|---|
| PR 5714A | Universal Input; 4-Digit; Isolated. |
| PR 5714B | Universal Input; 4-Digit; Isolated; 2 SPDT Relay Outputs. |
| PR 5714C | Universal Input; 4-Digit; Isolated; mA Output. |
| PR 5714D | Universal Input; 4-Digit; Isolated; mA Output; 2 SPDT Relay Outputs. |
Special Order Options (Adders)
| Part Number Extension | Description |
|---|---|

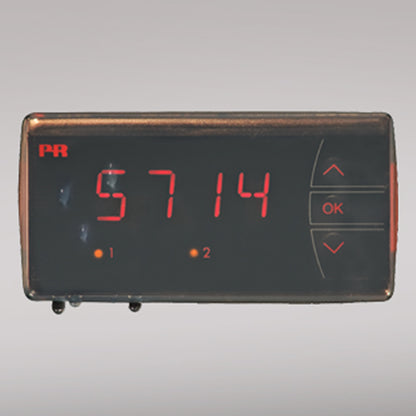

| PR 8335 | Splash-Proof Cover. |

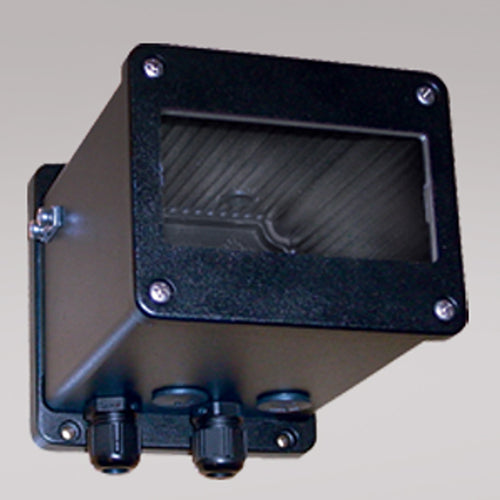

| PR 8501A | Field Enclosure; Aluminum; 1 Gland. |
| PR 8501B | Field Enclosure; Aluminum; 2 Glands. |
| PR 8501C | Field Enclosure; Aluminum; 3 Glands. |
| PR 8501D | Field Enclosure; Aluminum; 4 Glands. |
