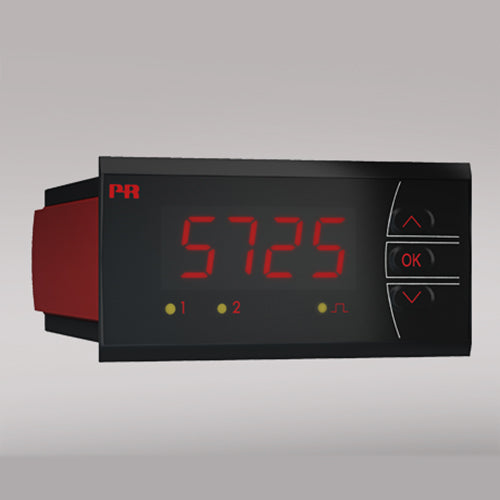

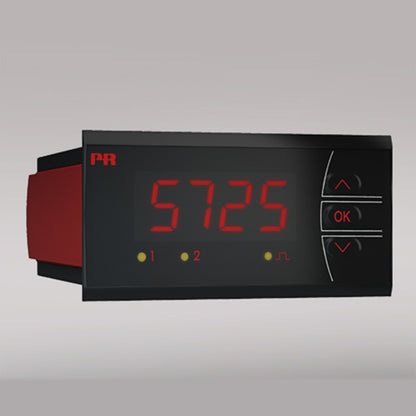

PR 5725 Programmable Frequency Indicator

The PR 5725 Programmable Frequency Indicator is a high-performance industrial display for accurate readout, scaling, and conversion of frequency and pulse signals from field sensors. This versatile frequency display indicator supports a wide input range from 0.001 Hz up to 50 kHz, thus making it ideal for speed measurement, flow rate monitoring, and period time analysis in manufacturing, water / wastewater, and automation systems. The 5725, from PR electronics, can accept signals from NPN/PNP, NAMUR, S0, tacho, and TTL sensor types. It then processes these signals into clear digital values on a bright 4-digit, 14-segment LED display scalable from -1999 to 9999.

• The PR 5725 measures, scales, and displays frequency signals found in many process speed and flow rate applications.
• This programmable frequency indicator can measure the period of the frequency, useful for displaying the elapsed time between events.
• The 5725D model has two SPDT setpoint contacts and a 0/4-20 mA output for process control.
• The display provides IP65 environmental sealing, and additional protection is provided by the optional PR 8335 splash-proof cover.
• Also available with PR 8501 Field Enclosure for extra protection.

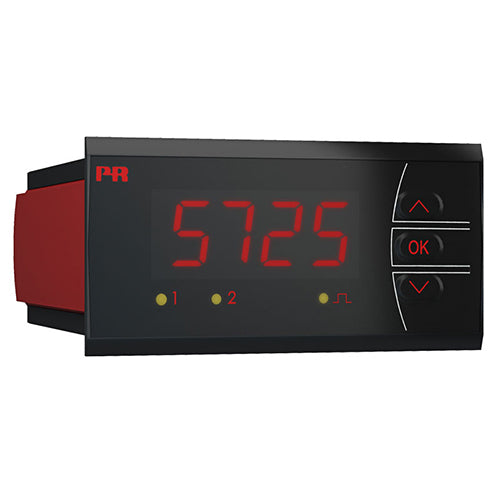

PR 5725 Programmable Frequency Indicator from PR electronics

Built with universal power input (21.6-253 VAC or 19.2-300 VDC) and robust IP65 front panel protection, the 5725 is suitable for harsh industrial environments. The 5725D model includes two SPDT relay outputs and a programmable 0/4-20 mA analog output for process control, alarm functions, or loop integration. With excellent accuracy (<0.05 % of range) and fast response, the PR 5725 Programmable Frequency Indicator is a dependable solution for frequency indication and control applications in industrial automation and process monitoring systems.

• 4-digit display with 13.8 mm high, 14-segment LED digits and adjustable decimal point.
• This Programmable Frequency Indicator is scalable from -1999 to 9999.
• Scrolling help text makes programming easy.
• Customizable trigger levels allow measurement of nearly any pulse sensor.
• Built-in excitation source for measuring NPN, PNP, NAMUR, and S0 sensors.
• Fast response time of 1 cycle + 100 ms, and excellent accuracy of better than 0.05% of selected range.
• The analog output current on the 5725D can be dampened from 0.1 to 60 seconds, and can handle up to 800 Ohms loop load.
• The 5725 meets NAMUR NE21 recommendations for high performance in harsh EMC environments.
• 2.3 kVAC galvanic isolation between input, output, and supply.
• Excellent signal/noise ratio of > 60dB.

Easy Mounting, Installation, and Programming

Its user-friendly front-panel programming with scrolling help text makes setup fast without tools, while 2.3 kVAC galvanic isolation between input, output, and supply ensures reliable performance in electrically noisy environments.

• Easy to mount 1/8 DIN (48x96 mm) panel meter with IP65 (type 4X) sealing.
• Features approval for marine applications.
• Fully push-button programmable.
• Password-protected.
