PR 5802 Compact RTD Temperature Transmitter

PR 5802 Compact RTD Temperature Transmitter

Upgrade your temperature measurement with the PR Electronics 5802 Compact RTD Temperature Transmitter. Delivering high-accuracy RTD to 4–20 mA conversion and broad sensor compatibility, it ensures dependable performance in industrial automation and process control systems. With programmable sensor error detection, cable compensation, and optional M12 connectivity, the 5802 combines precision, flexibility, and easy integration — perfect for control panels, PLCs, and advanced monitoring applications.
  • RTD or Ohm input
  • Accuracy: Better than 0.1% of selected range
  • 2-wire / 3-wire RTD connection
  • Programmable sensor error value
  • Output 4-20 mA, with or without M12 connector
$89.00 USD
$89.00 USD
Sale Sold out

5802A1A2
View full details

The PR 5802 Compact RTD Temperature Transmitter is a precise signal transmitter that converts resistance temperature detector (RTD) signals into a reliable 4-20 mA analog output for process control systems. With support for Pt100-Pt1000 and Ni100-Ni1000 RTD sensors, the 5802, from PR electronics, ensures accurate, linearized temperature measurement across demanding industrial environments.

  • Linearized temperature measurement with Pt100-Pt1000 or Ni100-Ni1000 sensors.
  • Conversion of linear resistance variation to a standard analog current signal.

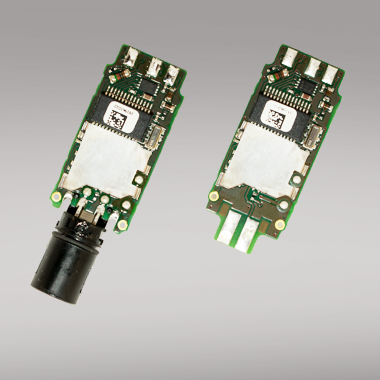

PR 5802 Compact RTD Temperature Transmitter from PR electronics

Featuring better than 0.1% accuracy of the selected range, the PR 5802 Compact RTD Temperature Transmitter delivers high-resolution temperature conversion. Furthermore, the 5802 is suitable for automation, HVAC systems, manufacturing plants, and energy monitoring applications. Its flexible 2-wire and 3-wire RTD input configuration with cable compensation improves signal integrity over long runs, thus reducing errors from lead resistance. Ideal for easy system integration, this temperature transmitter operates on a wide 8-35 V DC supply. In addition, it provides a standard 4-20 mA output compatible with PLCs, DCS, and SCADA platforms. Programmable sensor error values as well as NAMUR NE43 upscale/downscale fault signaling add robust diagnostic capabilities to enhance process safety and uptime.

  • Within a few seconds, users can program the PR 5802 Compact RTD Temperature Transmitter to measure temperatures within all RTD ranges defined by the norms.
  • The RTD and resistance inputs have cable compensation for 3-wire connection.



Easy Mounting and Installation

The tiny footprint of the PR 5802 and optional M12 connector make it perfect for tube mounting or custom housings where space is limited. With programmable response time and low power consumption, this RTD transmitter brings precise, reliable temperature measurement to industrial automation as well as control systems.

  • For tube mounting, for example, M18 barrel housing or customer specific housing.
  • The unit is tested with an M12 connector, mounted in a steel housing and molded with Silgel 612 silicone molding compound.
  • This is PR electronics' recommended method to comply with specifications and EMC data.

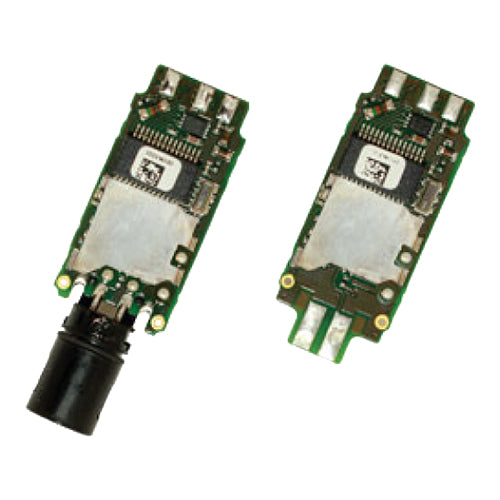

PR-5802-Compact-RTD-Temperature-Transmitter-PR-electronics-industrial-temperature-measurement-automation-process-solutions-corp-psc-texas

Models of the PR 5802 Compact RTD Temperature Transmitter

Model ID M12 Connector Output Pins Configuration
PR 5802A1A2 No Pin 1-2 RTD/Ohm Input, Loop-Powered; 4-20 mA Output; Tube Mounting.
PR 5802A1A3 No Pin 1-3 RTD/Ohm Input, Loop-Powered; 4-20 mA Output; Tube Mounting.
PR 5802A2A2 Yes Pin 1-2 RTD/Ohm Input, Loop-Powered; 4-20 mA Output; Tube Mounting.
PR 5802A2A3 Yes Pin 1-3 RTD/Ohm Input, Loop-Powered; 4-20 mA Output; Tube Mounting.
