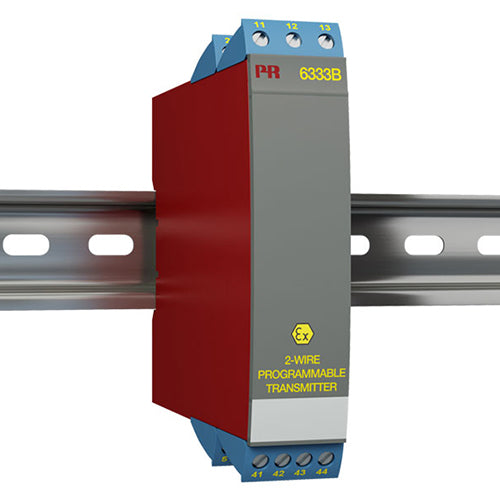

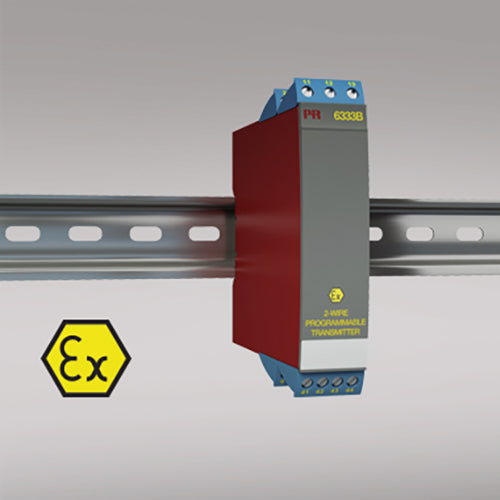

PR 6333 2-wire Programmable Transmitter

The PR 6333 2-wire Programmable Transmitter is a high-accuracy industrial temperature and resistance transmitter for modern process control and automation systems. This versatile DIN-rail temperature transmitter supports RTD (Pt100-Pt1000, Ni100-Ni1000) and linear resistance input, thus delivering precise, linearized 4-20 mA output signals compatible with PLCs, SCADA, and DCS platforms. With programmable settings and a robust design, the 6333 Series, from PR electronics, is ideal for demanding temperature measurement, level sensing, and position feedback in manufacturing, energy, and industrial applications.

• Linearized temperature measurement with Pt100-Pt1000 or Ni100-Ni1000 sensor.
• Conversion of linear resistance variation to a standard analog current signal, for example, from valves or Ohmic level sensors.
• Models in the 6333 Series are intrinsically safe and feature various certifications for use in hazardous areas.

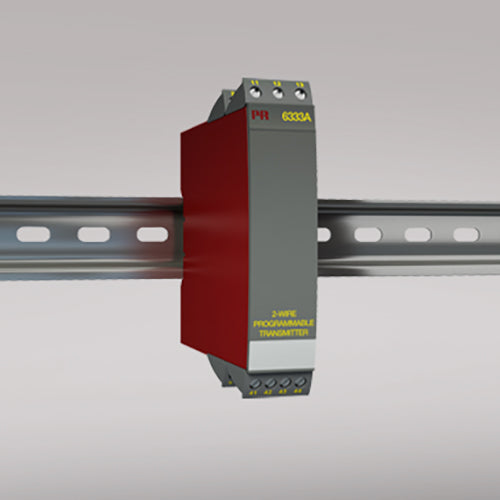

• Model PR 6333A has certification for mounting in Zone 2 and 22 / Class I, Div 2, Groups A, B, C, D.
• Model PR 6333B has certification for mounting in Zone 0, 1, 2, 21, 22, M1 / Class I, Div 1, Groups A, B, C, D.

PR 6333 2-wire Programmable Transmitter from PR electronics

Featuring programmable response time (0.33-60 s) and cable compensation for 3-wire connections, the PR 6333 ensures accurate readings even with long lead runs. Users can program sensor error indicators and output limiting via the PR Loop Link interface. Thus, the PR 6333 2-wire Programmable Transmitter enhances diagnostics and safety functionality. The transmitter delivers better than 0.1% accuracy of the selected range, a high signal-to-noise ratio, and stable performance across a wide 8-35 V DC supply range.

• Within a few seconds, users can program the PR 6333 2-wire programmable transmitter to measure temperatures within all RTD ranges defined by the norms.
• The RTD and resistance inputs have cable compensation for 3-wire connection.
• A limit can be programmed on the output signal.

Easy Mounting, Installation, and Programming

Featuring various certification for use in hazardous areas, the 6333 Series offers reliable operation in challenging industrial environments. Its compact design, flexible input compatibility, and comprehensive programming options make it an essential component for improving process accuracy and system reliability. With support for up to 2-channel versions, users can mount up to 84 channels per meter on standard DIN rails to maximize installation efficiency.

• Mounts vertically or horizontally on a DIN rail.
• Using the 2-channel version, users can mount up to 84 channels per meter.
