PR 6335 2-wire HART Transmitter

The PR 6335 2-wire HART Transmitter is a high-performance industrial temperature transmitter for precise temperature and resistance signal conversion in advanced process automation systems. The 6335 Series, from PR electronics, supports RTD (Pt100-Pt1000, Ni100-Ni1000), thermocouple (TC), linear resistance, as well as mV inputs. Furthermore, this versatile transmitter converts sensor signals into a standardized 4-20 mA output with integrated HART communication for efficient monitoring and control.

• Linearized temperature measurement with Pt100-Pt1000, Ni100-Ni1000, as well as TC sensors.
• Difference or average temperature measurement of 2 resistance (RTD) or TC sensors.
• Conversion of linear resistance variation to a standard analog current signal, for example, from valves or Ohmic level sensors.
• Amplification of a bipolar mV signal to a standard 4-20 mA current signal.
• Connection of up to 15 channels to a digital 2-wire signal with HART communication.
• Models in the 6335 Series are intrinsically safe, galvanically isolated, and feature various certifications for use in hazardous areas.

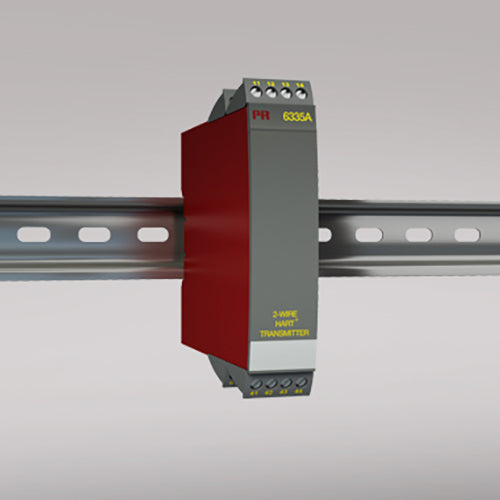

• Model PR 6335A has certification for mounting in Zone 2 and 22 / Class I, Div 2, Groups A, B, C, D.

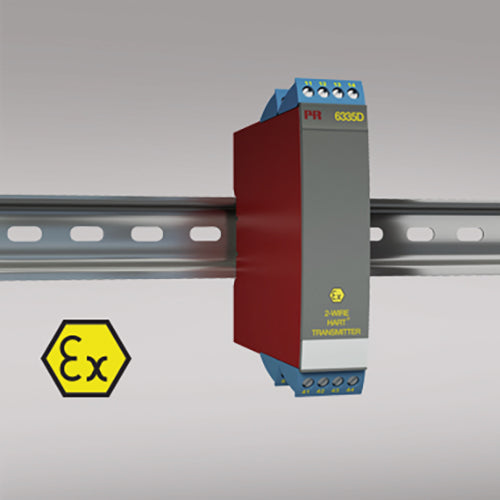

• Model PR 6335D has certification for mounting in Zone 0, 1, 2, 21, 22, M1 / Class I, II, III, Div 1, Groups A, B, C, D.

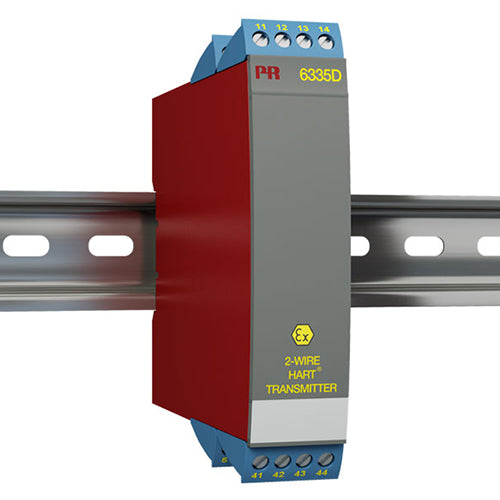

PR 6335 2-wire HART Transmitter from PR electronics

The PR 6335 offers HART 5 protocol support and galvanic isolation between input and output. Furthermore, the 6335 2-wire HART Transmitter delivers robust signal integrity and reliable data transmission even in electrically noisy industrial environments. This transmitter offers programmable response time (1-60s), sensor error detection compliance with NAMUR NE89, and cable compensation for 2-, 3-, or 4-wire configurations. Thus, the PR 6335 Series ensures accurate measurements with minimal wiring impact. With better than 0.05% accuracy of the selected range and support for differential or average temperature measurement, the 6335 Series fits a broad range of industrial applications including manufacturing, energy, chemical processing, HVAC, and automation systems.

• Within a few seconds, users can program the PR 6335 Series to measure temperatures within all ranges defined by the norms.
• RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire connection.
• The PR 6335 2-wire HART Transmitter provides the necessary failure data (SFF and PFDAVG) for SIL applications as per IEC 61508 / IEC 61511.
• A limit can be programmed on the output signal.
• Continuous check of vital storage data for safety reasons.
• Sensor error detection according to the guidelines in NAMUR NE89.

Easy Mounting, Installation, and Programming

Configuration and diagnostics are simple and use standard HART interfaces or the PR Loop Link communication tool. Thus, the PR 6335 2-wire HART Transmitter enables remote parameterization and real-time device insights for improving maintenance and uptime. With certification for installations in hazardous areas, this transmitter combines accuracy, connectivity, and durability for demanding industrial temperature measurement needs. Installation is flexible, mountable vertically or horizontally on standard DIN rails with up to 84 channels per meter for high-density panel layouts.

• Mounts vertically or horizontally on a DIN rail.
• Using the 2-channel version, users can mount up to 84 channels per meter.
• Configuration via standard HART communication interfaces or by PR 5909 Loop Link.
