PR 6437 DIN-Rail Temperature Transmitter

The PR 6437 DIN-Rail Temperature Transmitter is a high-performance industrial signal transmitter for precise temperature and also process measurement in automation systems. The 6437 Series, from PR electronics, offers flexible sensor support including RTD, thermocouple (TC), bipolar mV, linear resistance, and potentiometer inputs. As a result, the PR 6437 delivers accurate 4-20 mA output with HART 7 communication support for advanced diagnostics, remote configuration, and data access. Its wide compatibility makes this temperature transmitter ideal for integration with PLCs, DCS, and asset management software in manufacturing, energy, chemical processing, as well as HVAC environments.

• Temperature measurement of a wide range of thermocouple and RTD types.
• Conversion of wide span linear resistance and potentiometer inputs to 4-20 mA.
• Conversion of bipolar mV signals to 4-20 mA.
• Integration into asset management schemes.
• Ideal for critical applications requiring superior accuracy and/or sensor redundancy as well as drift detection.
• Models in the 6437 Series are intrinsically safe, galvanically isolated, and feature various certifications for use in hazardous areas.

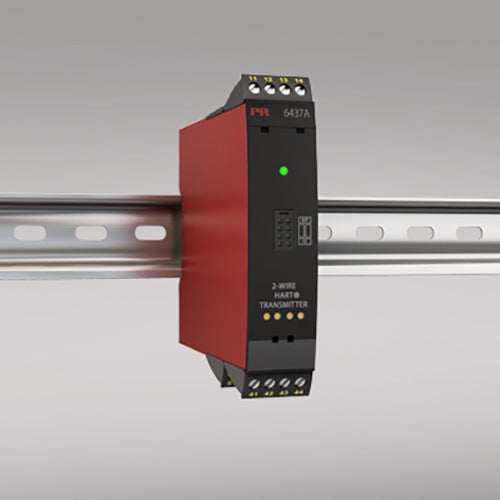

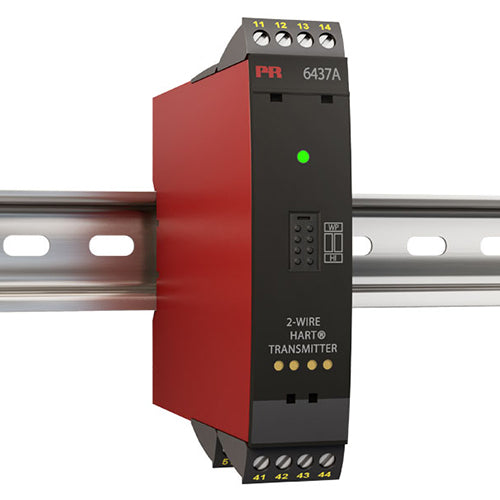

• Model PR 6437A has certification for mounting in Zone 2 and 22 / Class I, Div 2, Groups A, B, C, D.

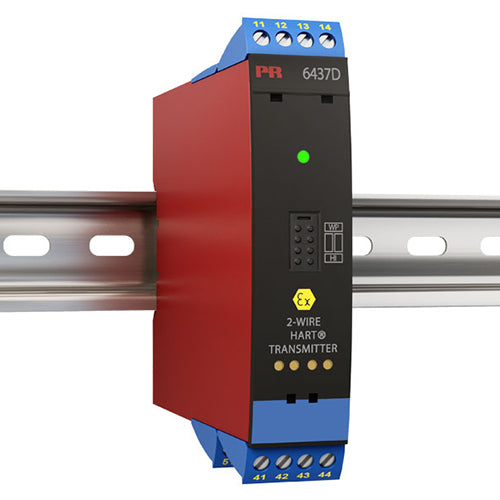

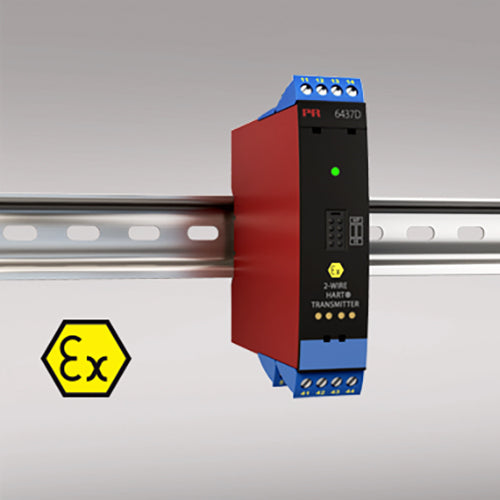

• Model PR 6437D has certification for mounting in Zone 0, 1, 2, 21, 22, M1 / Class I, Div 1, Groups A, B, C, D.

PR 6437 DIN-Rail Temperature Transmitter from PR electronics

The PR 6437 DIN-Rail temperature transmitter supports single or true dual inputs with sensor redundancy and drift detection. Thus, the 6437 Series ensures reliable measurement and improves uptime, even in critical applications. Dual input mapping options allow dynamic reporting of average, differential, minimum/maximum, and other process variables for enhancing control as well as analysis. This DIN-rail temperature transmitter features programmable damping (0-60s) and excellent signal-to-noise performance to deliver stable outputs under varying conditions.

• True dual input transmitter, accepts the widest range of dual input combinations.
• Sensor redundancy - output automatically switches to secondary sensor in event of primary sensor failure, thus maintaining uptime.
• Sensor drift detection - alerts when sensor differential exceeds user-defined limits for maintenance optimization.
• Dynamic variable mapping for process data in addition to the primary variable, for example: dual input features such as average, differential, and minimum/maximum tracking.
• Groundbreaking digital and analog signal accuracy over full input span as well as ambient conditions.
• Extensive sensor matching including Callendar Van Dusen in addition to custom linearization.
• Programmable input limits with runtime metering ensure maximum process traceability and also provide sensor out of range protection.
• IEC 61508: 2010 full assessment up to SIL 3 together with enhanced EMC Functional Safety testing to IEC 61236-3-1.

• Meets NAMUR NE21, NE43, NE44, NE89, and NE107 compliant diagnostics information.
• Failure rates for 6437xxSx correspond to Performance Level "d" according to ISO-13849.

Easy Mounting, Installation, and Programming

Able to withstand demanding industrial environments, the PR 6437 offers 2.5 kVAC galvanic isolation, complies with NAMUR NE21/NE43/NE44/NE89, and is also fully assessed to IEC 61508 SIL 2/3. As a result, the PR 6437 DIN-Rail Temperature Transmitter is suitable for safety-critical systems. With up to 84 channels per meter on DIN-rail mounts as well as configuration via HART or PR Loop Link, this transmitter combines precision, connectivity, and reliability for modern process control applications.

• DIN rail mounting with up to 84 inputs per meter.
• Configuration via PReset using the PR 5909 Loop Link /HART modem, or by Asset Management tool, for example: Pactware, AMS, HART communicator.
