PR 9107 HART Transparent Driver

The PR 9107 HART Transparent Driver is a high-performance industrial signal driver for precise control and reliable communication in process automation systems. The 9107, from PR electronics, is suitable for both single-channel and dual-channel applications. Furthermore, the PR 9107 Series delivers galvanically isolated 1:1 current driving capability, making it ideal for powering and controlling I/P converters, valves, and indicators in safe or hazardous areas. Its bi-directional HART transparency ensures seamless communication with HART-enabled field devices, thus allowing real-time diagnostics, configuration, and monitoring without signal loss or interference.

• Operation and drive control of I/P converters, valves, and indicators.
• Operation of HART devices is possible as the unit transmits HART communication signals bi-directionally.
• The PR 4500 Series displays the process value for each channel and can also define high and low limits for detection of loop current level. If these limits are exceeded, the status relay will activate.
• Dual channel versions can operate in signal splitter applications - 1 in and 2 out.
• Models in the 9107 Series are galvanically isolated, intrinsically safe, and feature various certifications for use in hazardous areas as well as marine applications.

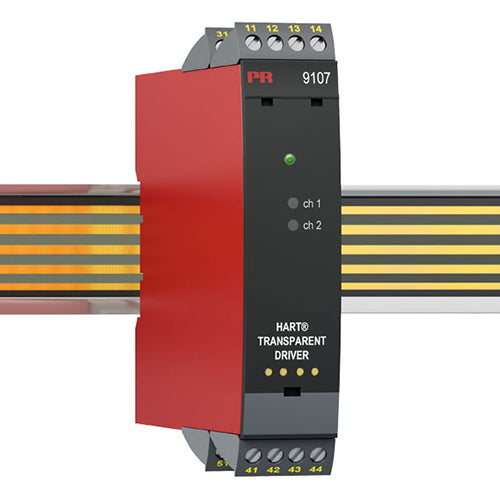

• Model PR 9107A
  • 1- or 2-channel isolated 1:1 driver.
  • Suitable for use in safe areas and can also mount in Zone 2 / Class I, Div 2, Groups A, B, C, D.

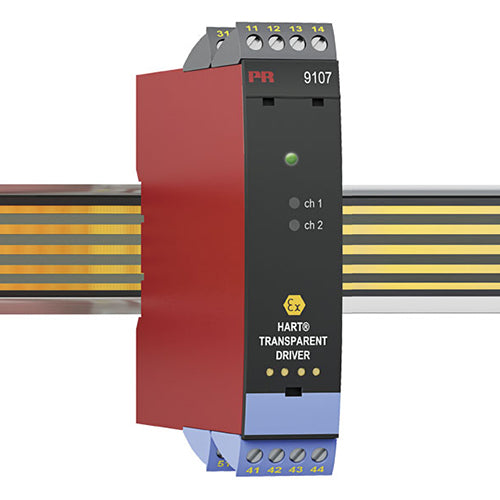

• Model PR 9107B

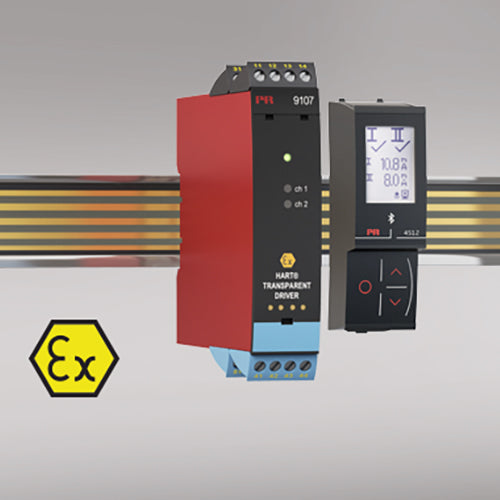

  • 1- or 2-channel isolated 1:1 driver barrier for intrinsic safety applications.
  • Mounts in Zone 2 / Class I, Div 2; it can also receive signals from Zone 0, 1, 2, 20, 21, 22, M1 / Class I, II, III, Div 1, Groups A, B, C, D, E, F, G.

PR 9107 HART Transparent Driver from PR electronics

The PR 9107 HART Transparent Driver features fast response times (< 5 ms), high load drive (725 Ω at 20 mA), and robust output line fault detection via status relay. Furthermore, the 9107 Series ensures dependable performance under industrial conditions. SIL 2 certification per IEC 61508 attests to its suitability in safety-related systems where functional reliability is critical.

• The PR 4500 detachable displays as well as the green and red front LEDs indicate operation status for each channel.
• A tag number can be defined for each channel.
• Output line fault detection.
• In the 1-channel version the status relay can be used as a simple limit switch.
• Failure rates for PR 9107 correspond to Performance Level "d" according to ISO-13849.
• High galvanic isolation of 2.6 kVAC.
• High accuracy better than 0.1%.
• Continuous check of vital storage data for safety reasons.

Easy Mounting, Installation, and Programming

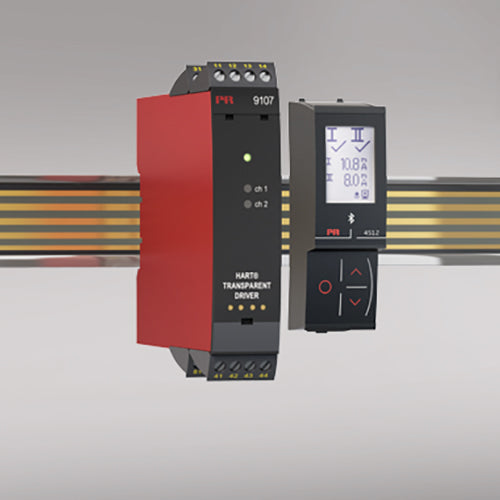

For added flexibility, a detachable PR 4500 display provides local process value indication and configurable loop current limits with alarm output. Dual-channel versions support splitter functionality, delivering a single input to two outputs for expanded system integration. Compact and DIN-rail mountable, the PR 9107 HART Transparent Driver blends safety, precision, and versatility. Thus, the 9107 Series optimizes control system architecture while enhancing operational uptime and HART communication continuity.

• The 9107 Series can mount vertically or horizontally without distance between neighboring units.
