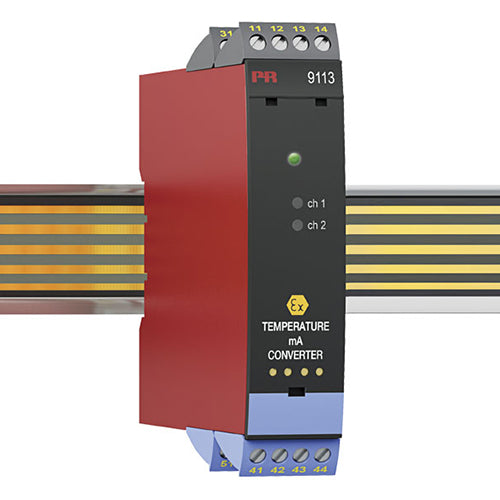

PR 9113-EMP mA Temperature Converter with EMPHASIS Assessment

The PR 9113-EMP mA Temperature Converter is a high-precision temperature to current signal converter with EMPHASIS assessment for the nuclear industry. The 9113-EMP is capable of accepting RTD, thermocouple (TC), and mA inputs. It provides accurate scaling and conversion to an active or passive 4-20 mA output via the same two terminals, thus simplifying wiring and enhancing signal reliability. The 9113-EMP Series, from PR electronics, supports one or two channels and can also be powered independently or mounted on a PR type 9400 power rail. As a result, this mA temperature converter offers vast installation flexibility for control panels and distributed systems alike.

• Configuration and monitoring by way of detachable PR 4500 Series display front; process calibration and signal simulation.
• Copying of the configuration from one device to others of the same type via the display front.

• Advanced monitoring of internal communication and storage data.
• SIL 2 functionality is optional and users can activate it in a menu point.
• Models in the 9113 are intrinsically safe and feature various certifications for use in hazardous areas as well as for marine applications.

• 1- or 2-channel isolated 1:1 driver barrier for intrinsic safety applications.
• Features EMPHASIS assessment and mounts in Zone 2 / Class I, Div 2, Groups A, B, C, D.
• TC inputs can use either the internal CJC or a terminal with a built-in Pt100 sensor (PR 5910Ex, channel 1 / PR 5913Ex, channel 2) for higher accuracy.

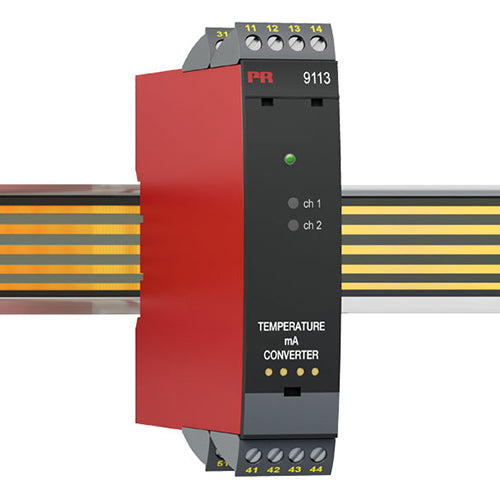

PR 9113-EMP mA Temperature Converter from PR electronics

Built for performance and robustness, the PR 9113-EMP mA Temperature Converter features programmable response time (1-60s), high-resolution signal conversion, and advanced self-monitoring capabilities. A detachable PR 4500 display enables local configuration, calibration, and signal simulation, thus helping technicians commission and maintain systems efficiently. The 9113 includes 2.6 kVAC galvanic isolation between input, output, and also supply to protect sensitive instrumentation from electrical noise and ground loops.

• Conversion and scaling of temperature (Pt, Ni, and TC) as well as active current signals.
• The PR 9113-EMP Temperature / mA Converter has certification for use in SIL 2 applications according to the requirements of IEC 61508.
• Failure rates for the PR 9113 correspond to Performance Level "d" according to ISO-13849.
• 1 green and 2 red front LEDs indicate operation status and also malfunction.
• 2.6 kVAC galvanic isolation between input, output, as well as supply.

Easy Mounting, Installation, and Programming

Featuring certification for use in SIL 2 safety applications per IEC 61508, the 9113-EMP is suitable for installation in safe areas as well as various hazardous location. Thus, the PR 9113-EMP Temperature / mA Converter supports critical temperature measurement and control loops in manufacturing, energy, chemical, and process industries. Its compact DIN-rail form factor and rugged construction make it a reliable choice for scalable, high-integrity signal conditioning.

• The PR 9113-EMP can mount vertically or horizontally without distance between neighboring units.
