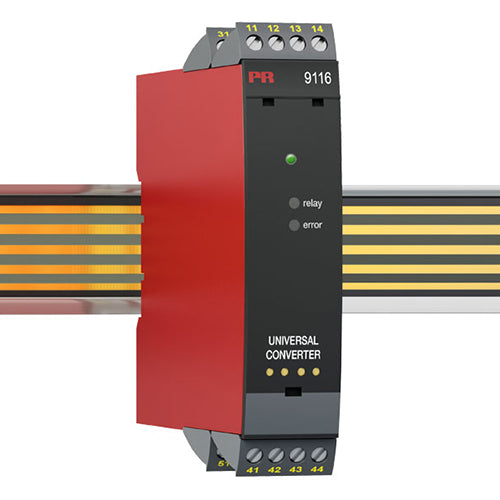

PR 9116 Universal Converter

The PR 9116 Universal Converter is a high-performance signal conditioning device for industrial process control and automation. The 9116, from PR electronics, is ideal for converting and scaling a wide range of inputs including RTD, thermocouple (TC), ohm, potentiometer, mA, as well as V signals. Furthermore, this universal converter delivers precise and reliable measurement conversion for temperature, voltage, and resistance inputs. It also provides a stable supply for 2-wire transmitters with active or passive mA outputs and integrated relay outputs for flexible control applications.

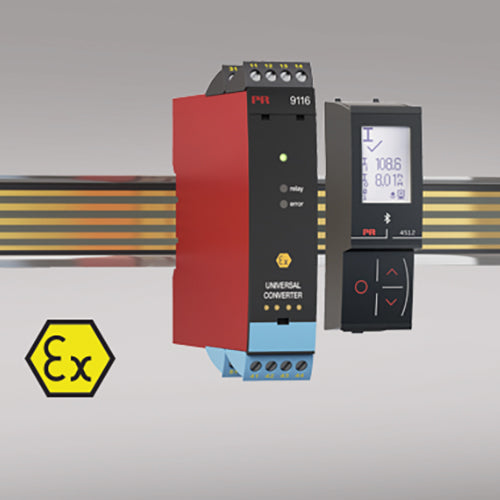

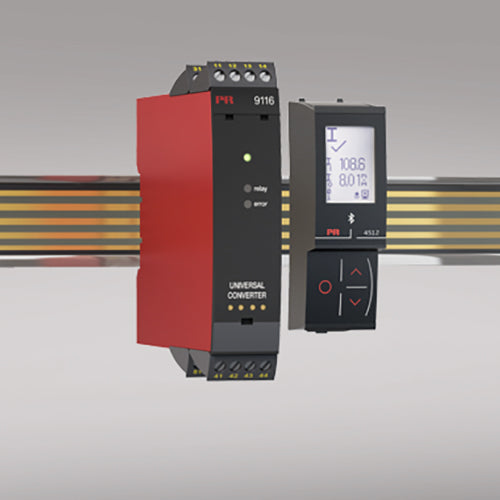

• Configuration and monitoring by way of detachable display front (PR 4500 Series) for process calibration in addition to signal and relay simulation.
• Advanced relay configuration, for example, setpoint, window, delay, sensor error indication, and power monitoring.
• Copying of the configuration from one device to others of the same type via the display front.
• TC inputs with internal CJC or external CJC for higher accuracy.
• Active / passive mA output via the same two terminals.

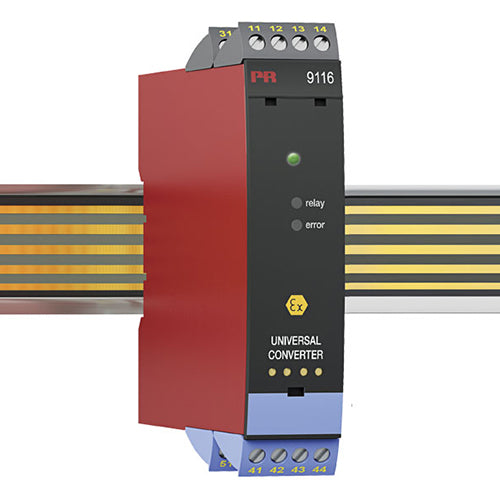

• Models in the 9116 Series are intrinsically safe and feature various certifications for use in hazardous areas as well as for marine applications.
• Model PR 9116A
  • Suitable for use in safe areas and can also mount in Zone 2 / Class I, Div 2, Groups A, B, C, D.

• Model PR 9116B
  • Mounts in Zone 2 / Class I, Div 2; it can also receive signals from Zone 0, 1, 2, 20, 21, 22, M1 / Class I, II, III, Div 1, Groups A, B, C, D, E, F, G.

  • Reduced Uo Ex data < 8.3 V for active input signals.

PR 9116 Universal Converter from PR electronics

The PR 9116 features robust galvanic isolation between input, output, and power as well as compact DIN-rail mounting compatibility. As a result, the PR 9116 Universal Converter is ideal for reliable signal processing in automation, energy, chemical, oil & gas, and manufacturing systems. Built for durability and accuracy, this versatile converter enhances control system performance while minimizing downtime and maintenance needs.

• Conversion and scaling of temperature, voltage, potentiometer, as well as linear resistance signals.
• Power supply and signal isolator for 2-wire transmitters.
• Monitoring of error events and cable breakage via the individual status relay and/or a collective electronic signal via the power rail.
• The PR 9116 Series has been designed, developed, and certified for use in SIL 2 applications according to the requirements of IEC 61508.
• Failure rates for the 9116 Series correspond to Performance Level "d" according to ISO-13849.

Easy Mounting, Installation, and Programming

Featuring certification for SIL 2 safety integrity, this universal converter meets stringent safety standards necessary in modern industrial environments. Easy configuration and monitoring are available via a detachable front display, thus allowing process calibration, signal simulation, and advanced relay logic setup.

• 1 green and 1 red front LED indicate operation status and malfunction.
• 1 yellow LED indicates relay status.
• 2.6 kVAC galvanic isolation between input, output, and supply.
• The PR 9116 Universal Converter can mount vertically or horizontally without distance between neighboring units.
