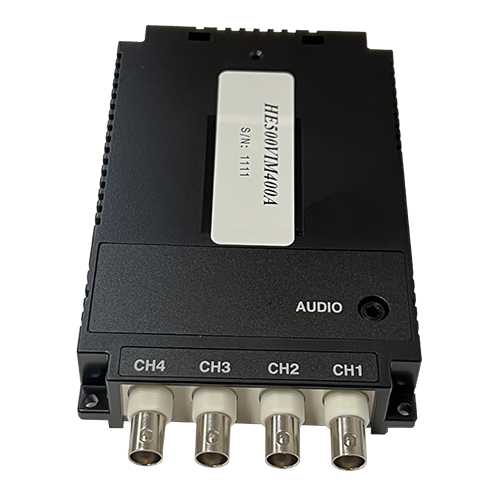

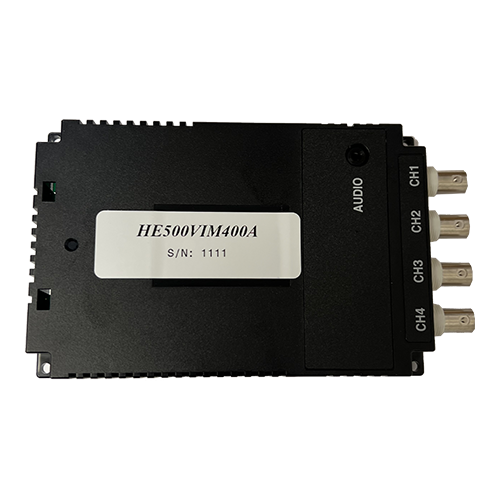

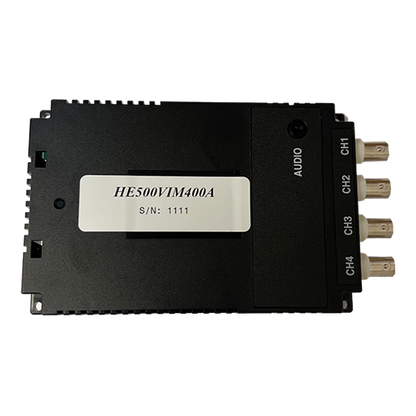

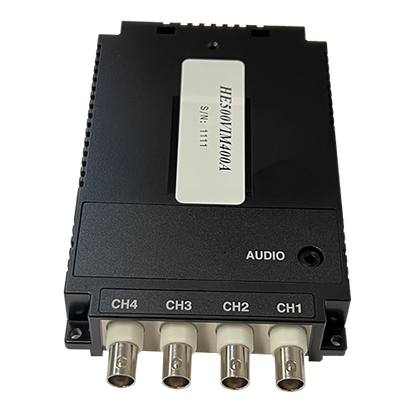

Compatible with the QX Series, the HE500VIM400 is a dedicated video input module that brings live visual feedback into Horner Automation controllers and operator interface systems. As an expansion accessory for compatible controllers, this module, from Horner Automation, enables up to four NTSC/PAL analog video sources (such as cameras, VCRs, or other video feeds) to be directly captured and displayed through your HMI. Featuring four BNC video input connectors, the HE500VIM400A is ideal for applications that require monitoring of production processes, safety zones, or machine status visually alongside real-time control and data. Integrating clear video feeds directly into your automation system enhances situational awareness and operator responsiveness without the need for separate display systems.
Video Input Module for Horner Automation Controllers

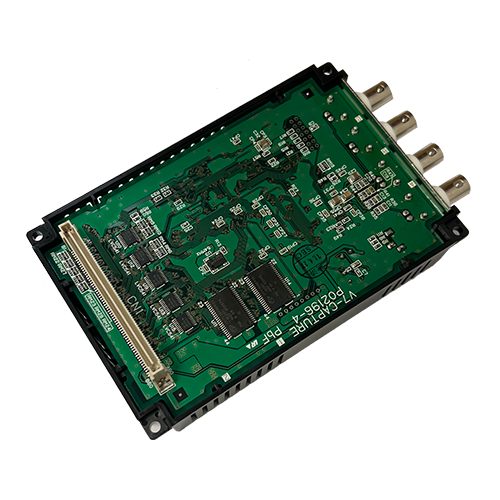

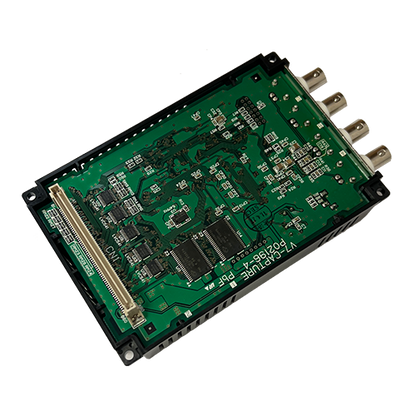

Integrating seamlessly with a Horner Automation controller, this video input card attaches easily into the system’s modular expansion architecture. Thus, it allows users to leverage existing controllers and interfaces to handle video alongside standard I/O and logic functions. The robust construction of this video input card suits demanding industrial environments and helps centralize control panel design by consolidating video and control in one system. Whether you’re enhancing machine safety monitoring, visual quality inspection, or remote process observation, the HE500VIM400A delivers reliable analog video input without requiring external converters or separate viewing stations. Its compatibility with standard NTSC and PAL formats ensures broad applicability across global installations.
Compatible with:
- HE-QX451 – 8.4" TFT SVGA Color Touch OCS (with back pack capable firmware)
- HE-QX551 – 10.4" TFT SVGA Color Touch OCS
- HE-QX651 – 12.1" TFT SVGA Color Touch OCS
- HE-QX451-16, HE-QX551-16, HE-QX651-16 – Older variants requiring firmware / back pack support
No Specification available
