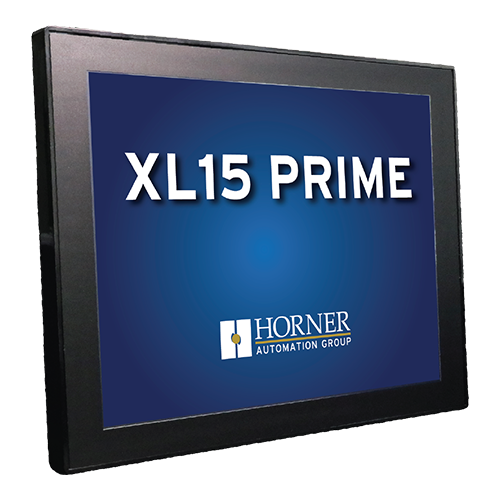

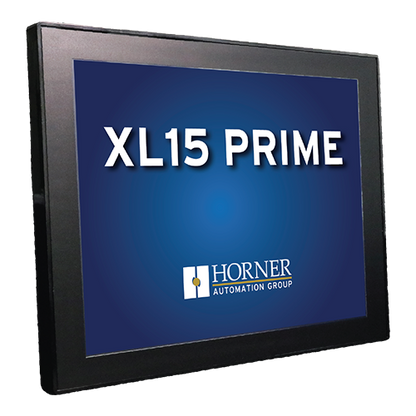

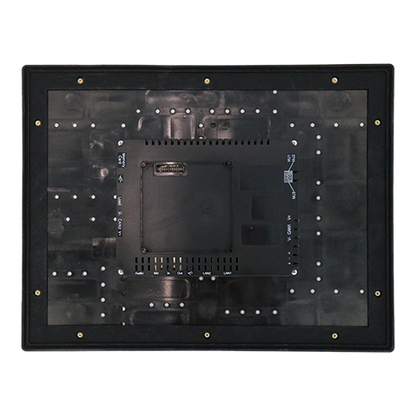

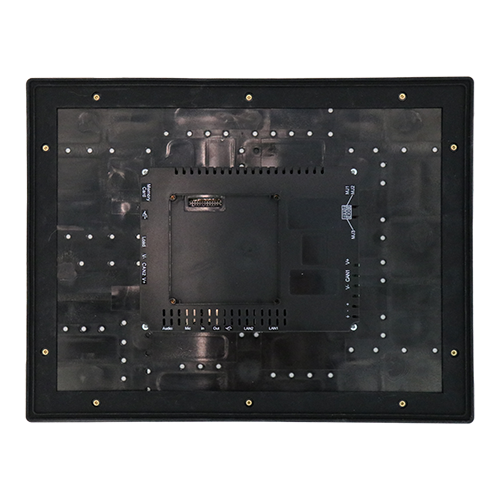

The XL15 Prime features a logic engine with 2MB of application memory and a 0.02 mS/K logic scan. With its Online Programming Mode, this automation controller, from Horner Automation, allows users to make logic changes on the fly without going through stop mode.
Operator Interface Features of the XL15 Prime Automation Controller
- 1024×768 LCD TFT color graphics display with a high resolution resistive touchscreen
- 7 virtual function keys and system key
- programming available via USB-C
- USB 2.0 Host port (A) is available for exchanging files with
- two (2) RS-232 / RS-485 ports to support RTU / Modbus Commander / Responder (Master / Slave), ASCII In / Out, and PLC / Drive downloadable protocols

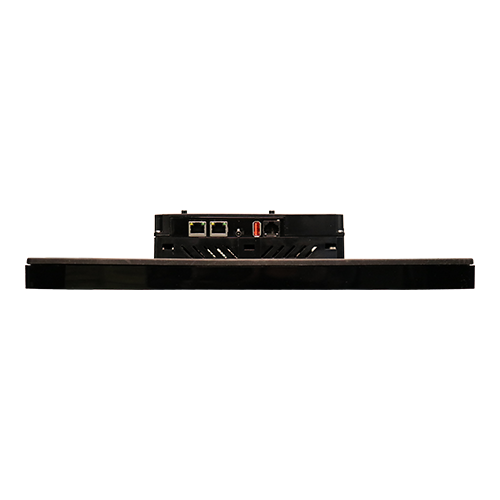

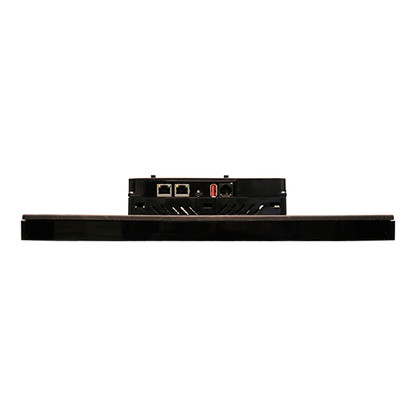

Networking Features
- two (2) built-in 10/100 Ethernet port
- two (2) integrated CAN ports that support CsCAN and either CANopen, SAE J1939, or DeviceNet Scanner simultaneously

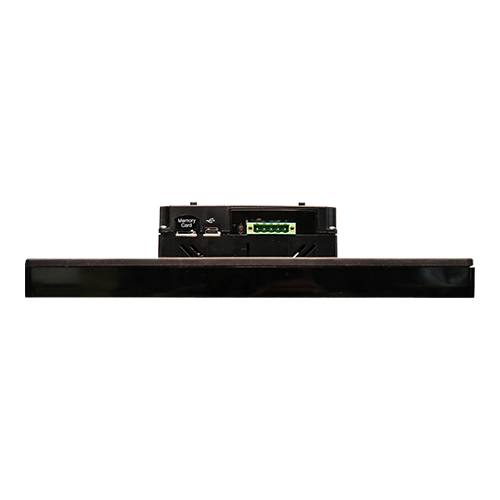

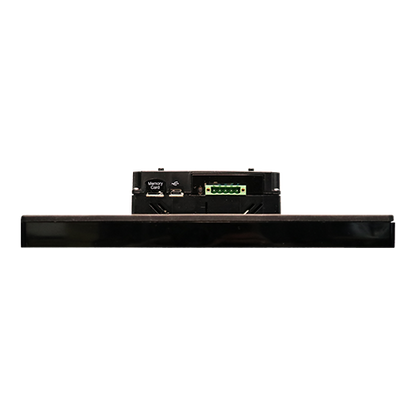

- all units feature a microSD slot, supporting at least 32GB
I/O Overview
The XL15 Prime is a compact automation controller that contains high density and very versatile I/O (input / output). Using the I/O properly requires wiring to the proper terminals, configuring jumpers inside the Horner OCS unit and configuring Cscape properly. The inputs are designed to support both positive and negative input modes. For many models, the mode is set by a jumper setting and a configuration parameter in Cscape. Furthermore, relay outputs are designed to switch loads that typically have high voltage or current requirements or require the isolation that relays provide.
|
 |
Standard Models of the XL15 Prime Automation Controller
| Model ID | Configuration |
|---|---|
| Model 0: HE-XP15E0 | No built-in I/O |
| Model 2: HE-XP15E2 | 12 DC in, 6 Relay Out, 4 – 12-bit Analog In |
| Model 3: HE-XP15E3 | 12 DC in, 12 DC Out, 2 – 12-bit Analog In |
| Model 4: HE-XP15E4 | 24 DC in, 16 DC Out, 2 – 12-bit Analog In |
| Model 5: HE-XP15E5 | 12 DC in, 12 DC Out, 2 – 14/16-bit Analog In (mA/V/Tc/mV/RTD), 2 – 12-bit Analog Out |
| Model 6: HE-XP15E6 | 12 DC in, 12 DC Out, 6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD), 4 – 12-bit Analog Out |
| Standard models are available from our online store. For special order options (below), please contact our sales team (281) 491-3833 or sales@psctexas.com for pricing as well as lead time support. | |
Special Order Options (Adders)
| Part Number Extension | Description |
|---|---|
| -10* | Thermistor option. Add -10 to the part number for Thermistor support for Analog Inputs 1 & 2. Available on models 2, 3, and 4 only. |
| -14* | Thermistor option. Add -14 to part number for (4) Channel Thermistor support. Available on model 2 only. |
| -441 | WebMI License Unlimited pre-loaded |
| -442 | Enhanced IEC License pre-loaded |
| -445 | MQTT License pre-loaded |
| -602* | Screw type I/O terminals. Replaces spring type terminals. Available on model 6 only. |
| NOTE: Lead time on special order products is typically 4-6 weeks. | |
| *Not available for purchase on the web store; please contact us for ordering assistance. | |
