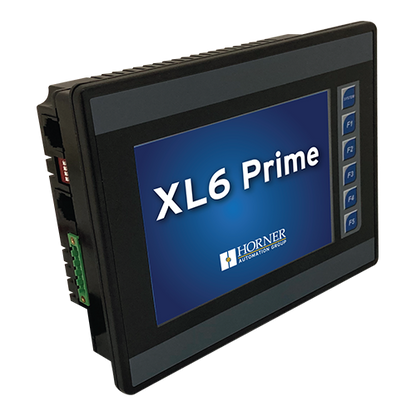

The XL Prime Series features all-in-one control and performs all machine functions in a unified hardware design: Logic Control, Operator Interface, I/O, and Networking. These HMI controllers are feature a modern memory architecture that relies a custom design SOM (System on Module), utilizing a powerful ARM microprocessor as well as 100% non-volatile memory for reliability. With high-performance logic engines, the XL6 Prime PLC controller, from Horner Automation, offers fast scan times, thus solving user logic using Variable-based Advanced Ladder logic or the IEC 6-1131 language set.
Online Programming and Remote Control
Online programming is made available through WebMI, MQTT Sparkplug, and the Horner App, which also allows for remote control and enables users to make logic changes without stopping the controller. Communication is based on EtherNet/IP, Modbus TCP, BACnet IP, FTP file transfer, in addition to email. Collected data can be logged for example, record machine and process variables, which can be saved to a microSD or USB Flash Drive.
Fast Processing and Response Time
The screen is a high-resolution color touchscreen that is capable of displaying detailed graphics and nearly instantaneous screen updates. Furthermore, the XL Prime Series PLC controller series includes an advanced high-speed counter with four built-in counters supporting frequencies over 500 kHz.
Advanced Features of XL6 Prime PLC Controller
Logic engine features 1MB of application memory with a 0.02mS/K logic scan and also supports an online programming mode for making logic changes on the fly without going thru stop mode.
Operator Interface for XL6 Prime HMI Automation Controller

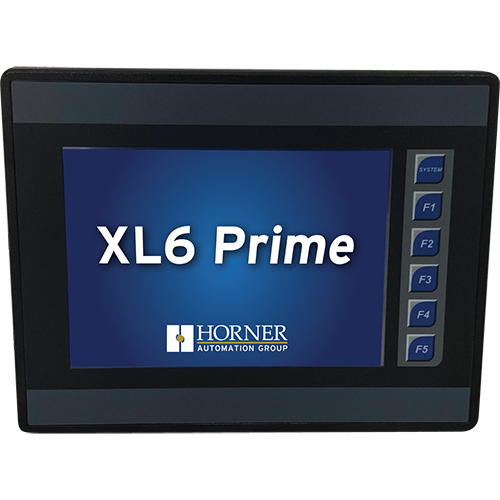

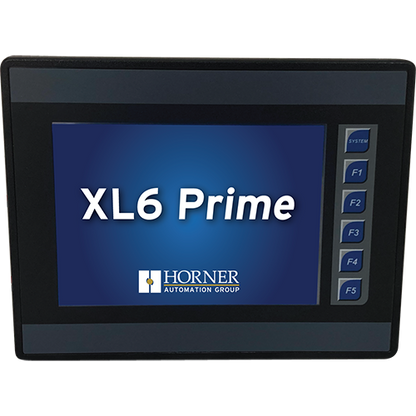

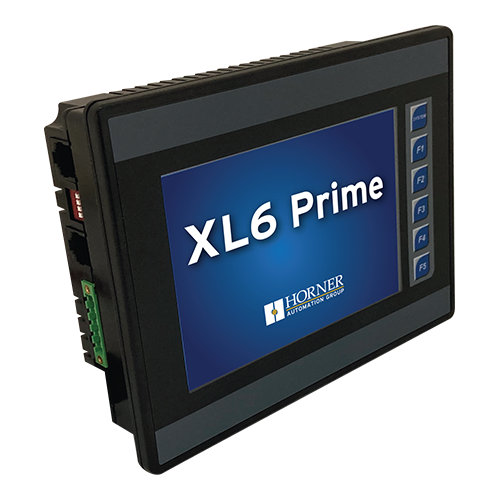

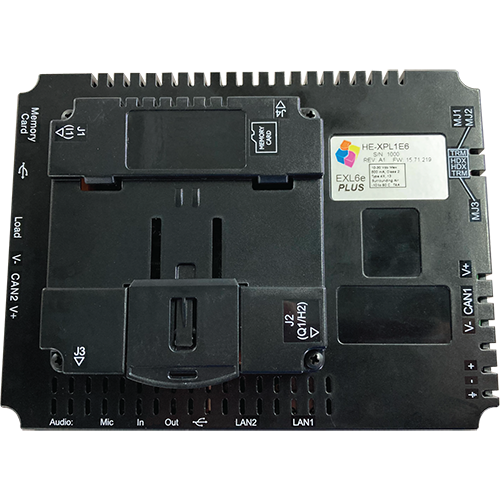

- 640×480 LCD TFT color graphics display with a high resolution resistive touchscreen
- 4 function keys in addition to a system key
- USB 2.0 On-the-Go port (mini-B 5pin) is available for programming
- also available with USB 2.0 Host port (A) for exchanging files with USB FLASH drives

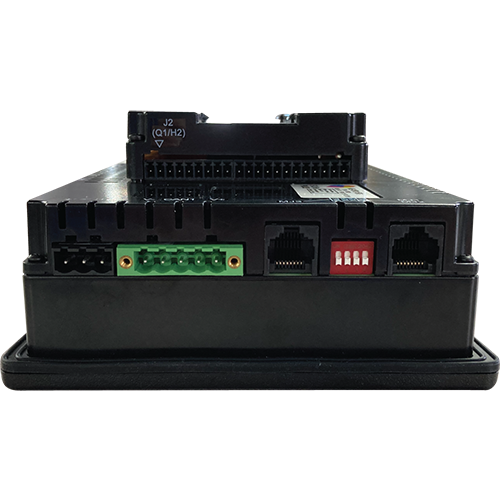

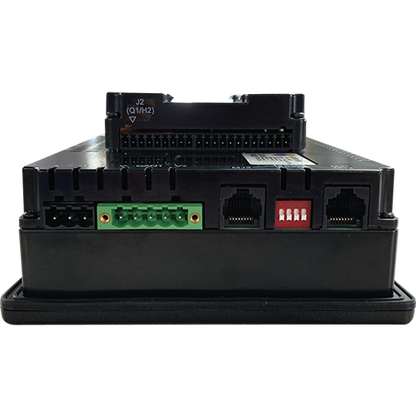

- two (2) RS-232 and one (1) RS-485 port support RTU / Modbus Commander / Responder (Master / Slave), ASCII In/Out, as well as PLC / Drive downloadable protocols
Networking Features for XL6 Prime PLC Controller

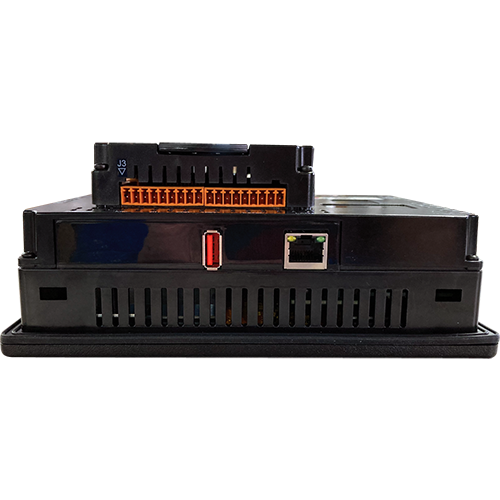

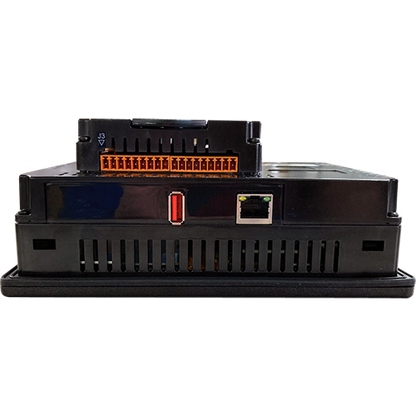

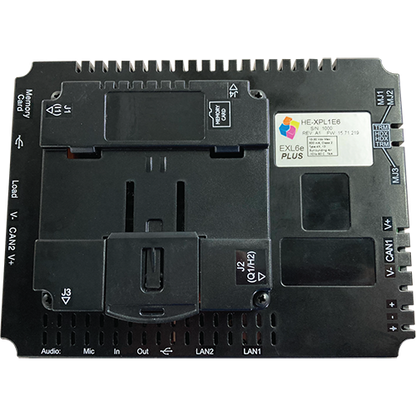

- Built-in 10/100 Ethernet port
- Integrated CsCAN port

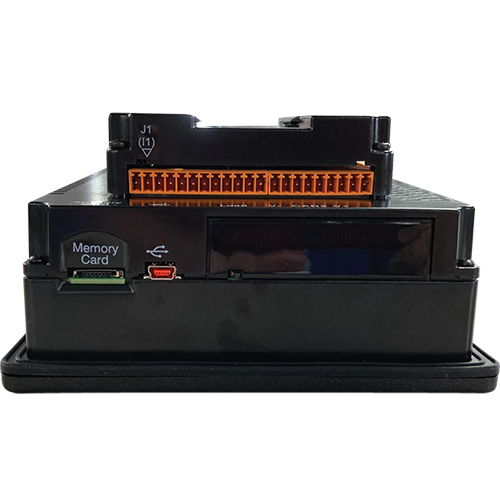

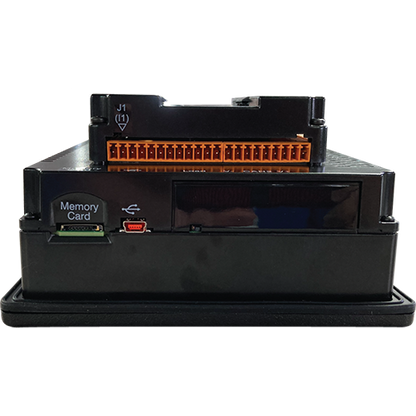

- All units feature a microSD slot, supporting at least 32GB
Standard Models of the XL6 Prime PLC Controller
| Model ID | Configuration |
|---|---|
| Model 0: HE-XPL1E0 | No built-in I/O |
| Model 2: HE-XPL1E2 | 12 DC in, 6 Relay Out, 4 – 12-bit Analog In |
| Model 3: HE-XPL1E3 | 12 DC in, 12 DC Out, 2 – 12-bit Analog In |
| Model 4: HE-XPL1E4 | 24 DC in, 16 DC Out, 2 – 12-bit Analog In |
| Model 5: HE-XPL1E5 | 12 DC in, 12 DC Out, 2 – 14/16-bit Analog In (mA/V/Tc/mV/RTD), 2 – 12-bit Analog Out |
| Model 6: HE-XPL1E6 | 12 DC in, 12 DC Out, 6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD), 4 – 12-bit Analog Out |
| All standard models and special order options (adders) are available for purchase through our online store. For additional assistance, please contact our sales team (281) 491-3833 or sales@psctexas.com for pricing, ordering, and lead time support. | |
Special Order Options (Adders)
| Part Number Extension | Description |
|---|---|
| -10 | Thermistor option; add -10 to the part number for thermistor support for analog inputs 1 & 2; available on models 2, 3, and 4 only. |
| -14 | Thermistor option; add -14 to the part number for (4) channel thermistor support; available on model 2 only. |
| -44 | SAE J1939 option; add -44 part number extension for SAE J1939 communications; also removes CsCAN support. |
| -441 | WebMI Unlimited License pre-loaded. |
| -442 | Enhanced IEC License pre-loaded. |
| -445 | MQTT License pre-loaded. |
| -602 | Screw type I/O terminals; also removes spring type terminals; model 6 only. |
| -603 | Adds display heater and screw type I/O terminals; and also removes spring type terminals; model 6 only. |
| NOTE: Lead time on special order products is typically 4-6 weeks. | |
