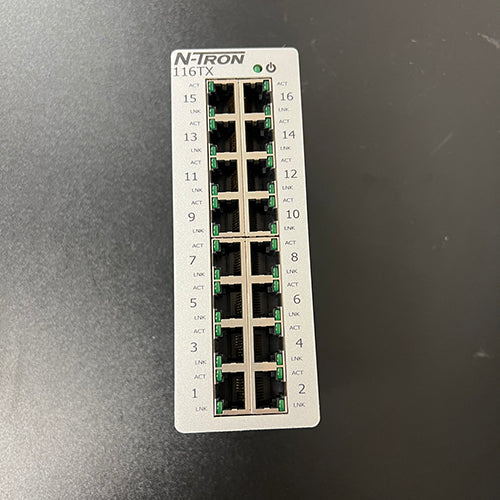

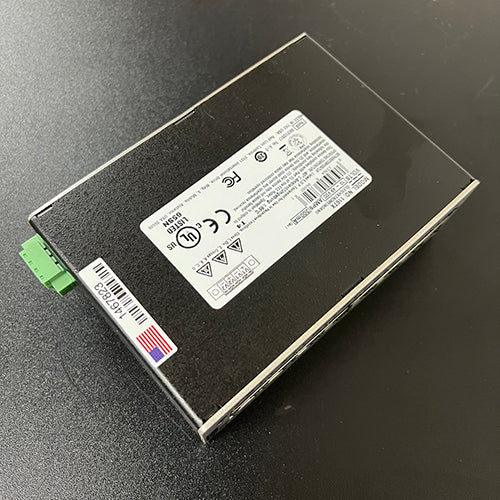

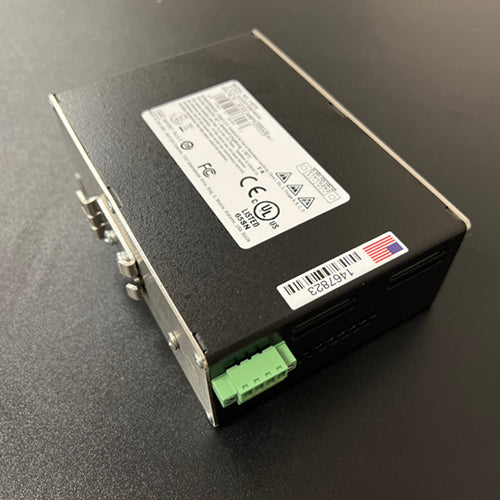

The compact N-Tron 116TX unmanaged Industrial Ethernet switch, from Red Lion, is ideal for industrial applications that demand dependable performance under harsh conditions. The compact 16-port device offers exceptional reliability and performance for a range of mission-critical applications including data acquisition, Ethernet I/O, and process control. Delivered in a rugged industrial metal enclosure, the 116TX provides 16 high-performance 10/100BaseTX copper ports with full wire speed communications, up to 3.2 Gb/s throughput, for robust network support. The unit boasts exceptional MTBF and extended tolerances to shock, vibration, temperature fluctuations and noise - common elements in factory floor control networks, utilities, wastewater treatment, wind turbines, rail car, intelligent traffic control, and transportation applications.
User-Friendly Unmanaged Industrial Ethernet Switch Model 116TX
The compact 116TX is an excellent plug & play solution. For convenience, the unit configures itself on the network at connection and features auto sensing 10/100BaseTX ports that intuitively negotiate speed and data flow. Automatic features enable instant recognition of network changes and/or updates, adjusting communications on the fly.Excellent Network Support
Compact and powerful, the 116TX is designed with advanced communication processing, store-and-forward technology and high-speed processing that allows full wire speed on all ports simultaneously. The unit is optimized for increased determinism and eliminates virtually all network collisions. The 16 high-performance network ports instantly recognize and resolve 10/100BaseTX, MDIX and duplex conflicts. For added convenience, LEDs are provided to display link status and activity for each port.
Features of the N-Tron 116TX from Red Lion
- Unmanaged Plug and Play Operation
- 16 port 10/100BaseTX Industrial Ethernet Switch
- Sixteen 10/100BaseTX RJ-45 Ports
- Slim, Space-saving design
- IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40° to 85°C Operating Temperature
- >2M Hours MTBF
- Supports Full/Half Duplex Operation
- Up to 3.2 Gb/s Maximum Throughput
- MDIX Auto Sensing Cable
- Auto Sensing Speed and Flow Control
- Full Wire Speed Communications
- ESD Protection Diodes on RJ-45 Ports
- Surge Protection Diodes on Power Inputs
- Store-and-forward Technology
- Redundant Power Inputs (10-49 VDC)
- LED Link/Activity Status Indication
- Rugged Metal DIN-Rail Enclosure
No Specification available
Other Details not Available
