The Aqua2000-6P automatically and continuously measures water quality in real time and can transmit measurements to the control system. It is an eco-friendly, high-precision water quality measuring instrument. With an optimal fluid engineering sample flow measurement structure, this water quality analyzer provides accurate and stable water quality measurement data even with changing measurement conditions that may occur during continuous operation.
- Sturdy aluminum IP65 enclosure (330 × 300 × 650 mm) built for harsh environments
- Wide operating temperature range from –20 to 70˚C for reliable field performance
- Touchscreen, 7" TFT LCD and 92-bit microprocessor for intuitive operation and control
- Supports analog outputs (six 4–20 mA channels) and four digital contact outputs for integration flexibility
- Connectivity via RS-232, RS-485, with optional Ethernet, and data downloads via USB or SD card

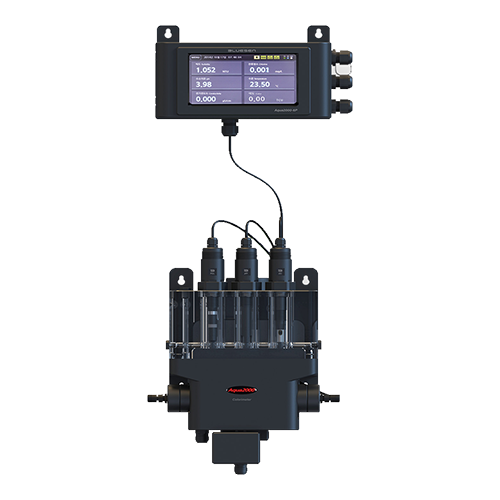

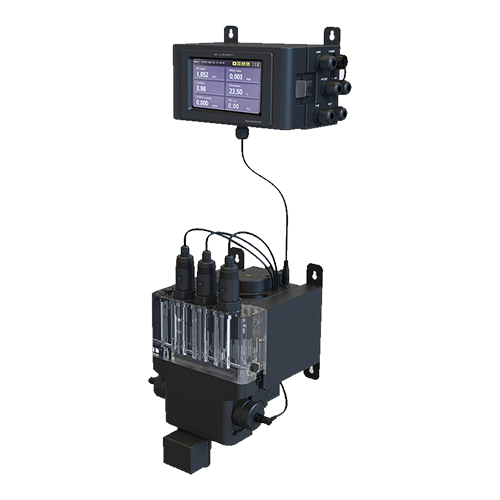

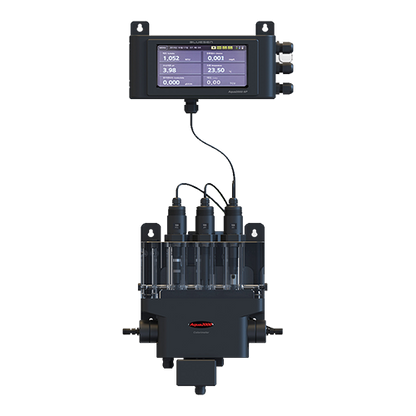

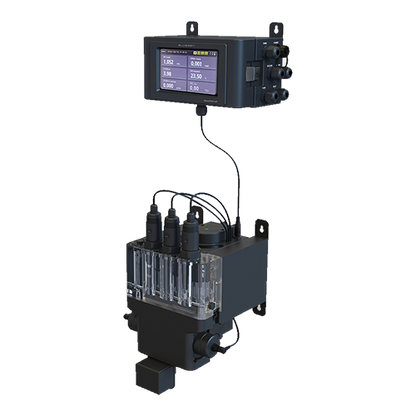

Aqua2000-6P Multi-parameter Water Analyzer
The Aqua2000-6P is an advanced, eco-conscious water quality analyzer engineered for real-time, continuous monitoring of six essential parameters in tap water. Encased in a durable aluminum body (330 × 300 × 650 mm) with IP65 waterproofing, this rugged unit operates reliably across temperatures from –20 to 70˚C, thus making it well-suited for demanding environments. Its control unit is powered by a 92-bit microprocessor and also features a responsive 7-inch touch TFT LCD, offering intuitive control and live data display. Capable of handling variable input flow rates (150–500 mL/min), it supports versatile outputs—six 4–20 mA analog channels, four digital contact outputs, as well as communication via RS-232, RS-485, optional Ethernet, USB, or SD card.
The sensor module measures free chlorine (polarographic, reagent-free, auto-compensated), turbidity (90˚ scattering with tungsten lamp), pH (composite glass electrode with auto-temp compensation), electrical conductivity (AC two-pole titanium electrode, auto-temp compensation), water temperature (PT1000 platinum sensor, ±0.2˚C accuracy), in addition to color (absorbance, high resolution down to 0.01 TCU). Its optimized fluid engineering ensures stable, accurate measurements across fluctuating environmental conditions, providing reliability for water utilities, treatment plants, and environmental monitoring.
- Free chlorine measurement: reagent-free polarographic method with membrane protection and auto-compensation, range 0–20 mg/L, ±3% accuracy
- Turbidity sensor: 90° light scattering with tungsten lamp, range 0–100 NTU, ±2% accuracy
- pH measurement: composite glass electrode with auto-temperature compensation, pH 0–14, ±1% accuracy
- Conductivity sensor: two-pole AC titanium electrode, auto-temp compensation, range 0–2000 µS/cm, ±1% reproducibility
- Additional sensors: water temperature (PT1000, ±0.2˚C accuracy), color via absorbance (0–40 TCU, 0.01 TCU resolution)
Common Uses of a Multi-parameter Water Quality Analyzer
Multi-parameter water quality analyzers like the Aqua2000-6P are indispensable across diverse sectors. In drinking water treatment, they ensure safe, compliant water by monitoring multiple parameters in real time. Wastewater treatment plants rely on them to control effluent quality before discharge. Environmental monitors for rivers, lakes, and also coastal zones use them to assess ecosystem health.
In agricultural and aquaculture settings, they help maintain optimal water conditions for crops and aquatic life. Industrial processes, including food, beverage, as well as pharmaceuticals, use them to verify water purity and optimize systems. Their multi-sensor, real-time capability streamlines monitoring, boosts efficiency, and ensures regulatory compliance.
- Environmental monitoring, for example: rivers, lakes, and coastal zones
- Agriculture and aquaculture
- Industrial facilities: food and beverage production, pharmaceuticals, as well as oil and gas processing
- Wastewater treatment plants (WWTP)
