L4TNM-PSA are Type N Male Positive Stop Connectors from Andrew / CommScope that help reduce connector attachment issues while ensuring excellent RF transmission line performance. Positive stop connectors are for use with HELIAX corrugated coaxial cables. They require no special tools or torque wrenches, thus eliminating both guess work and time consuming measuring. A standard wrench, and less than one rotation, is all that's needed for these well-designed positive stop connectors.
- no special tools necessary
- fully tightens in less than one rotation
- visual and mechanical fit verification
- integrated sealing mechanism
- faster, easier installation
- excellent electrical performance

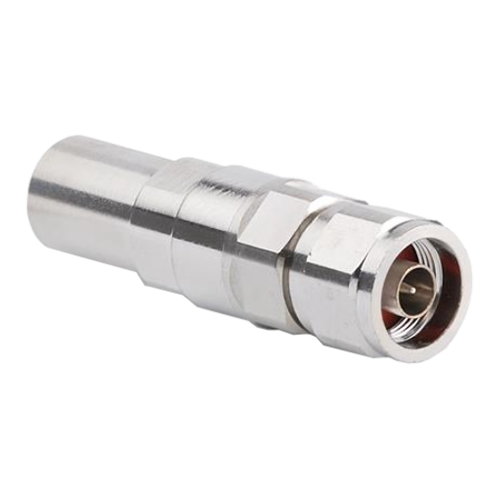

Andrew L4TNM-PSA
They give installers a clear visual and mechanical verification of a correct fit, while sealing out water and helping to maintain excellent electrical performance. Positive stop connectors are waterproof, even unmated. Their clear verification eliminates the need to control torque levels and provides consistent attachment integrity and electrical performance. These positive stop connectors are ideal for 1/2 inch LDF4-50A, AL4RPV-50, HL4RPV-50 coaxial cables. | Coax Construction | coaxial |
|---|---|
| Jacket Material | none |
| Conductor Material | bare copper |
| Conductor Type | solid conductor |
| Dielectric Material | air |
| Fire Rating | plenum |
| Flooded | no, not flooded over braid |
| Impedance | 50 ohm nominal impedance |
| Outdoor | no, not intended for outdoor use |
| Screen / Shield Type | special shield construction |
No Specification available
Other Details not Available
