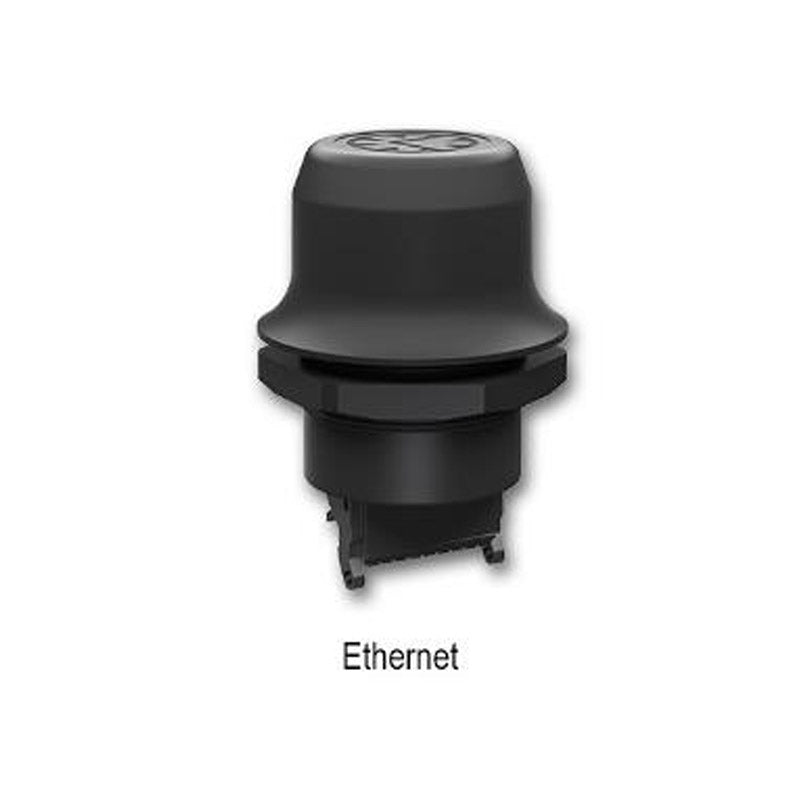

Anybus Wireless Bolt

Anybus Wireless Bolt

Anybus Wireless Bolt enables you to connect industrial machines and devices to a wireless network. It is attached onto a cabinet or a machine to enable wireless access over Bluetooth®, Bluetooth Low Energy® or WLAN (WiFi). On the wired side, the Anybus Wireless Bolt communicates over Industrial Ethernet, supporting protocols such as BACnet/IP, PROFINET, EtherNet/IP, Modbus TCP as well as TCP/IP and UDP. AN ALL-IN-ONE SOLUTION With Anybus Wireless Bolt you get an All-in-one package featuring, connector, communication processor and integrated antenna in the same unit, with an exterior IP67 protection class. Regardless of communication method you select, you have the same connector (2x9p Plug Connector) for both power and communication.

View full details

Anybus Wireless Bolt gives you direct access to configure or troubleshoot your machinery. With a range of 100 meters you can access the internal web pages via a laptop, tablet or smartphone. BYOD (Bring Your Own Device) means that you no longer need an expensive HMI. A machine operator or technician does not need to be physically located at the machine to gain access.

WLAN (WiFi) Interface

  • Supports Dual-Band WLAN 2.4/5 Ghz frequency
  • Conforms to IEEE802.11 a/b/g/d/e/i/h specification
  • Operates as an Access point or Client
  • Connects up to 7 Responders (Slaves) as an Access point
  • Max throughput: 20 Mbps
  • Max Range: 100 meters
  • Security support: WEP64, WEP128,WPA-PSk, WPA2-PSk, TkIP, CCMP (AES) and LEAP, PEAP

Bluetooth Interface for Industrial Instrumentation

  • Supports Bluetooth v4.0
  • Supports profiles: PANU & NAP
  • Operates as an Access point or Client
  • Connects up to 7 Responders as an Access point
  • Max throughput: 1 Mbps
  • Max Range: 100 meters
  • Security support: Authentication & Authorization, Encryption & Data Protection, Privacy & Confidentiality, NIST Compliant, FIPS Approved

Ethernet Features

  • Supports Ethernet protocols: IP, TCP, UDP, HTTP, LLDP, ARP, DHCP Client/Server, DNS support
  • Supports wireless bridging of Industrial Ethernet protocols: BACnet/IP, EtherNet/IP, Modbus-TCP, PROFINET
  • Ethernet interface: 10/100BASE-T with automatic MDI/MDIX cross-over

Digital Interface

  • Digital Input to control e.g. roaming behavior. Max. 3m signal cable
