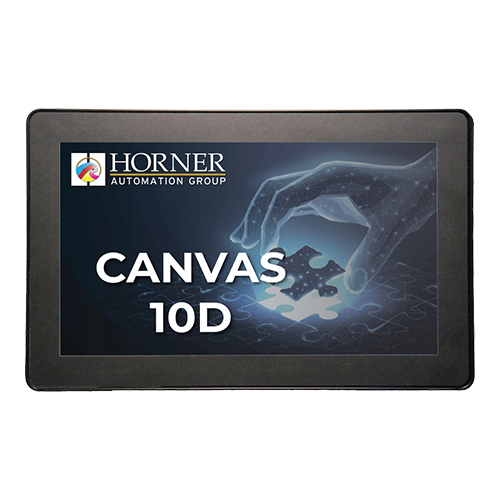

The Canvas 10D logic engine features 2MB of application memory with a 0.02mS/K logic scan. Furthermore, the Canvas 10D HMI with PLC, from Horner Automation, supports an online programming mode for making logic changes on the fly without going thru stop mode. Operator interface features include:
- all-new graphics engine built with Cscape 10 enhanced graphics

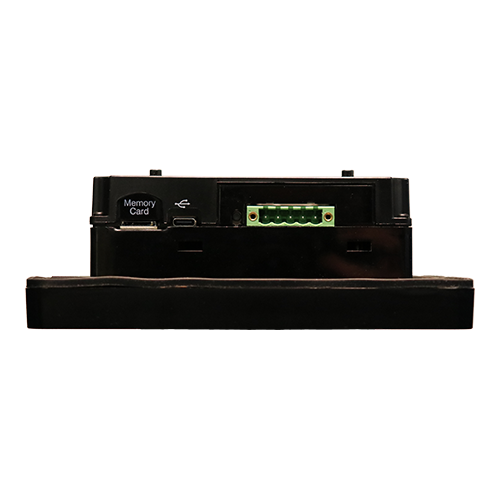

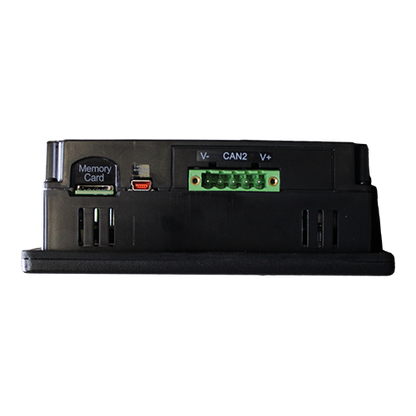

- all Canvas 10D HMI with PLC models feature a microSD slot and can support at least 32GB of external memory
- multi-core SOM with dedicated logic and graphics cores
- 1" WSVGA (1024×600) display, virtual function keys
- 6 I/O configurations for up to 42 I/O points onboard
- dual Ethernet, 3 serial ports, dual CAN ports, as well as 2MB Logic Memory
- DIN-Rail mountable, same cutout as XL6 Prime, XLW Prime, and also the X10

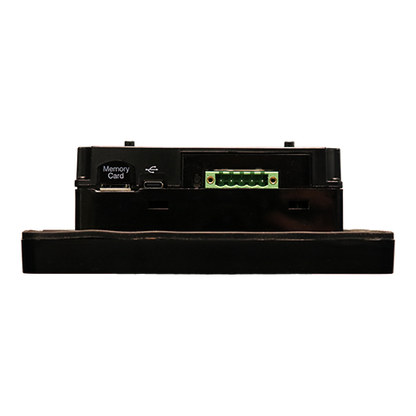

- USB Type C for programming, USB A as well as Micro SD support
- online programming and MQTT support, as well as improved WebMI features
- all Canvas models include WebMI+, MQTT, Enhanced IEC, and also SAE J1939 features included as standard

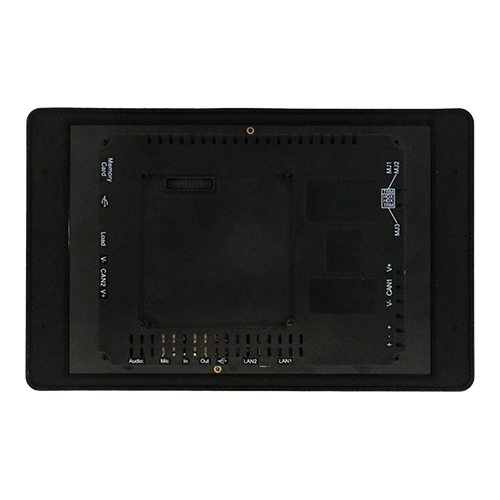

Canvas 10D Advanced Graphical HMI

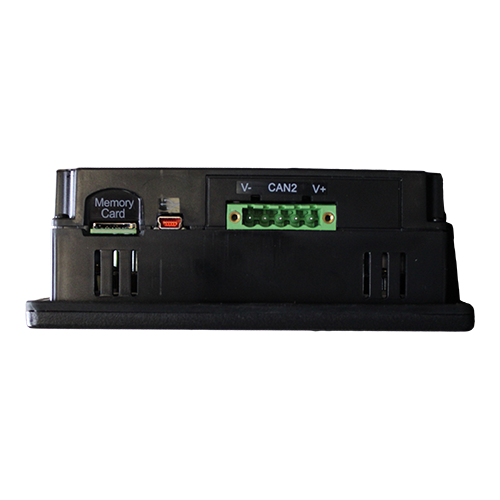

- removable media for 32GB of storage of programs, data logging, and also screen captures
- CsCAN networking port for communication with remote I/O, other controllers, or PCs
- high speed USB port for communication with PCs as well as for the programming of the controller
- configurable serial protocols for communication to drives, PLCs, or other serial peripherals
- full featured, built-in I/O including high resolution analog, thermocouple, RTD, high speed counters, PWM outputs, and relays (depending upon the Canvas 10D OCS model used)
- advanced high speed I/O capabilities
- Cscape programming software that allows all aspects of the Canvas 10D HMI with PLC to be programmed and configured from one integrated application
- optional communication add-on modules
- on board Ethernet port (10/100Mbps) for Cscape programming as well as application defined communication, with Auto MDI/MDI-X

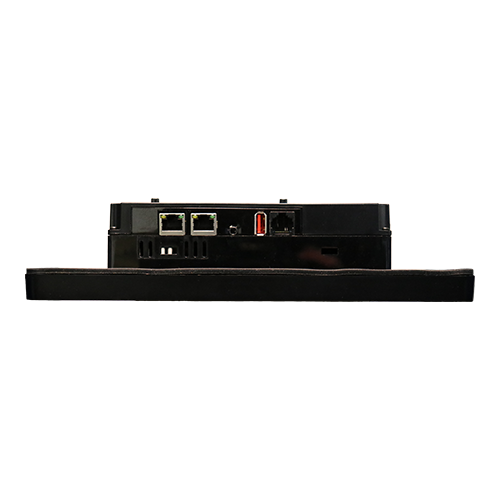

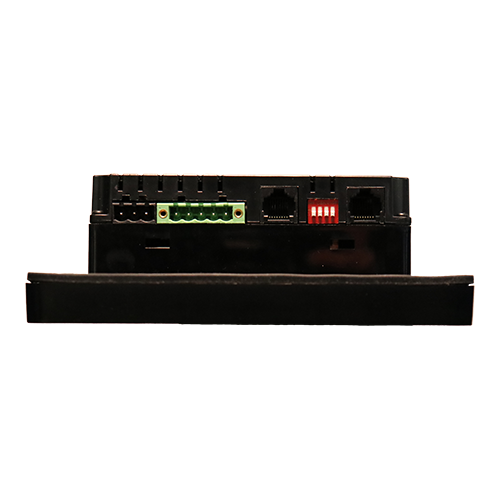

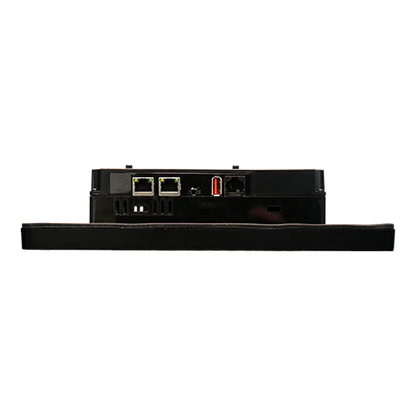

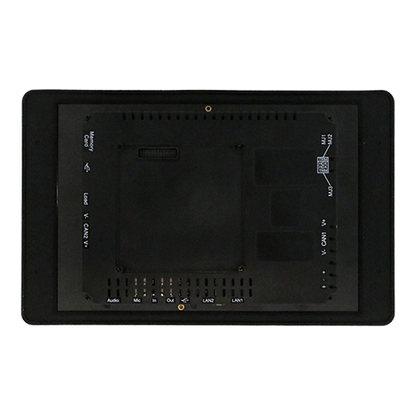

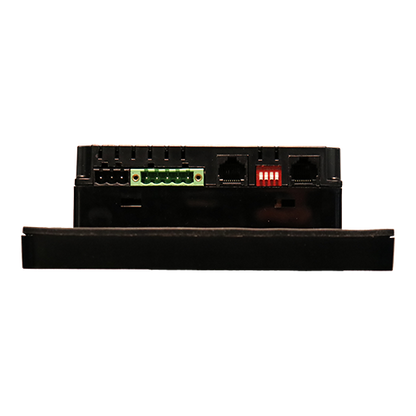

Networking Features of the Canvas 10D HMI with PLC
- (2) built-in 10/100 Ethernet port
- (2) integrated CAN ports that support CsCAN and either CANopen, J1939, or DeviceNet Scanner simultaneously
Standard Models of the Canvas 10D HMI with PLC
| Model ID | Configuration |
|---|---|
| Model 0: HE-CV-101D-00 | No built-in I/O |
| Model 2: HE-CV-101D-02 | 12 DC in, 6 Relay Out, 4 – 12-bit Analog In |
| Model 3: HE-CV-101D-03 | 12 DC in, 12 DC Out, 2 – 12-bit Analog In |
| Model 4: HE-CV-101D-04 | 24 DC in, 16 DC Out, 2 – 12-bit Analog In |
| Model 5: HE-CV-101D-05 | 12 DC in, 12 DC Out, 2 – 14/16-bit Analog In (mA/V/Tc/mV/RTD), 2 – 12-bit Analog Out |
| Model 6: HE-CV-101D-06 | 12 DC in, 12 DC Out, 6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD), 4 – 12-bit Analog Out |
| Standard models are available from our online store. For special order options (below), please contact our sales team (281) 491-3833 or sales@psctexas.com for pricing as well as lead time support. | |
Special Order Options (Adders)
| Part Number Extension | Description |
|---|---|
| -10* | Thermistor option; add -10 to the part number for thermistor support for Analog Inputs 1 & 2; available on models 2, 3, and 4 only. |
| -14* | Thermistor option; add -14 to the part number for (4) channel thermistor support; available on model 2 only. |
| -602 | Adds screw type I/O terminals; also removes spring type terminals; model 6 only. |
| NOTE: Lead time on special order products is typically 4-6 weeks. | |
| *Not available for purchase on the web store; please contact us for ordering assistance. | |
