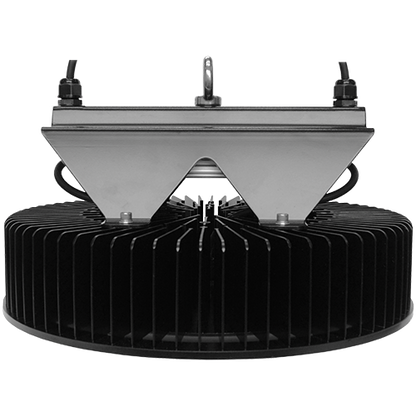

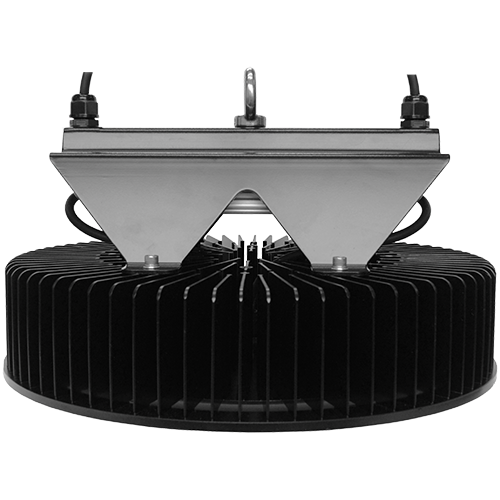

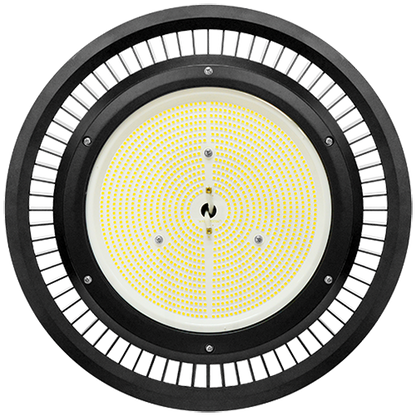

Our standard Circular High Bay Lighting Series (CHS-H) is a versatile and durable indoor fixture that come in six sizes with two optional reflectors that are field installable. It is lightweight and installation is easy enough for a single person. This high bay lighting is an excellent choice of indoor light from Horner Lighting Group.
- output of 50,000 to 76,800 lumens
- engineered with quality, space-age materials
- traditional round profile is light weight and easy to install

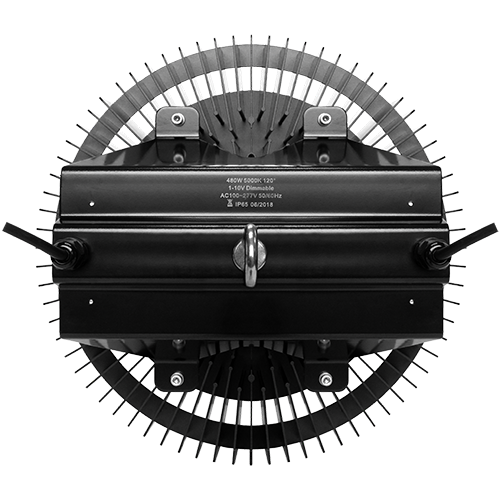

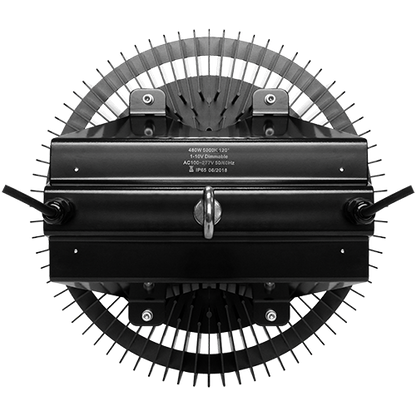

- quickly mount via hook (standard) or ring
- unique, optional junction box enables flexible wire termination
- 277/480 VAC option available
- IP65 Dust and Water Protection, UL wet-rated
High Output High Bay Lighting
- 80 CRI standard enhances color and clarity

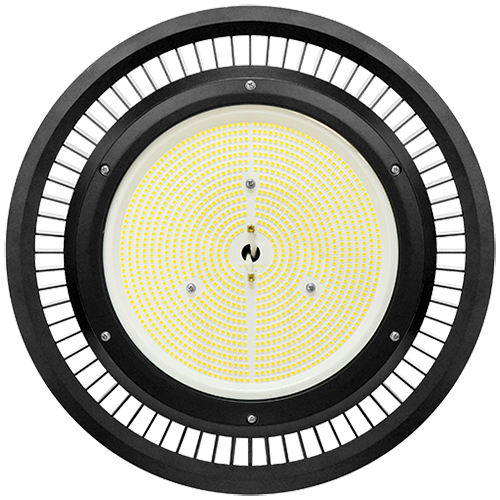

- powerful light engine creates even output with 4 different distributions

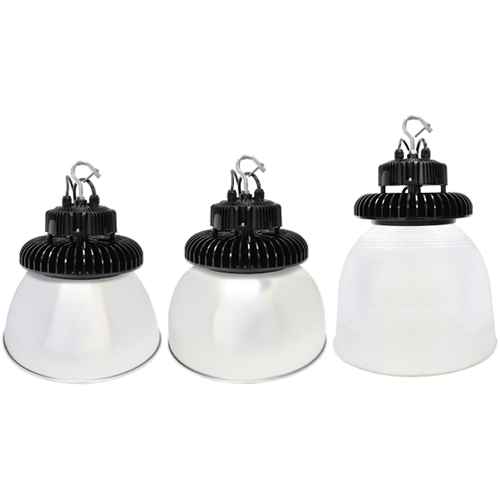

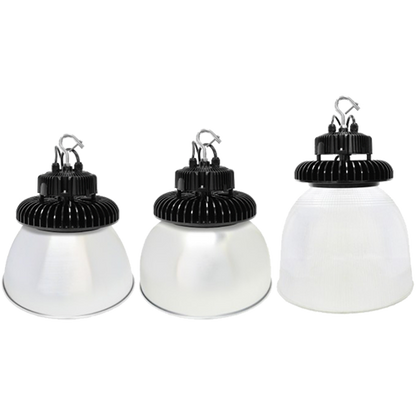

- optional aluminum reflectors of either 60Ë or a 70Ë acrylic
- optional acrylic lens provides control, minimizing potential for glare
- typical mounting heights of 10 to 60â
High Quality, Affordable Commercial Lighting
- typical payback of 12-24 months
- 0-10 dimming standard
- up to 160 lumens/watt
- potential for rebate saving through DLC certifications: Â www.designlights.org
- utilize optional motion and/or daylight sensors for additional energy savings
Circular High Output, High Bay Lighting Model Line Up
| Model | Weight | Dimensions (LxWxH inches) | CRI | CCT | Lumens | Total Watts | Lumens / Watts | L70 (hr) |
|---|---|---|---|---|---|---|---|---|
| ETG-CHS320H | 14 lbs. | 11.75 x 11.75 x 9.25 | 80 | 5000k | 49,600 | 328 | 152 | >192,000 |
| ETG-CHS480H | 24 lbs. | 15.75 x 5.75 x 10.5 | 80 | 5000k | 76,800 | 484 | 159 | >225,000 |
Specifications
Power Options
| Part Number Adder | Description - built on the light |
| P1 (standard) | ON/OFF 120~277 VAC |
| P2 | 480 VAC |
Accessories
| Part Number | Description |

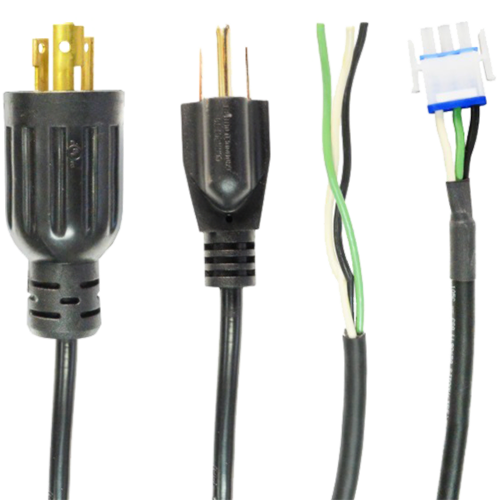

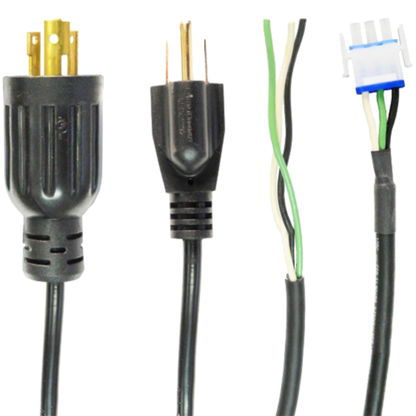

| ETG-PLG-G4-CHS | Wire harness 277V L7-15 AC twist cord with connector |
| ETG-PLG-G3-CHS | Wire harness 120V 5-15 AC cord with connector |
| ETG-PLG-G0-CHS | Wire harness cable with connector |
| ETG-PLG-CNP-06 | 480 VAC, 10' Power Cord WIP; (recommended for P2 fixtures) |
| ETG-LEN-CHSH-60D | Acrylic Optical lens for replacing standard lens, 60 deg |
| ETG-WHM-5 | Two Adjustable Single Wire Mounts with One hook on each, 5 ft Cable |
| ETG-HBRH-RAL | 1 high bay aluminum reflector with 60° angle light distribution |
| ETG-HBRH-RAC | 1 high bay acrylic reflector with 70° angle light distribution |
| ETG-BKT-CHB-PD1 | Pendant Mount Option for P1 Circular High Bay models |
| ETG-BKT-CHB-PD2 | Pendant Mount Option for P2 Circular High Bay models |
| ETG-CTL-SEN-MOT-CHSH | On/Off Motion Sensor, Fixture or Reflector (120~277 VAC only) |
Common Areas that Use High Bay Lighting
- grocery stores
- warehouses
- manufacturing facilities
- department stores
- sport stadiums

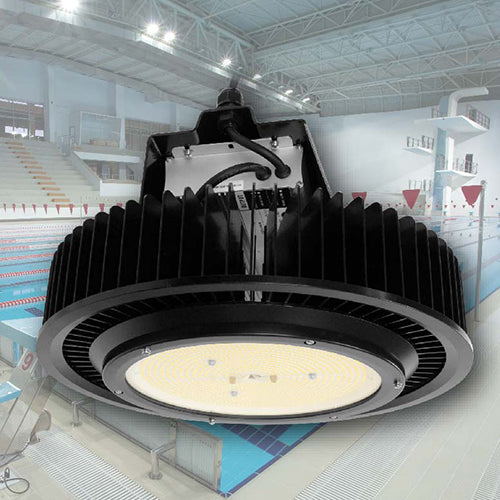

- natatoriums
- industrial garages
- hangars
- indoor storage facilities
- gymnasiums
Maintenance Tips
- To maintain efficiency, the glass lens should be cleaned with a mild soap or neutral PH cleaner.
- Abrasives or cleaners containing chlorinated or aromatic hydrocarbons should not be used.
- Once clean, rinse with cold water and wipe dry with a soft cloth.
