Core Sensors

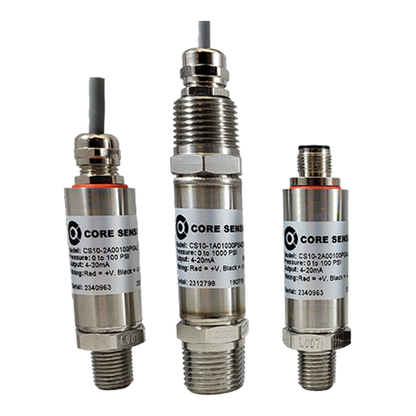

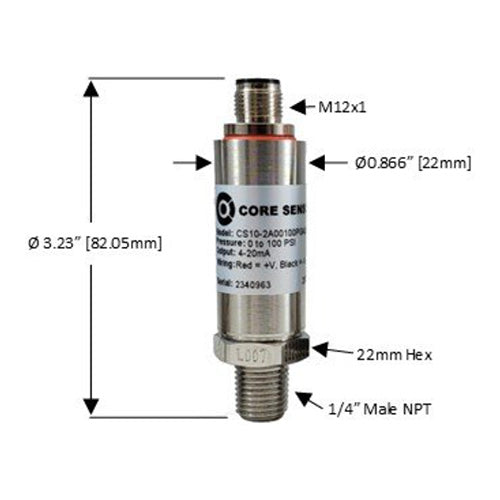

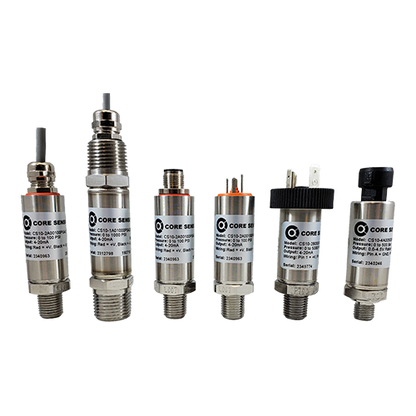

CS10 Industrial Pressure Transducer, Vacuum - 45,000 PSI

CS10 Industrial Pressure Transducer, Vacuum - 45,000 PSI

The CS10 Industrial Pressure Transducer is designed for demanding industrial applications such as water pressure monitoring, use with hydraulic and pneumatic equipment, HVAC and refrigeration controls, and hydrogen service. The ASIC electronics on this pressure sensor, from Core Sensors, offer analog voltage or 4-20mA loop powered output signals. It uses MEMS silicon strain gages mounted to a stainless steel or nickel alloy sensing element and various process connections are available to allow flexibility among common applications.
  • pressures from vacuum to 45,000 PSI
  • highly configurable design
  • optional integral snubber
  • wide operating temperature range
  • oxygen cleaning available
View full details

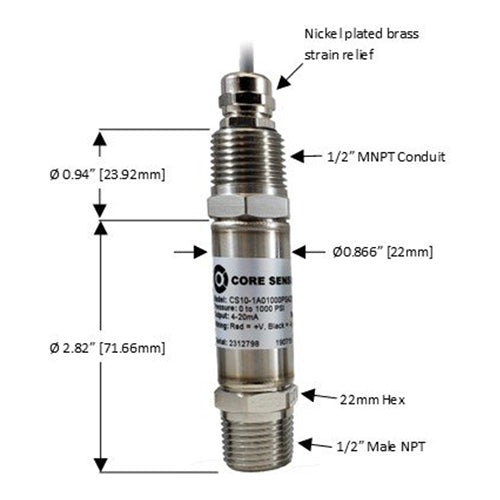

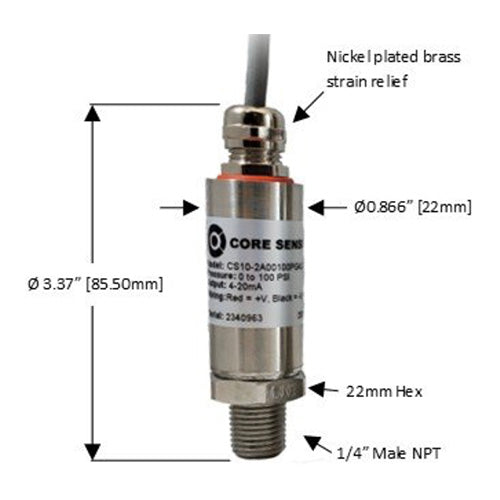

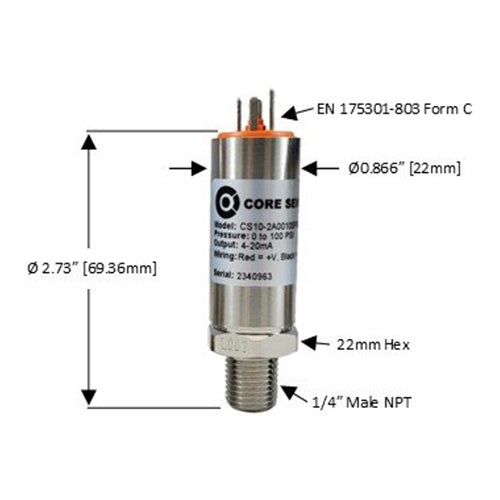

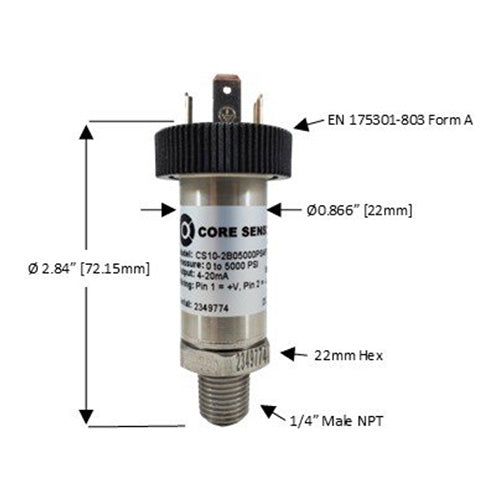

The CS10 Industrial Pressure Transducer is ideal for demanding industrial applications. The CS10, from Core Sensors, uses MEMS silicon strain gages on a stainless steel or nickel alloy sensing element. It offers analog voltage or 4-20 mA loop power output signals. Various process connections are available in 17-4PH or 316L stainless steel or in nickel alloy including Hastelloy C276 and Inconel 718. The choice of connection, or wetted materials, can allow the CS10 to be suitable for use in a wide variety applications, such as use with corrosive liquids or gases. Electrical connections include cable or various integral connectors. Semi-custom and fully custom designs are available.

  • pressures from vacuum to 45,000 PSI
  • highly configurable design
  • optional integral snubber
  • reverse polarity and EMI protection
  • oxygen cleaning available

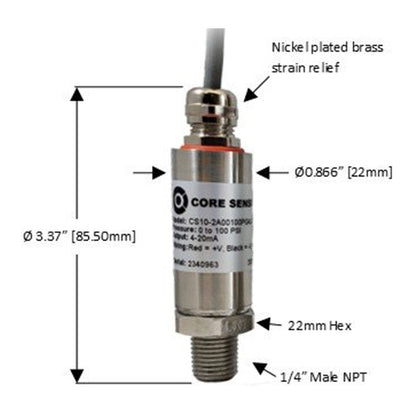

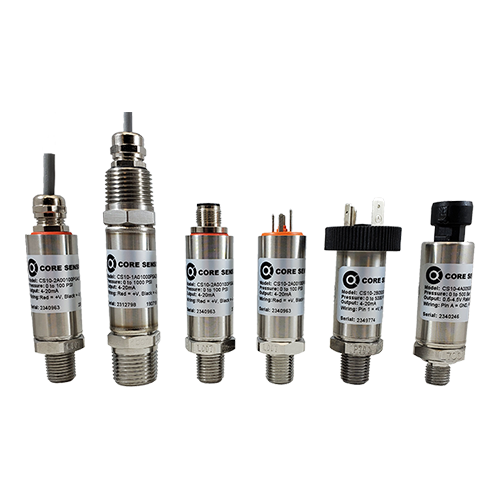

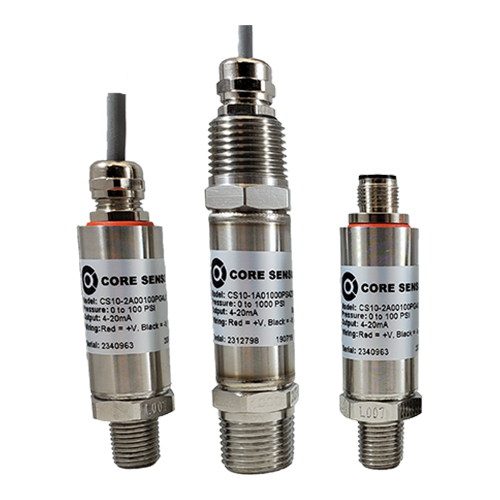

CS10 Industrial Pressure Transducer

The CS10 Industrial Pressure Transducer is the ideal solution for demanding industrial applications where ruggedness and reliability are top priority. Users can choose from various threaded connection sizes, pressure ranges, various electrical connections including integral cable or connectors, wetted materials options, and various output signals. Pressure options range from vacuum to 45,000 PSI. This level of customization the CS10 to solve just about any measurement challenge.



Specifications

Performance Thermal Environmental

Accuracy @ 77˚F (25˚C)1

  • ≤ ±0.25% BFSL
  • ≤ ±0.5% BFSL (< 2 PSI & > 10,000 PSI)
  • ≤ ±1% BFSL (millivolt output signal)

Stability (1 Year)

  • ≤ ±0.25% of FS

Pressure Cycles

  • 100 million

Overpressure

  • 2X minimum

Burst Pressure

  • 5X or 60,000 PSI, whichever is less

Operating Temperature

  • -40 to 185˚F
  • -40 to 85˚C

Media Temperature

  • -40 to 248˚F
  • -40 to 120˚C

Compensated Temperature

  • 32 to 131˚F
  • 0 to 55˚C

Storage Temperature

  • -40 to 257˚F
  • -40 to 125˚C

TC Zero

  • ≤ ±1% of FS
  • ≤ ±2% of FS (2 PSI & below)

TC Span

  • ≤ ±1% of FS
  • ≤ ±2% of FS (2 PSI & below)

EMI/RFI Protection

  • Yes

IP Rating2

Vibration

  • 10 g, 20 to 2000 Hz

Shock

  • 100 g, 11 msec, 1/2 sine
1Accuracy includes non-linearity, hysteresis, and non-repeatability. 2IP Rating is dependent on electrical termination selected. Contact us for more information. IP Rating applies when electrical connector is attached with the appropriate ingress protection.



Electrical Specifications for the CS10 Industrial Pressure Transducer

Current Voltage Ratiometric Low Power Millivolt

Outputs

  • 4-20 mA

Excitation

  • 10-28 VDC

Current Consumption

  • 20 mA, typical

Output Load

  • 0-800 Ohms @ 10-28 VDC

Frequency Response (min)

  • ~250 Hz

Zero Offset (of FS)

  • ≤ ±0.5% typical, ±1% max

Span Tolerance (of FS)

  • ≤ ±0.5% typical, ±1% max

Outputs

  • 1-5 V
  • 0-5 V (3-wire)
  • 1-6V
  • 0-10V (3-wire)

Excitation

  • 10-28 VDC
  • 15-28 VDC (0-10 V output)

Current Consumption

  • < 10 mA

Output Load

  • 5 K Ohms, min

Frequency Response (min)

  • ~1 kHz

Zero Offset (of FS)

  • ≤ ±0.5% typical, ±1% max

Span Tolerance (of FS)

  • ≤ ±0.5% typical, ±1% max

Outputs

  • 0.5-4.5V ratiometric

Excitation

  • 5 VDC ±0.5 V

Current Consumption

  • < 10 mA

Output Load

  • 5 K Ohms, min

Frequency Response (min)

  • ~1 kHz

Zero Offset (of FS)

  • ≤ ±0.5% typical, ±1% max

Span Tolerance (of FS)

  • ≤ ±0.5% typical, ±1% max

Outputs

  • 0.5-2.5 V non-ratiometric

Excitation

  • 3-5 VDC unregulated

Current Consumption

  • ≤ 3 mA

Output Load

  • 5 K Ohms, min

Frequency Response (min)

  • ~1 kHz

Zero Offset (of FS)

  • ≤ ±0.5% typical, ±1% max

Span Tolerance (of FS)

  • ≤ ±0.5% typical, ±1% max

Outputs

  • 10 m V/V

Excitation

  • 5 VDC, typical

Current Consumption

  • < 5 mA

Output Load

  • > 1 M Ohms

Frequency Response (min)

  • ~5 kHz

Zero Offset (of FS)

  • ≤ ±2%

Span Tolerance (of FS)

  • ≤ ±2%



Approvals



Applications

  • water pressure monitoring
  • hydraulic / pneumatic equipment
  • HVAC and refrigeration controls
  • hydrogen (316L SS only)
