CS50 Non-Incendive Pressure Transducer, 50-30,000 PSI

CS50 Non-Incendive Pressure Transducer, 50-30,000 PSI

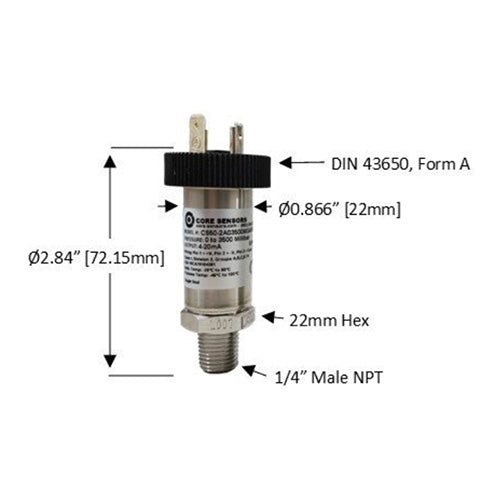

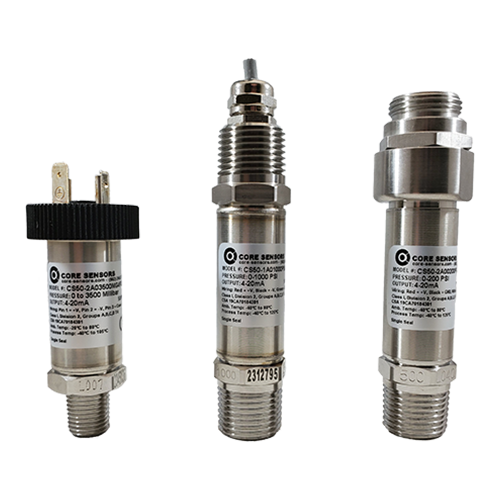

The CS50 Non-Incendive Pressure Transducer is a rugged, industrial pressure sensor designed for use in Class I, Division 2 hazardous locations. It features an all welded stainless steel construction, offering a minimum IP65 rating. A wide range of configurable options make the CS50, from Core Sensors, a versatile pressure transducer that's able to operate in some extremely harsh conditions. The CS50 is an excellent solution for applications such as natural gas compression, hydrogen service, process control instrumentation, and more.
View full details

The CS50 Non-Incendive Pressure Transducer is a high strength pressure sensor for use in Class I, Division 2 hazardous locations. The CS50 features an all welded stainless steel construction, offering a minimum IP65 rating. A wide range of configurable options make the CS50 a versatile pressure transducer that's able to operate in some of the harshest conditions. The CS50 is an excellent solution for applications such as natural gas compression, hydrogen compression and storage, and process control instrumentation. Caution must be taken when installing and operating hazardous area instrumentation. Please review the Non-Incendive Operating Instructions prior to installation.

CS50 Non-incendive Pressure Transducer

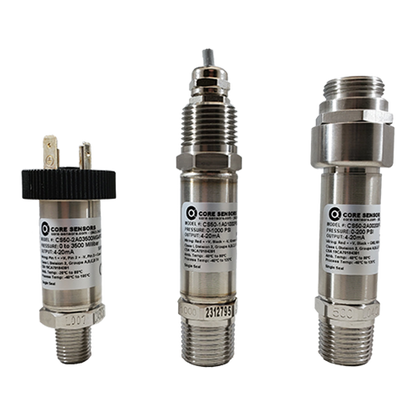

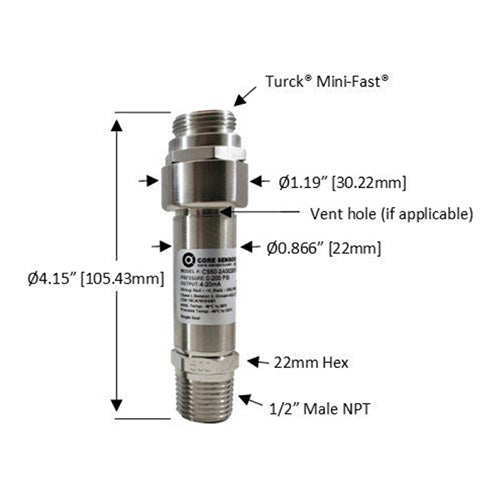

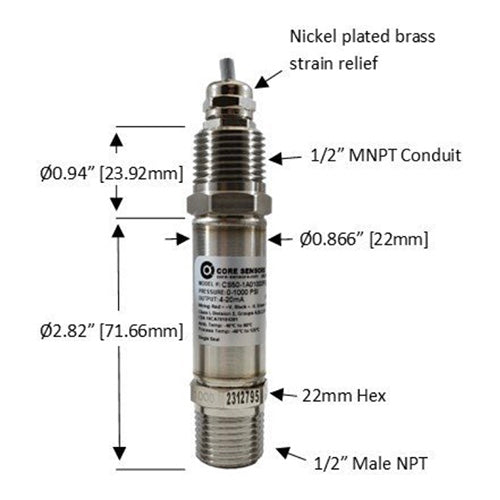

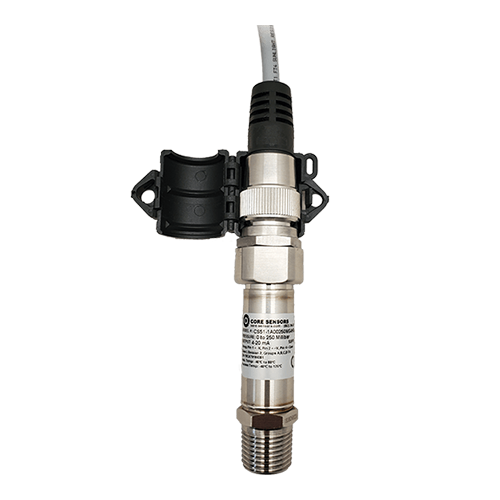

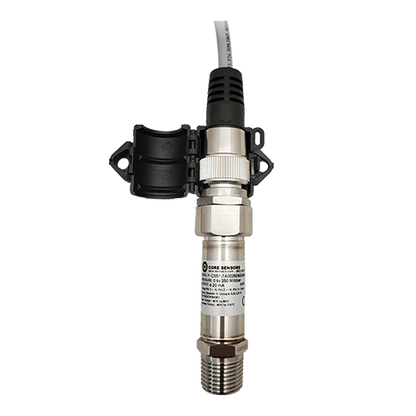

In an effort to simplify installation in Class I, Division 2 hazardous locations, the CS50 Non-Incendive Pressure Transducer, from Core Sensors, offers an integral Turck Minifast electrical connection. In combination with a CSA Division 2 Turck cordset and Lokfast Guard, there is no requirement for conduit to be installed over the cable.* This not only makes installation easy but also makes switching out sensors less cumbersome. We can supply all components as a complete package. Click here to learn more about the Turck Minifast electrical connection here: psctexas.com/turck-minifast-connection-for-class-1-div-2-hazardous-areas/ *We recommend confirming hazardous location installation requirements with your local inspector as each installation is unique.

Specifications

Performance Thermal Environmental

Accuracy @ 77˚F (25˚C)1

  • ≤ ±0.25% BFSL
  • ≤ ±0.5% BFSL (>10,000 PSI)

Stability (1 Year)

  • ≤ ±0.25% of FS

Pressure Cycles

  • 100 million

Overpressure

  • 2X minimum

Burst Pressure

  • 5X or 60,000 PSI, whichever is less

Operating Temperature

  • -40 to 176˚F
  • -40 to 80˚C

Operating Temperature (Electrical connection “F”, DIN 43650-A)

  • -4 to 176˚F
  • -20 to 80˚C

Media Temperature

  • -40 to 257˚F
  • -40 to 125˚C

Media Temperature (Electrical connection “F”, DIN 43650-A)

  • -40 to 221˚F
  • -40 to 105˚C

Compensated Temperature

  • 32 to 131˚F
  • 0 to 55˚C

Storage Temperature

  • -40 to 257˚F
  • -40 to 125˚C

TC Zero

  • ≤ ±1% of FS

TC Span

  • ≤ ±1% of FS

EMI/RFI Protection

  • Yes

IP Rating2

Vibration

  • 10 g, 20 to 2000 Hz

Shock

  • 100 g, 11 msec, 1/2 sine
1Accuracy includes non-linearity, hysteresis and non-repeatability. 2IP Rating is dependent on electrical termination selected. Contact us for more information. IP Rating applies when electrical connector is attached with the appropriate ingress protection.

Electrical Specifications

Current Voltage Ratiometric Low Power

Outputs

  • 4-20 mA

Excitation

  • 10-28 VDC

Current Consumption

  • 20 mA, typical

Output Load

  • 0-800 Ohms @ 10-28 VDC

Frequency Response (min)

  • ~250 Hz

Zero Offset (of FS)

  • ≤ ±0.5% typical, ±1% max

Span Tolerance (of FS)

  • ≤ ±0.5% typical, ±1% max

Outputs

  • 1-5 V
  • 1-6 V

Excitation

  • 10-28 VDC

Current Consumption

  • < 10 mA

Output Load

  • 5 K Ohms, min

Frequency Response (min)

  • ~1 kHz

Zero Offset (of FS)

  • ≤ ±0.5% typical, ±1% max

Span Tolerance (of FS)

  • ≤ ±0.5% typical, ±1% max

Outputs

  • 0.5-4.5 V ratiometric

Excitation

  • 5 VDC ±0.5 V

Current Consumption

  • < 10 mA

Output Load

  • 5 K Ohms, min

Frequency Response (min)

  • ~1 kHz

Zero Offset (of FS)

  • ≤ ±0.5% typical, ±1% max

Span Tolerance (of FS)

  • ≤ ±0.5% typical, ±1% max

Outputs

  • 0.5-2.5 V non-ratiometric

Excitation

  • 3-5 VDC unregulated

Current Consumption

  • ≤ 3 mA

Output Load

  • 5 K Ohms, min

Frequency Response (min)

  • ~1 kHz

Zero Offset (of FS)

  • ≤ ±0.5% typical, ±1% max

Span Tolerance (of FS)

  • ≤ ±0.5% typical, ±1% max

Hazardous Area Approvals and Certifications

Configuration Guide

cs50-non-incendive-pressure-transducer-core-sensors-psc-texas-configuration

Common Uses of the CS50 Non-incendive Pressure Transducer

  • natural gas compression
  • oil exploration
  • process controls
  • hydrogen (316L SS only)

Specifications

Product specifications and model lineup.

Performance Thermal Environmental

Accuracy @ 77˚F (25˚C)1

  • ≤ ±0.25% BFSL
  • ≤ ±0.5% BFSL (>10,000 PSI)

Stability (1 Year)

  • ≤ ±0.25% of FS

Pressure Cycles

  • 100 million

Overpressure

  • 2X minimum

Burst Pressure

  • 5X or 60,000 PSI, whichever is less

Operating Temperature

  • -40 to 176˚F
  • -40 to 80˚C

Operating Temperature (Electrical connection “F”, DIN 43650-A)

  • -4 to 176˚F
  • -20 to 80˚C

Media Temperature

  • -40 to 257˚F
  • -40 to 125˚C

Media Temperature (Electrical connection “F”, DIN 43650-A)

  • -40 to 221˚F
  • -40 to 105˚C

Compensated Temperature

  • 32 to 131˚F
  • 0 to 55˚C

Storage Temperature

  • -40 to 257˚F
  • -40 to 125˚C

TC Zero

  • ≤ ±1% of FS

TC Span

  • ≤ ±1% of FS

EMI/RFI Protection

  • Yes

IP Rating2

Vibration

  • 10 g, 20 to 2000 Hz

Shock

  • 100 g, 11 msec, 1/2 sine
1Accuracy includes non-linearity, hysteresis and non-repeatability. 2IP Rating is dependent on electrical termination selected. Contact us for more information. IP Rating applies when electrical connector is attached with the appropriate ingress protection.

*Up to six mA/V In, mA/V RTD/Tc, and mA/V Out.
For special order options, please contact our sales team.
