FlowLogic, Flow Control System & Readout

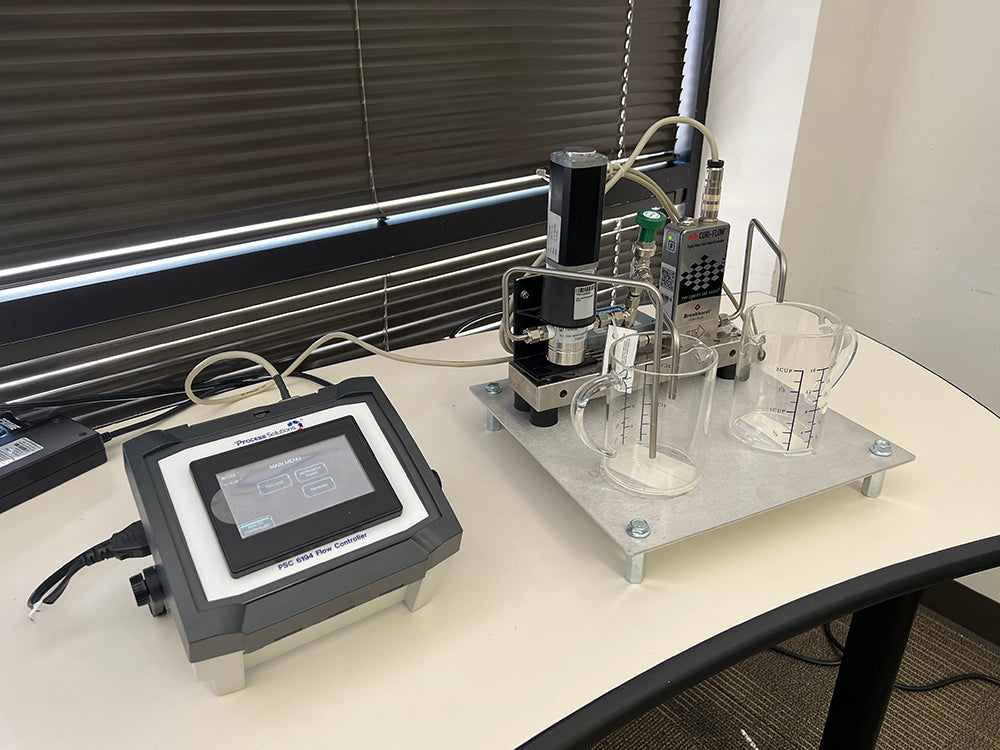

Take full command of your flow process with the FlowLogic Flow Control System (PSC6194). This intuitive, high-visibility interface empowers operators, engineers, as well as OEMs alike. Designed for seamless integration with a wide range of mass flow meters and controllers (especially from our partners like Bronkhorst), the FlowLogic brings all your critical setpoints, measured values, trends, totals, and more into one 4.3" full-color touchscreen. Whether using the FlowLogic as a plug-and-play controller and readout on the lab bench or if it's fully integrated into a complete dosing package, this gas and/or liquid flow meter controller unit delivers the best insight, control, and logging capabilities to improve the success of your application. Whether you’re managing gas flows in a chemical pilot plant, dosing liquids in a food & beverage process or controlling ultra-low flows for research, the FlowLogic puts powerful logic and control in your hands. It supports up to two mass flow controllers and two flow meters. Furthermore, it tracks totalized volumes and offers analog 4-20 mA / 0-10V IO or Modbus digital communication for modern automation infrastructure and a wide compatibility across common flow instrumentation.

FlowLogic Flow Control Systems and Readout

But it’s not just about specs — it’s about workflow efficiency. FlowLogic’s pre-programmed logic delivers setpoint control, range indication, trending and totalizing out of the box, thus drastically reducing setup time and operator training. For OEMs it becomes a turnkey read-out and control module that shortens your time-to-market; in addition, for process engineers, it becomes a trusted instrument in your control panel. Upgrade your process today and achieve tighter control, richer data visibility, as well as faster commissioning — all backed by Process Solutions Corp.’s expertise in flow instrumentation. The FlowLogic is the smart choice to make your flow processes smoother, safer, and also more scalable.

• 4.3" Color Touchscreen PLC
• Powers up to 2 flow controllers and 2 flow meters
• Analog and Modbus Interface
• Data logging capabilities
• User-friendly touchscreen interface
• Indication and Operation of:
  • Measured Value
  • Setpoint
  • Instrument Range
  • Trending Values Totalizer (limit, value, totalizer mode, new setpoint)

Preprogrammed Flow Control System for Liquid or Gas Flow Control

The FlowLogic is an all-in-one flow controller and readout unit that comes preprogrammed with standard flow control functions for a user friendly interface. The touchscreen HMI offers intuitive control and is also capable of data logging and other useful functions for batching or continuous production processes. Although standard packages are available, our engineers can work closely with your team to develop a unique flow controller that seamlessly integrates with your process. Whether your application involves gas flow or liquid flow such as liquid dosing applications, FlowLogic offers easy but powerful control.

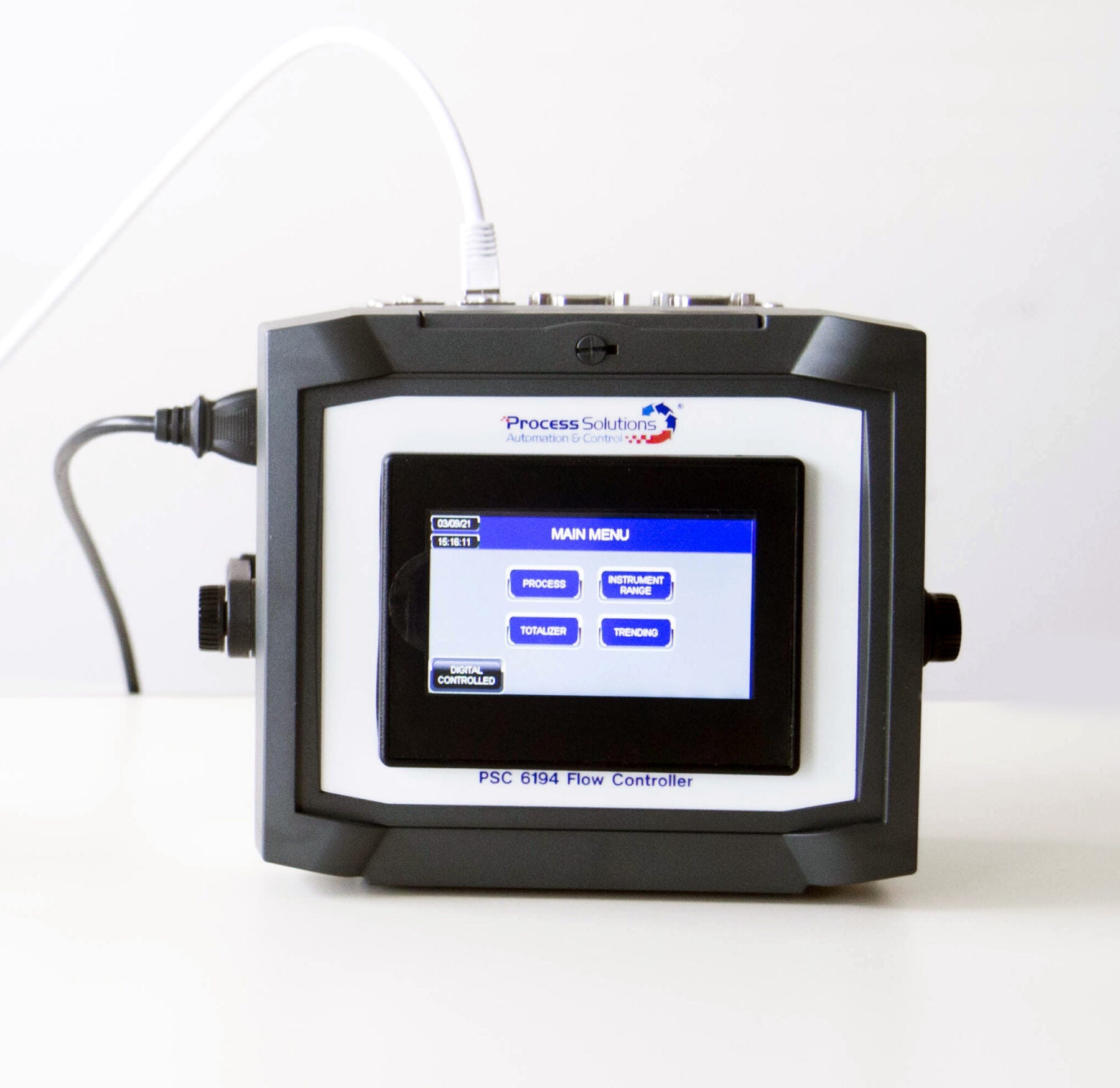

FlowLogic Flow Controller for MFCs and Readout System

• Compatibility (alphabetical): Alicat Scientific, Bronkhorst Low Flow, Brooks Instrument, Dwyer / Omega, Florite Mass Flow Control, Fluid Components International (FCI), HORIBA Ltd., Kobold Instruments, MKS Instruments, Sage Metering, Sensirion AG, Sierra Instruments, Teledyne Hastings, as well as more!
• Controller dimensions: 7.75 W x 7 H x 4.25 D
• Analog input/output: 4-20mA, 0-10Vdc
• Removable memory: microSD
• Power required: 24Vdc
• Ethernet LAN port
• Fieldbus: Analog (Sub-D 9 pin) Modbus (RJ45)
• Ratings: General purpose
• Display technology: 4.3" TFT resistive color, 3.53 H x 4.69 W (inches)
