These linear position sensors, from NewTek Sensor Solutions, are available in ranges of 0.1 inches (2.54mm) to 20 inches (500mm). The electrical connection is made through an axial mounted connector. In addition to being sealed to IP-68, the HI-750 Series windings are potted inside the housing with a 2 component epoxy, providing excellent protection against hostile environments.

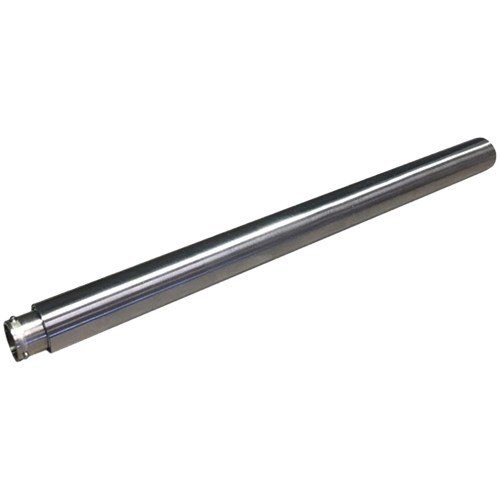

NewTek HI-750 Series Linear Position Transducers
- IP-68 welded 3/4 inch hermetically sealed steel housing
- Measurement ranges from 0.10 to 20 inches
- Linearity ±0.25% of Full Range Max (±0.1% Optional)
- Shock and vibration tolerant
- Wide operating temperature range (-15°F to 185°F)
- Standard and custom models available
- “Plug & Play” 4-20 mA compatible with most PLCs and controllers
Uses for LVDT Sensors
- Factory Automation
- Materials Testing
- Packaging Equipment
- Valve Position Sensing
- Corrosive Environments
- Long Cable Runs
| Model | NT-HI-750-100 | NT-HI-750-250 | NT-HI-750-500 | NT-HI-750-1000 | NT-HI-750-2000 | NT-HI-750-4000 | NT-HI-750-6000 | NT-HI-750-8000 | NT-HI-750-10000 | NT-HI-750-15000 | NT-HI-750-20000 |
| Parameter | |||||||||||
| Nominal Range (Inches) | 0.100 | 0.250 | 0.500 | 1.00 | 2.00 | 4.00 | 6.00 | 8.00 | 10.0 | 15.0 | 20.0 |
| Scale Factor (mA/inch) | 160.0 | 64.0 | 32.0 | 16.0 | 8.0 | 4.0 | 2.7 | 2.0 | 1.6 | 1.1 | 0.8 |
| Scale Factor (mA/mm) | 6.30 | 2.52 | 1.26 | 0.63 | 0.31 | 0.16 | 0.10 | 0.08 | 0.06 | 0.04 | 0.03 |
| Dimension "A" (inches) | 2.86 | 3.48 | 4.25 | 6.7 | 8.2 | 11.7 | 14.5 | 16.9 | 19.5 | 25.0 | 32.4 |
| Dimension "B" (inches) | 0.80 | 1.25 | 1.70 | 3.50 | 3.50 | 5.35 | 6.20 | 6.20 | 6.20 | 7.00 | 9.50 |
| Body Weight (ounces) | 1.8 | 2.4 | 2.9 | 4.1 | 4.9 | 8.1 | 10.5 | 114 | 12.0 | 16.2 | 20.4 |
| Core Weight (ounces) | 0.10 | 0.12 | 0.18 | 0.41 | 0.41 | 0.66 | 0.80 | 0.80 | 0.80 | 0.91 | 1.20 |
Other Details not Available
