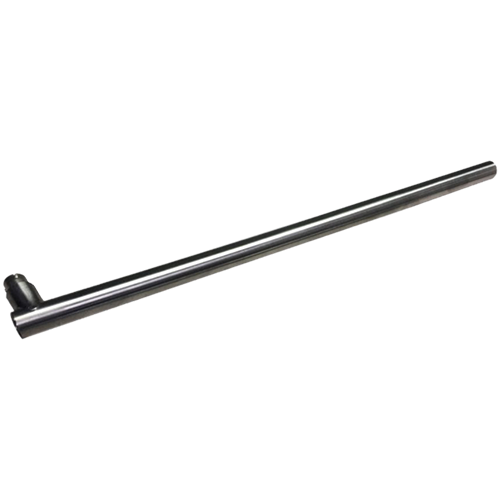

These linear position sensors, from NewTek Sensor Solutions, are available in ranges of 0.1 inches (2.54mm) to 20 inches (500mm). The electrical connection is made through a radial mounted connector, resulting in a reduced housing length. In addition to being sealed to IP-68, the HIR-750 Series windings are potted inside the housing with a 2 component epoxy, providing excellent protection against hostile environments.
NewTek HIR-750 Series Linear Position Transducers
- IP-68 welded 3/4 inch hermetically sealed steel housing
- Radially mounted connector
- Measurement ranges from? 0.10 to 20 inches
- Linearity ±0.25% of Full Range Max (±0.1% Optional)
- Shock and vibration tolerant
- Wide operating temperature range (-15°F to 185°F)
- Standard and custom models available
- “Plug & Play” 4-20 mA compatible with most PLCs and controllers
Uses for LVDT Sensors
- Factory Automation
- Materials Testing
- Packaging Equipment
- Valve Position Sensing
- Corrosive Environments
- Long Cable Runs
| Model | NT-HIR-750-100 | NT-HIR-750-250 | NT-HIR-750-500 | NT-HIR-750-1000 | NT-HIR-750-2000 | NT-HIR-750-4000 | NT-HIR-750-6000 | NT-HIR-750-8000 | NT-HIR-750-10000 | NT-HIR-750-15000 | NT-HIR-750-20000 |
| Parameter | |||||||||||
| Nominal Range (Inches) | 0.100 | 0.250 | 0.500 | 1.00 | 2.00 | 4.00 | 6.00 | 8.00 | 10.0 | 15.0 | 20.0 |
| Scale Factor (mA/inch) | 160.0 | 64.0 | 32.0 | 16.0 | 8.0 | 4.0 | 2.7 | 2.0 | 1.6 | 1.1 | 0.8 |
| Scale Factor (mA/mm) | 6.30 | 2.52 | 1.26 | 0.63 | 0.31 | 0.16 | 0.10 | 0.08 | 0.06 | 0.04 | 0.03 |
| Dimension "A" (inches) | 2.86 | 3.48 | 4.25 | 6.7 | 8.2 | 11.7 | 14.5 | 16.9 | 19.5 | 25.0 | 32.4 |
| Dimension "B" (inches) | 0.80 | 1.25 | 1.70 | 3.50 | 3.50 | 5.35 | 6.20 | 6.20 | 6.20 | 7.00 | 9.50 |
| Body Weight (ounces) | 2.1 | 2.7 | 3.2 | 4.4 | 5.2 | 8.4 | 10.8 | 11.7 | 12.3 | 16.5 | 20.7 |
| Core Weight (ounces) | 0.10 | 0.12 | 0.18 | 0.41 | 0.41 | 0.66 | 0.80 | 0.80 | 0.80 | 0.91 | 1.20 |
Other Details not Available
