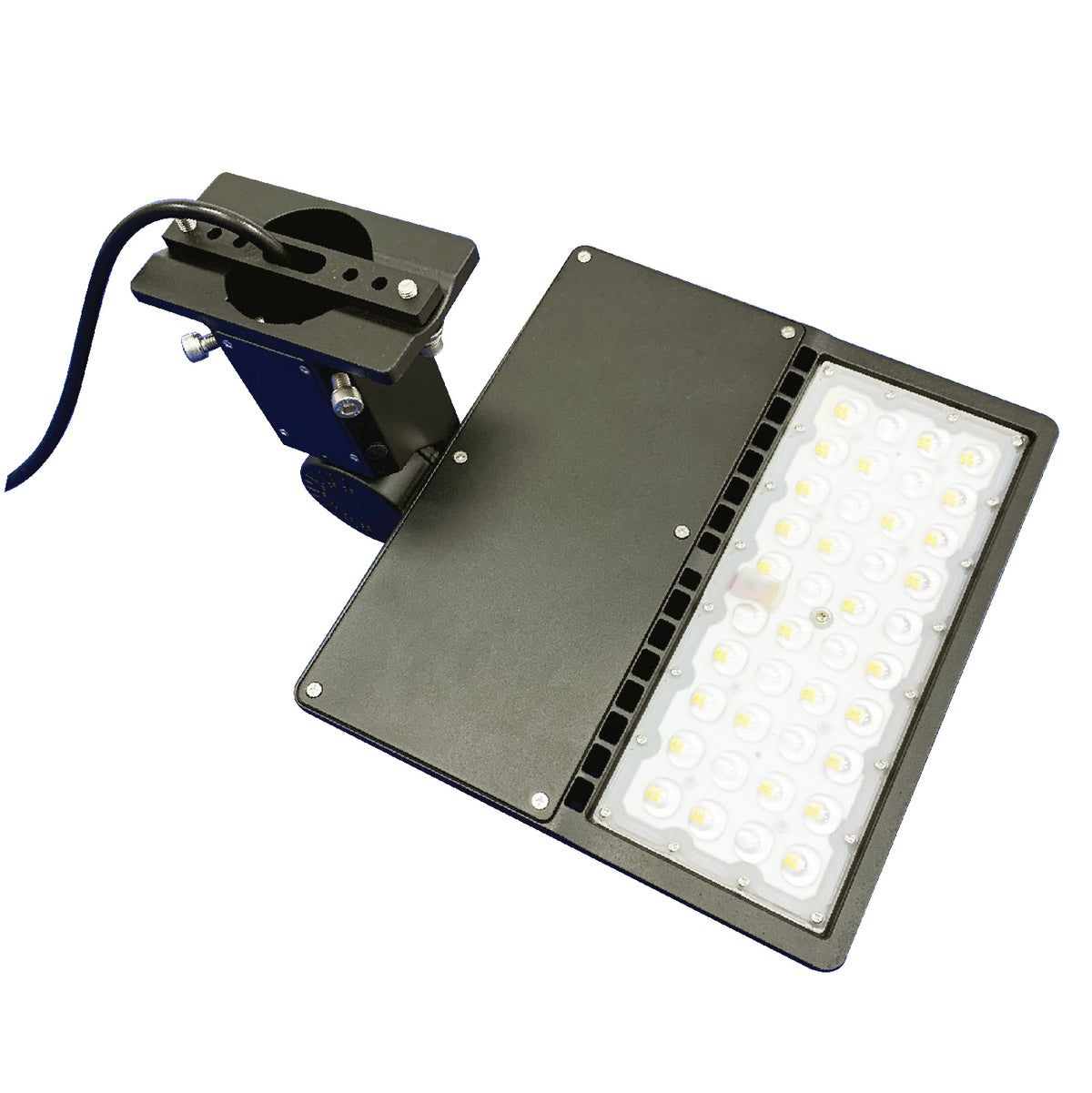

The Horner Lighting Atlas is a high-output LED shoebox for parking lots, perimeters, pathways, general area, and flood applications. A lightweight, low-profile cast aluminum housing and a single universal bracket that fits round poles, square poles, slip fitters, and walls keep installs simple. Three wattages cover everything from walkways to large lots.
Key Features
- 15,000 to 36,000 lumens, up to 150 lm/W
- Replaces 250 to 1,000 W HID fixtures, typical payback 12 to 24 months
- Typical mounting height 15 to 35 ft
- Cast aluminum-magnesium alloy housing, low profile
- Electrophoresis plus TGIC powder coat for corrosion protection
- UV-stable polycarbonate lens resists yellowing
- Universal mount: round pole, square pole, slip fitter, and wall
- Quality driver with 20 kV surge protection standard
- 7-pin socket for third-party sensors and controls
- Operating ambient -40°C to 50°C
- IP65 dust and water protection, UL wet-rated
- 5-year warranty
Applications
- Parking lots and dealer/retail lots
- Trails, walkways, and pedestrian paths
- Architectural building lighting
- Security and perimeter lighting
- Flood and wall washing
Power Options
| Adder | Description |
|---|---|
| P1 | On/Off, 120 to 277 VAC |
Lens Options (special order)
| Part Number | Description |
|---|---|
| ETG-SBSL-02M-1 | Type 2 Medium, for 100 to 150 W fixtures |
| ETG-SBSL-02M-2 | Type 2 Medium, for 240 W fixture |
| ETG-SBSL-04M-1 | Type 4 Medium, for 100 to 150 W fixtures |
| ETG-SBSL-04M-2 | Type 4 Medium, for 240 W fixture |
| ETG-SBSL-05M-1 | Type 5 Medium, for 100 to 150 W fixtures |
| ETG-SBSL-05M-2 | Type 5 Medium, for 240 W fixture |
Lens options are special order. Contact us for lead times.
Hardware Options (additional cost)
| Part Number | Description |
|---|---|
| ETG-BKT-SBS-UNV | Universal mounting bracket for round pole, square pole, slip fitter, and wall mounting |
| ETG-SEN-7P-MV-DIM | 7-pin daylight sensor with constant lux maintenance and midnight dimming |
Pricing, lead times, and custom configurations: call Process Solutions at (281) 491-3833 or email sales@psctexas.com.
Model Lineup
| Model | Weight | Dimensions | CRI | CCT | Lumens | Watts | Lm/W | L90 | L70 | EPA |
|---|---|---|---|---|---|---|---|---|---|---|
| ETG-SBS100-WL740-P1-L6-03M | 11.5 lbs | 17.5"L x 15"W x 3.3"H | >70 | 4000K | 15,000 | 100 | 150 | >37,000 hrs | >72,000 hrs | 1.9 ft² |
| ETG-SBS150-WL740-P1-L6-03M | 11.5 lbs | 17.5"L x 15"W x 3.3"H | >70 | 4000K | 22,500 | 150 | 150 | >37,000 hrs | >72,000 hrs | 1.9 ft² |
| ETG-SBS240-WL740-P1-L6-03M | 13.5 lbs | 17.5"L x 15"W x 3.3"H | >70 | 4000K | 36,000 | 240 | 150 | >37,000 hrs | >72,000 hrs | 1.9 ft² |
Contact us for additional 4000K and 5000K options.
