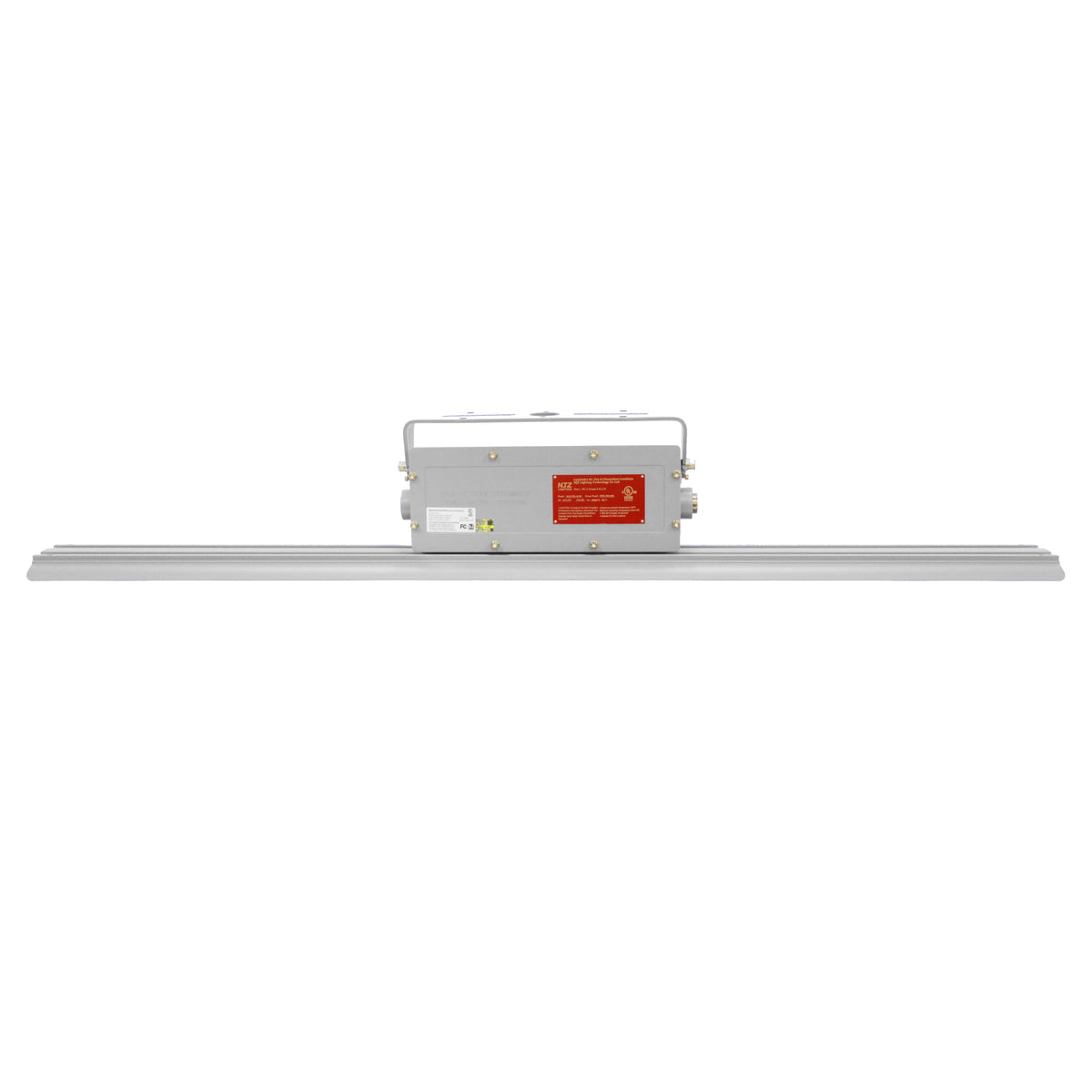

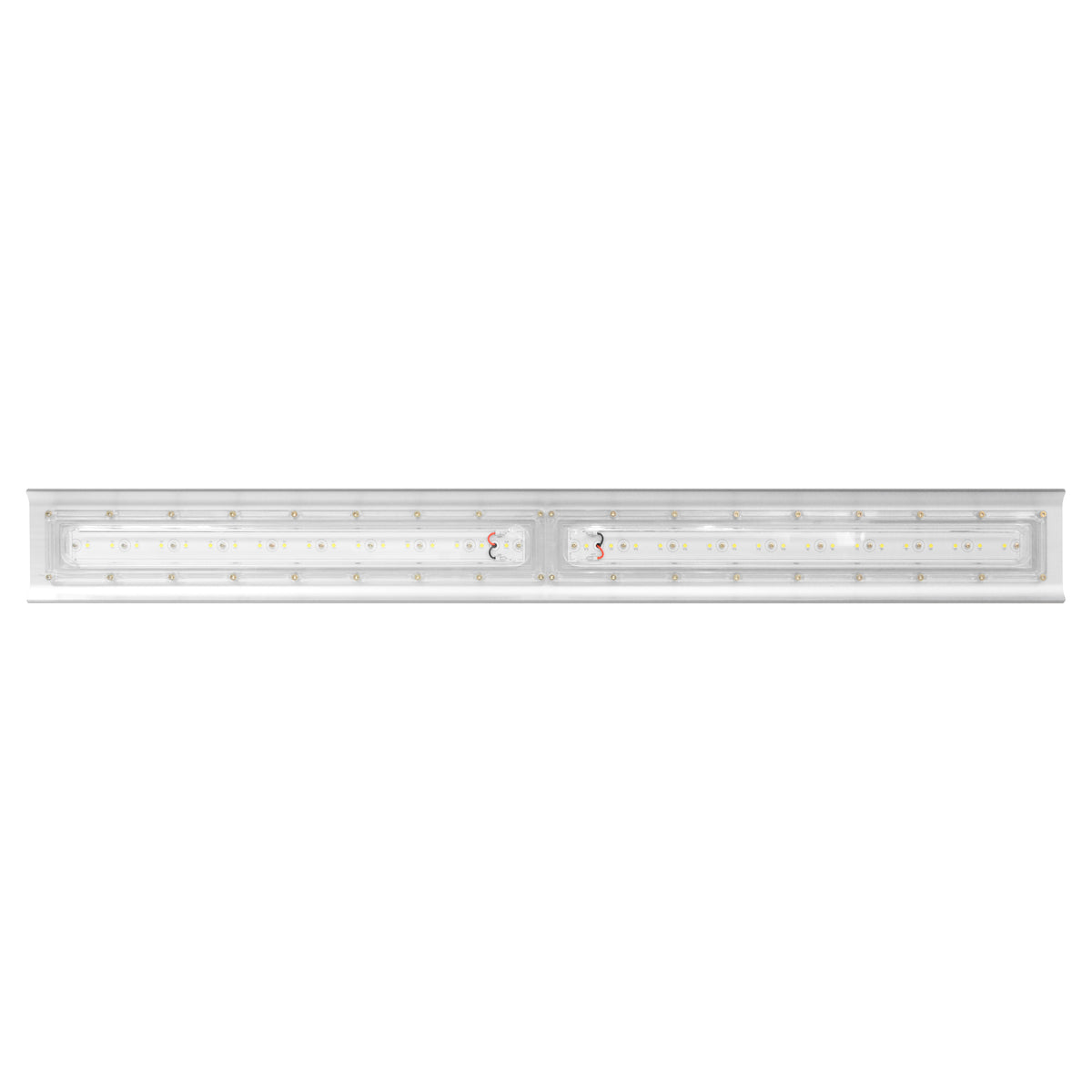

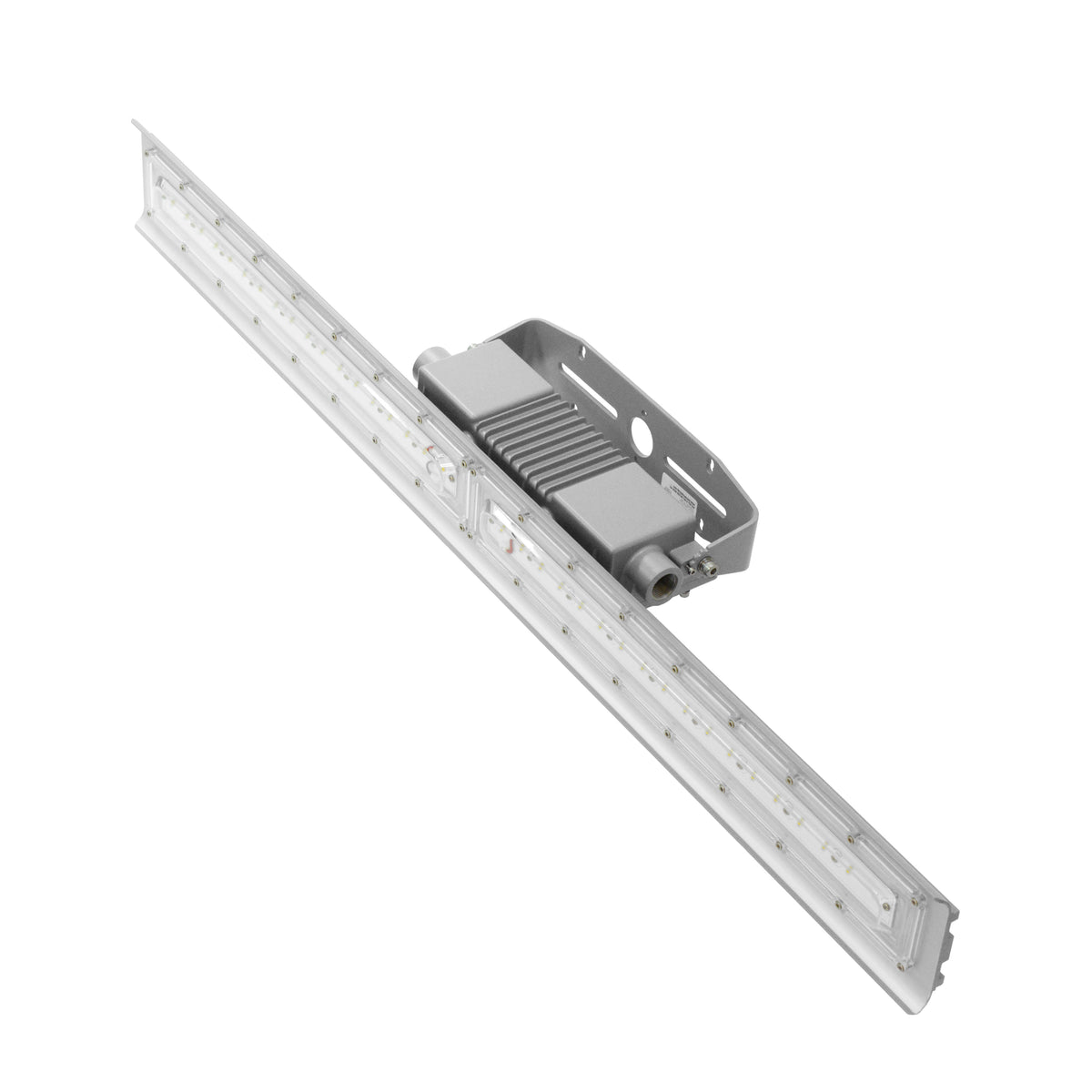

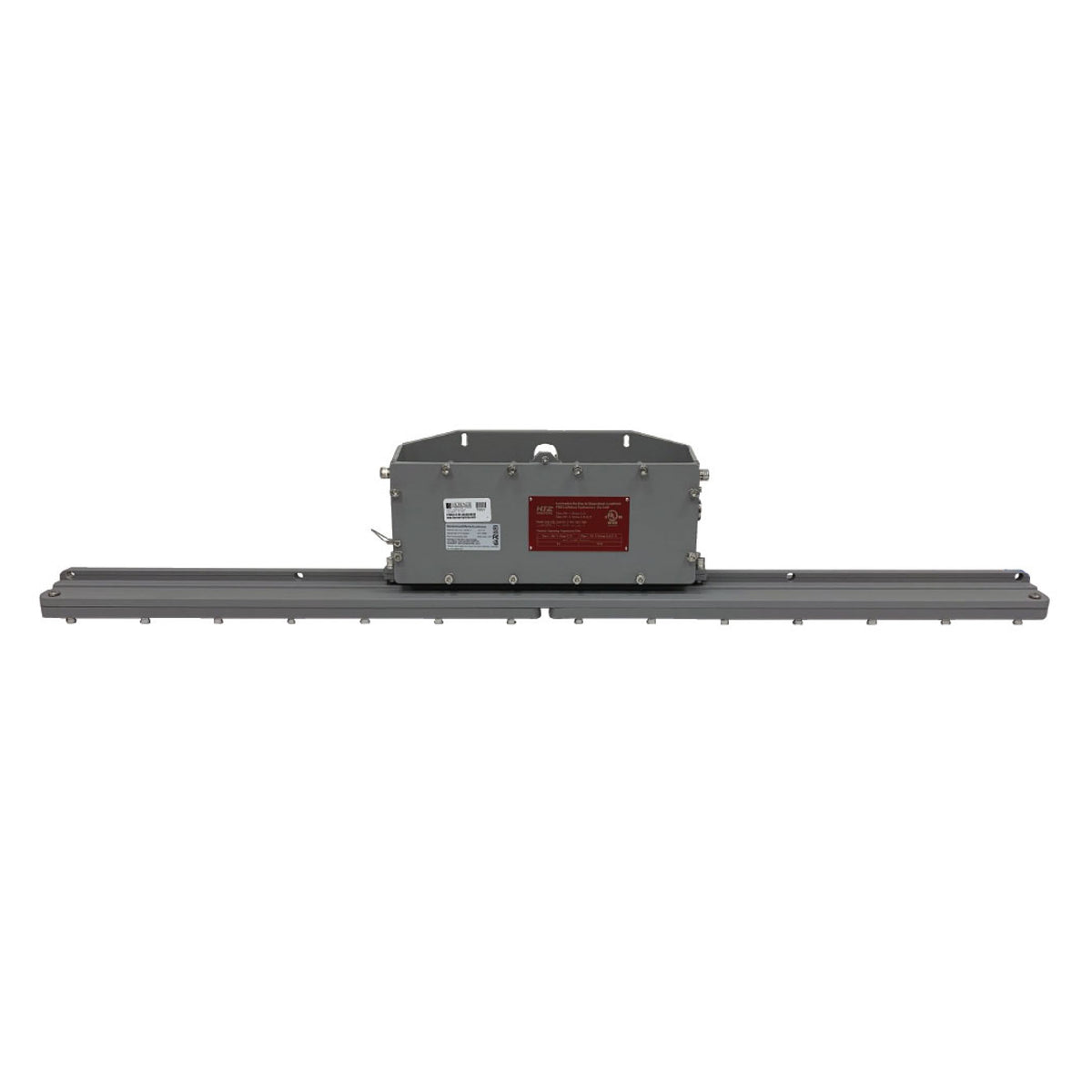

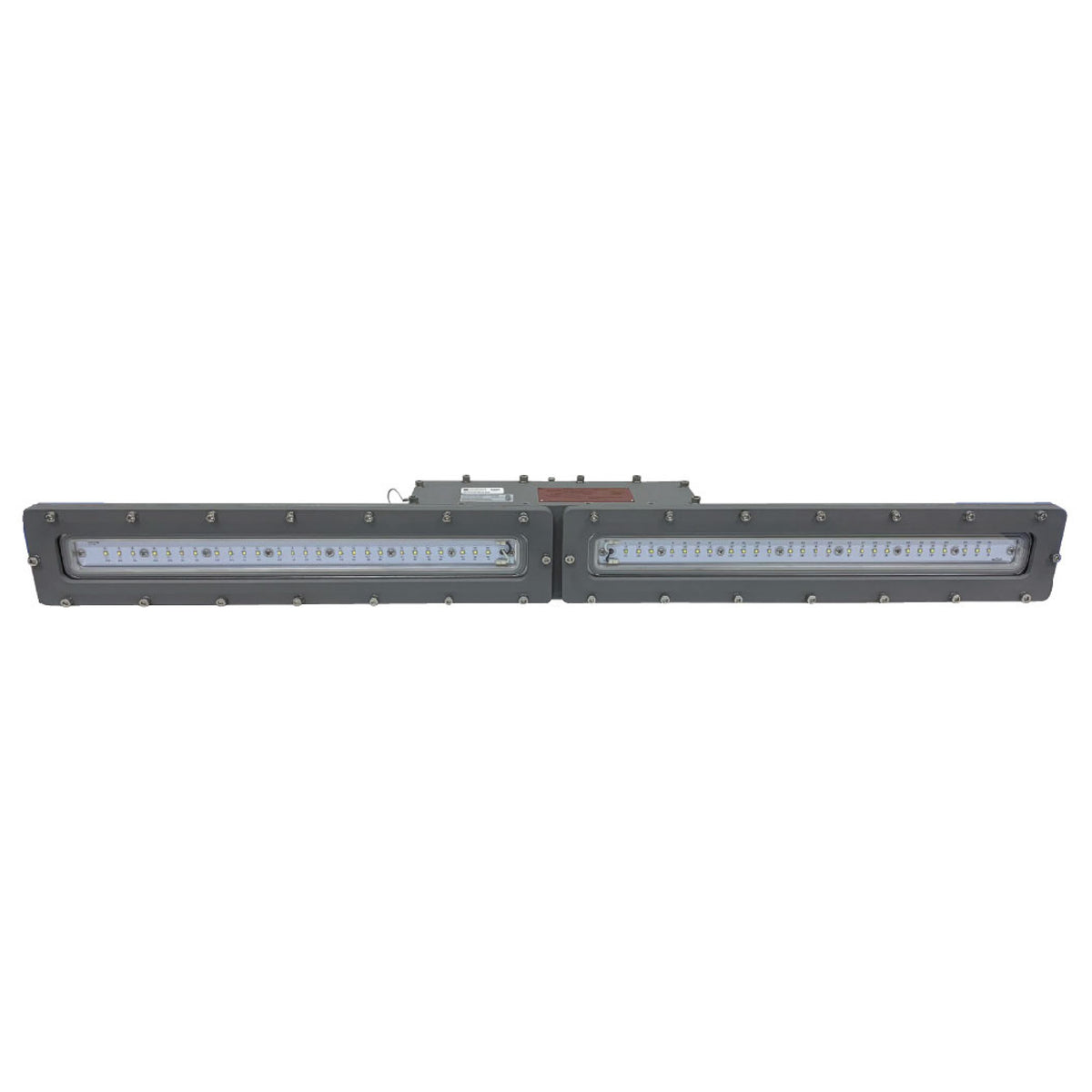

Horner Lighting Hazardous Location Linear (HLL) - Explosion-Proof 80W LED, Class I Div 1 & Div 2

The Horner Lighting Hazardous Location Linear (HLL) is an explosion-proof 4 ft LED linear for sites where flammable gases, vapors, or combustible dusts may be present, as defined by the NEC. Its copper-free, corrosion-resistant aluminum alloy housing stands up to vibration, dust, moisture, weather, and high ambient heat, cutting maintenance time and cost in refineries, chemical plants, and processing facilities.

Key Features

• Explosion-proof, copper-free die-cast aluminum alloy housing
• Up to 10,400 lumens at 80 W (up to 130 lm/W)
• 110° beam angle, typical mounting height 8 to 15 ft
• Premium LEDs with superior thermal management
• Quality driver with integrated 4 kV surge protection
• 120 to 277 VAC input standard; 480 VAC input on P2 models
• Operating ambient -40°C to 50°C
• Atmospheric pressure 12.5 to 15.4 psi
• IP66 dust and water protection, UL wet-rated
• Surface, conduit, and bracket mounting options
• DLC Premium, may qualify for utility rebates (see the DLC QPL at designlights.org)
• 5-year warranty

Certifications

• C1D1 models: UL844; Class I Division 1, Groups C, D; Class I Division 2, Groups A, B, C, D; UL8750; UL924; UL1598A; DLC Premium
• C1D2 models: UL844; Class I Division 2, Groups A, B, C, D; Class II Division 1, Groups E, F, G; Class III; UL1598A; DLC Premium

Pricing, lead times, and custom configurations: call Process Solutions at (281) 491-3833 or email sales@psctexas.com.
