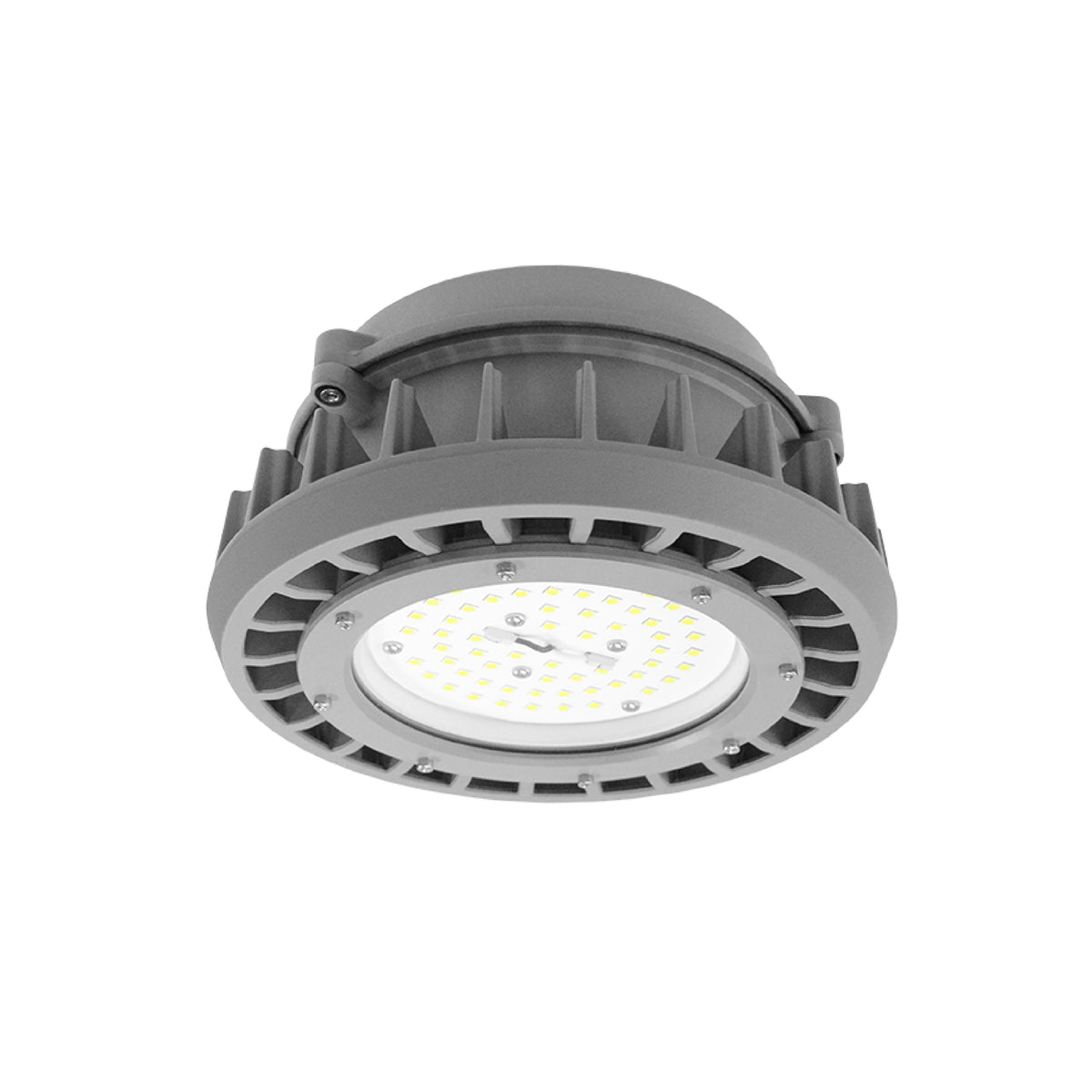

The Horner Lighting Hazardous Low Bay (HLB) is an explosion-proof LED low bay for low mounting heights in chemical plants, processing facilities, refineries, and marine and bridge applications. The copper-free, corrosion-resistant die-cast aluminum housing handles vibration, dust, moisture, weather, and heat, and at 11 lbs it can be hung by one person.
Key Features
- Explosion-proof, copper-free die-cast aluminum alloy housing
- Up to 9,750 lumens at 65 W (150 lm/W)
- Universal 120 to 277 VAC input; 480 VAC on P2 models
- Quality driver with integrated 10 kV surge protection
- Instant strike, shock- and vibration-resistant LEDs
- 110° beam angle standard, 120° optional
- Adjustable bracket for wall or ceiling mounting, 0° to 60°
- Operating ambient -40°C to 60°C
- Atmospheric pressure 12.5 to 15.4 psi
- IP66, IK08 impact rating, WF2 corrosion-proof grade
- UL1598A Marine Outside Type (salt water)
- DLC listed, 5-year warranty
Certifications
- UL844; Class I Division 2, Groups A, B, C, D; Class II Division 1, Groups E, F, G; Class II Division 2, Groups F, G; Class III Division 1; UL1598A Marine Outside Type (Salt Water); DLC
Mounting Options & Accessories (sold separately)
| Part Number | Description |
|---|---|
| ETG-BKT-HLB-B30 | Ceiling Mount |
| ETG-BKT-HLB-B32 | 1-1/4" Stanchion 25° Mount |
| ETG-BKT-HLB-B33 | 1-1/4" Stanchion 90° Mount |
| ETG-BKT-HLB-B34 | Wall 25° Mount |
| ETG-BKT-HLB-B35 | Wall 90° Mount |

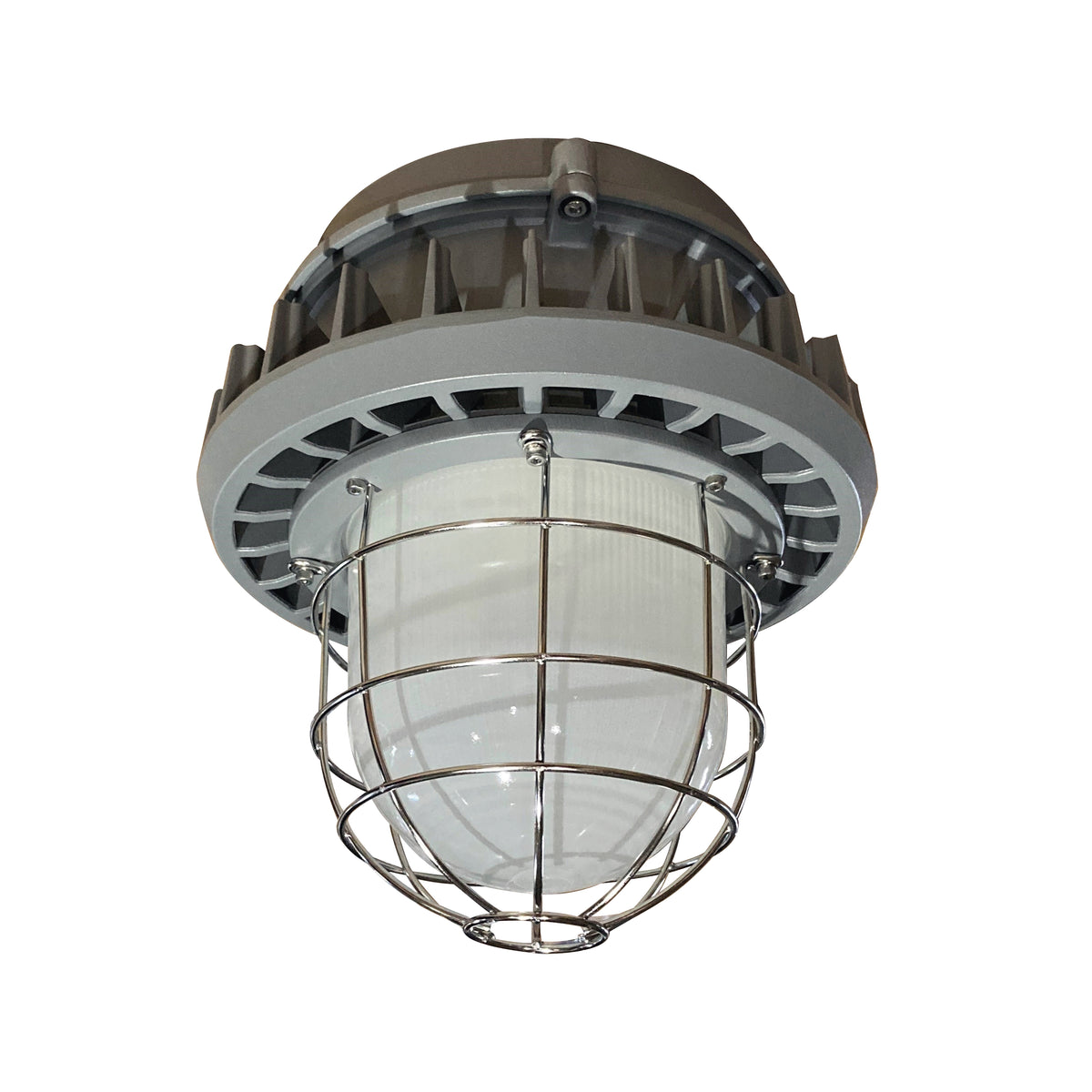

| ETG-HLB-DOME | Dome & Wire Guard |
| ETG-HLB-SLD | 25° Glare Shield (minimum order quantity applies) |
Pricing, lead times, and custom configurations: call Process Solutions at (281) 491-3833 or email sales@psctexas.com.
Model Lineup
| Model | Weight | Dimensions | CRI | CCT | Lumens | Watts | Lm/W | L70 |
|---|---|---|---|---|---|---|---|---|
| Class I Div. 2, Groups A, B, C, D; Class II Div. 1, Groups E, F, G; Class II Div. 2, Groups F, G; Class III Div. 1 | ||||||||
| ETG-HLB-C1D2-WL850-65W-B* | 11 lbs | 10.3"D x 6.1"H | 70 | 5000K | 9,750 | 65 | 150 | >150,000 hrs |
| ETG-HLB-C1D2-WL850-65W-B1 | 11 lbs | 10.3"D x 6.1"H | 70 | 5000K | 9,750 | 65 | 150 | >150,000 hrs |
| ETG-HLB-C1D2-WL850-60W-P2-B* | 11 lbs | 10.3"D x 6.1"H | 70 | 5000K | 9,000 | 60 | 150 | >150,000 hrs |
| ETG-HLB-C1D2-WL850-60W-P2-B1 | 11 lbs | 10.3"D x 6.1"H | 70 | 5000K | 9,000 | 60 | 150 | >150,000 hrs |
-B1 models include a bracket with 3/4" conduit entry. -B models require one of the mounts below (sold separately). No suffix = On/Off 120 to 277 VAC input. -P2 suffix = On/Off 480 VAC input.
