All models in this listing are covered by Horner Lighting's BABAA Statement of Compliance.
Horner Lighting White LED Linears are 4 ft and 8 ft LED fixtures for indoor high bay, low bay, and aisle applications in industrial, manufacturing, warehouse, and retail spaces. They share the proven extruded aluminum design of Horner's Remote Phosphor linears, fitted with high-quality white LEDs, and can be configured with a wide range of power, dimming, sensor, and mounting adders.
Key Features
- Instant strike
- Universal 120 to 277 VAC input; 480 VAC option (P2)
- Dimmable option for use with occupancy sensors
- On/off motion sensor option
- Operating ambient -40°C to 50°C
- Extruded aluminum housing
- No horizontal dust-collecting surfaces, no glass, no mercury
- Select models DLC certified
- Made in USA with global components
- Build America, Buy America Act (BABAA) compliant
- 5-year warranty
Power & Color Adders (built on the light)
| Adder | Description | 4 ft | 8 ft |
|---|---|---|---|
| Power | |||
| P1 (standard) | On/Off, 120 to 277 VAC | Yes | Yes |
| P2 | 480 VAC | Yes | Yes |
| P4 | Dimming, 120 to 277 VAC | Yes | Yes |
| Color of Light and CRI | |||
| C1 (standard) | 5000K, 80 CRI | Yes | Yes |
| C2 | 4000K, 80 CRI | Yes | Yes |
Additional Adders (built on the light)
| Adder | Description |
|---|---|
| B14 | Raised Unistrut mount (recommended for 2-tube) |
| D4 | Rotary dimmer |
| G1 | 6 ft cord, 120 VAC NEMA 5 |
| G2 | 6 ft cord, 277 VAC NEMA 7 |
| M1 | On/Off motion |
| M2 | On/Off motion, cold |
| M6 | Motion sensor with step dimming |
| R1 | Remote-mount driver with 10 ft cable |
| -011 | Wired for battery backup |
| -044 | End gaskets for dust and debris (1 through 6 tube) |
Suggested Reflectors (sold separately)
| Part Number | Description |
|---|---|
| ETG-WLBRO | Low bay 4 ft white reflector with 2 clips, 98% diffuse reflectance |
| ETG-LBR1 | Low bay 4 ft specular reflector with 2 clips, 52° distribution |
| ETG-HBR1 | High bay 4 ft specular reflector with 2 clips, 44° distribution |
| ETG-ABR1 | Aisle bay 4 ft specular reflector with 2 clips, 33° distribution |
Additional Accessories (sold separately)
| Part Number | Description |
|---|---|
| ETG-BKT-B27 | Set of 2 clip-on mounting brackets for Unistrut or surface mounting (mounts one 1-tube linear) |
| ETG-DIM-100K-06 | 100K potentiometer dimming assembly, 6 ft lead |
| ETG-DIM-100K-12 | 100K potentiometer dimming assembly, 12 ft lead |
| ETG-DIM-SLD-06 | Slide dimmer in 2x4 box, 1/2" conduit knockouts, 6 ft cables |
| ETG-DIM-SLD-12 | Slide dimmer in 2x4 box, 1/2" conduit knockouts, 12 ft cables |
Pricing, lead times, and custom configurations: call Process Solutions at (281) 491-3833 or email sales@psctexas.com.
Model Lineup
| Model | Weight | Dimensions | CRI | CCT | Lumens | Watts | Lm/W | L70 | L90 |
|---|---|---|---|---|---|---|---|---|---|
| 4 ft Linear | |||||||||

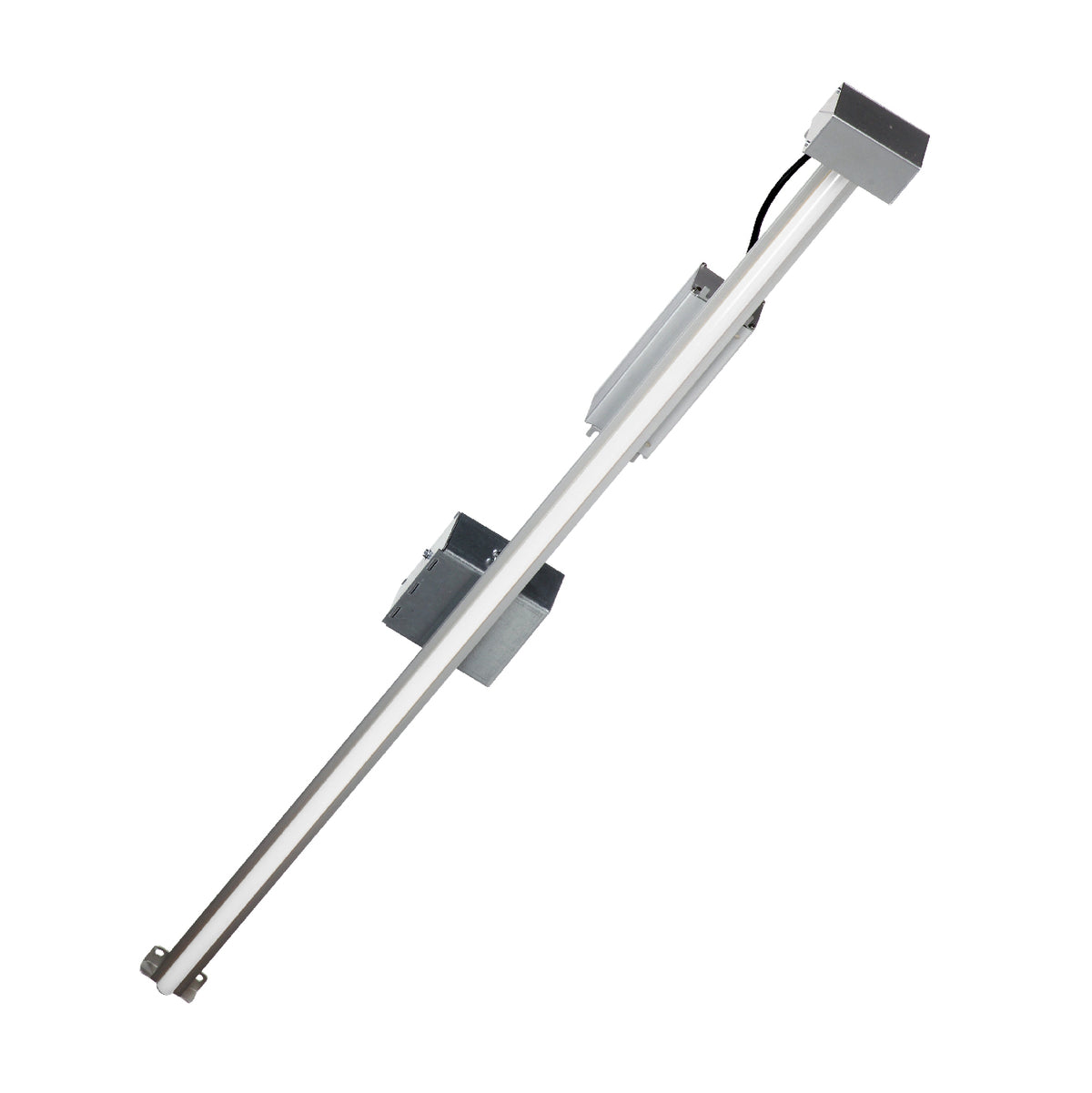

| ETG-WLL-1080 (1 module) | 3.53 lbs | 49"L x 3.1"W x 3"H | 80+ | 5000K | 11,360 | 80 | 142 | >220,000 hrs | >60,000 hrs |

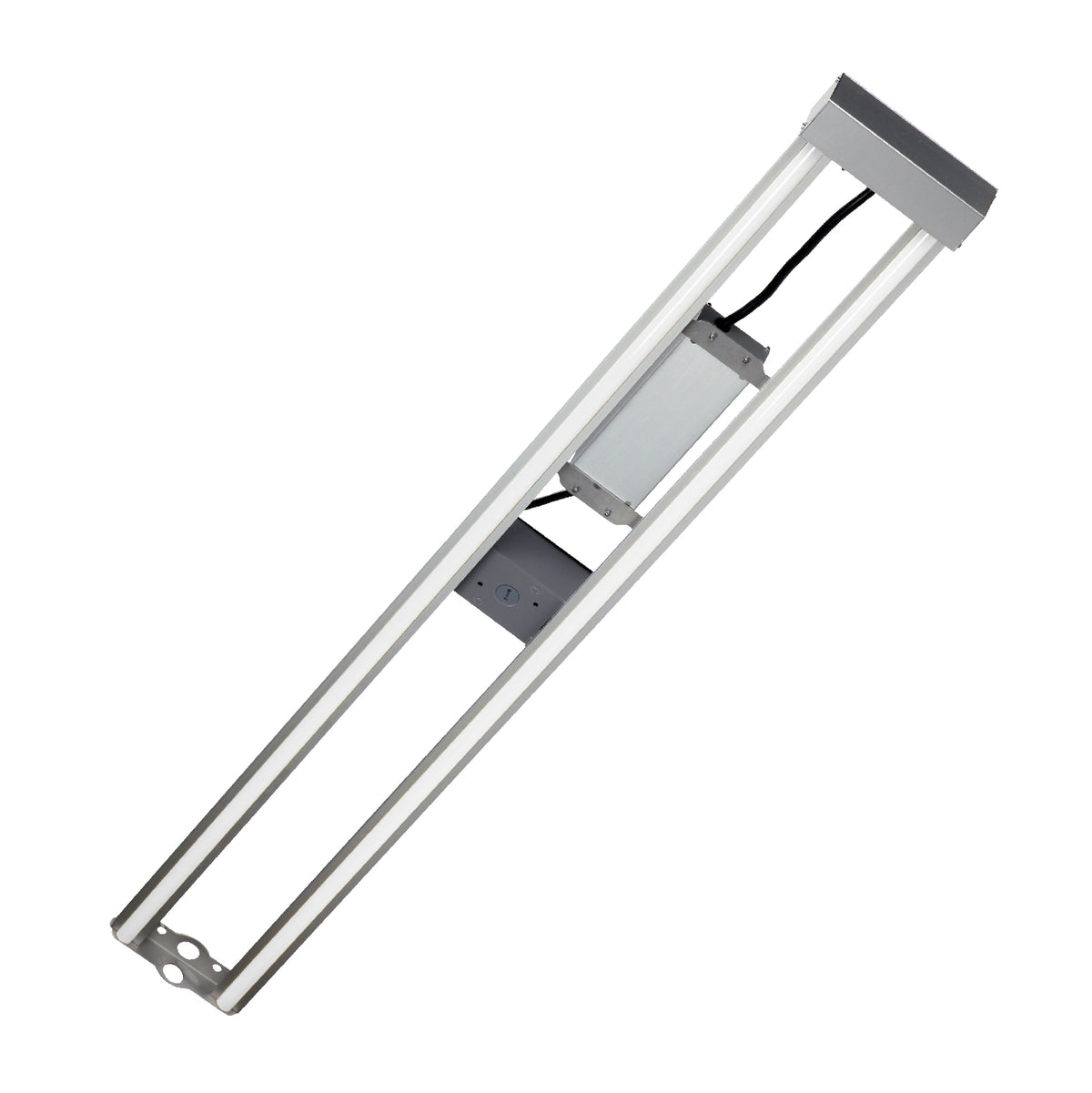

| ETG-WLL-2160 (2 module) | 7.3 lbs | 49"L x 6.1"W x 3"H | 80+ | 5000K | 22,720 | 160 | 142 | >220,000 hrs | >60,000 hrs |

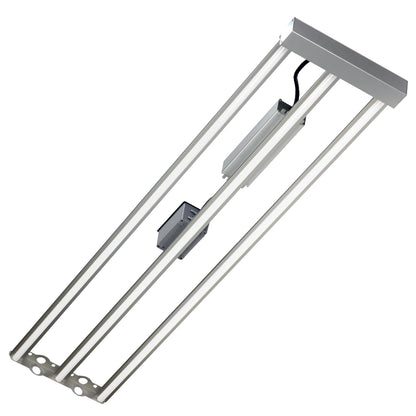

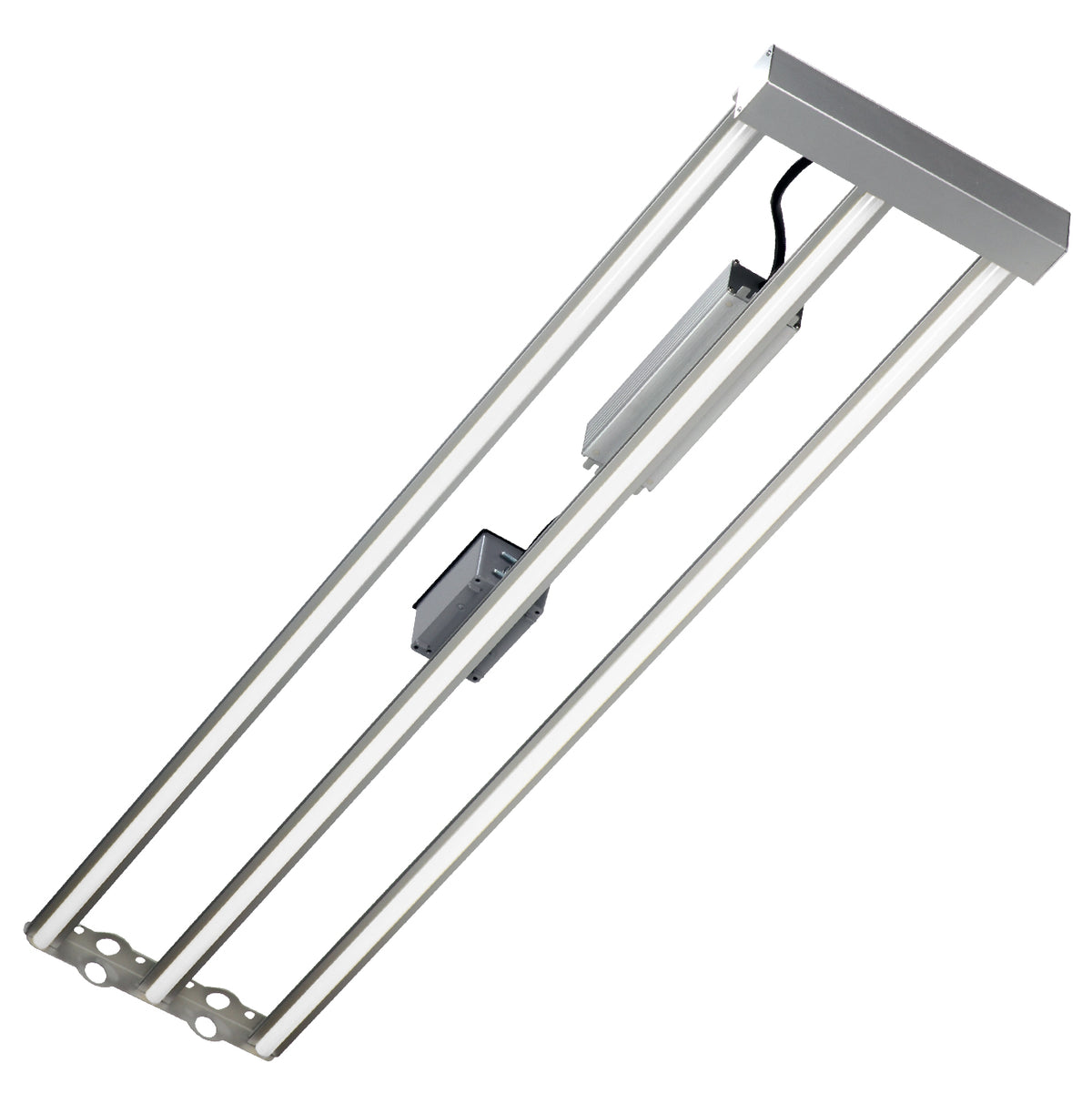

| ETG-WLL-3240 (3 module) | 10.9 lbs | 49"L x 10.6"W x 3"H | 80+ | 5000K | 34,080 | 240 | 142 | >220,000 hrs | >60,000 hrs |

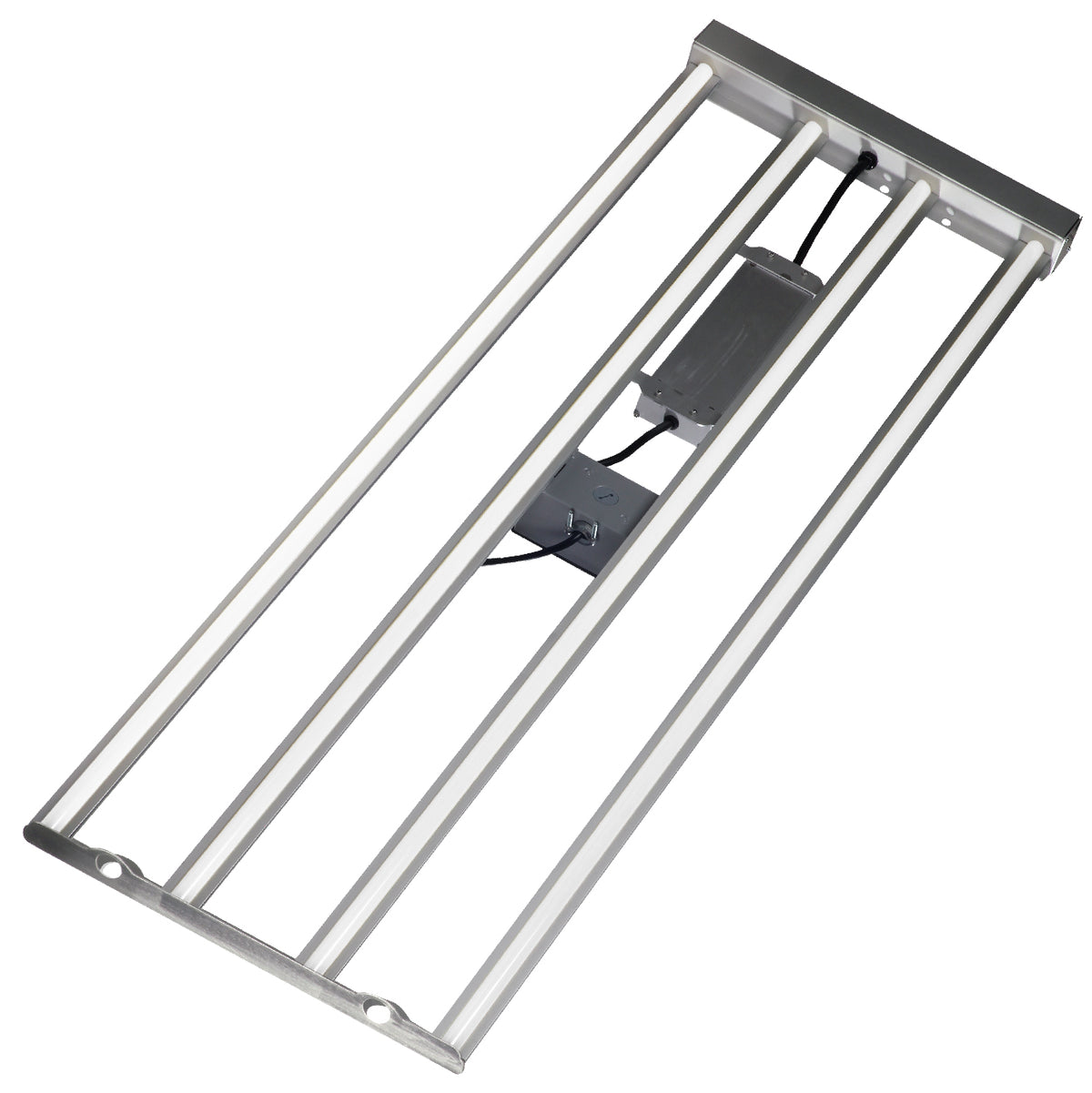

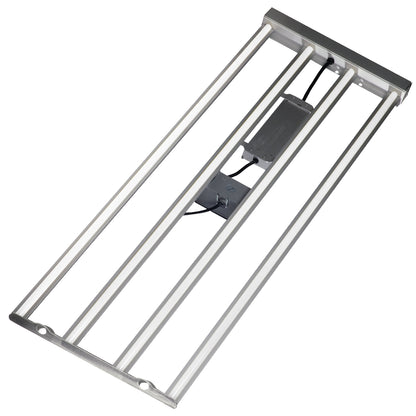

| ETG-WLL-4320 (4 module) | 14.6 lbs | 49"L x 15.1"W x 3"H | 80+ | 5000K | 45,440 | 320 | 142 | >220,000 hrs | >60,000 hrs |

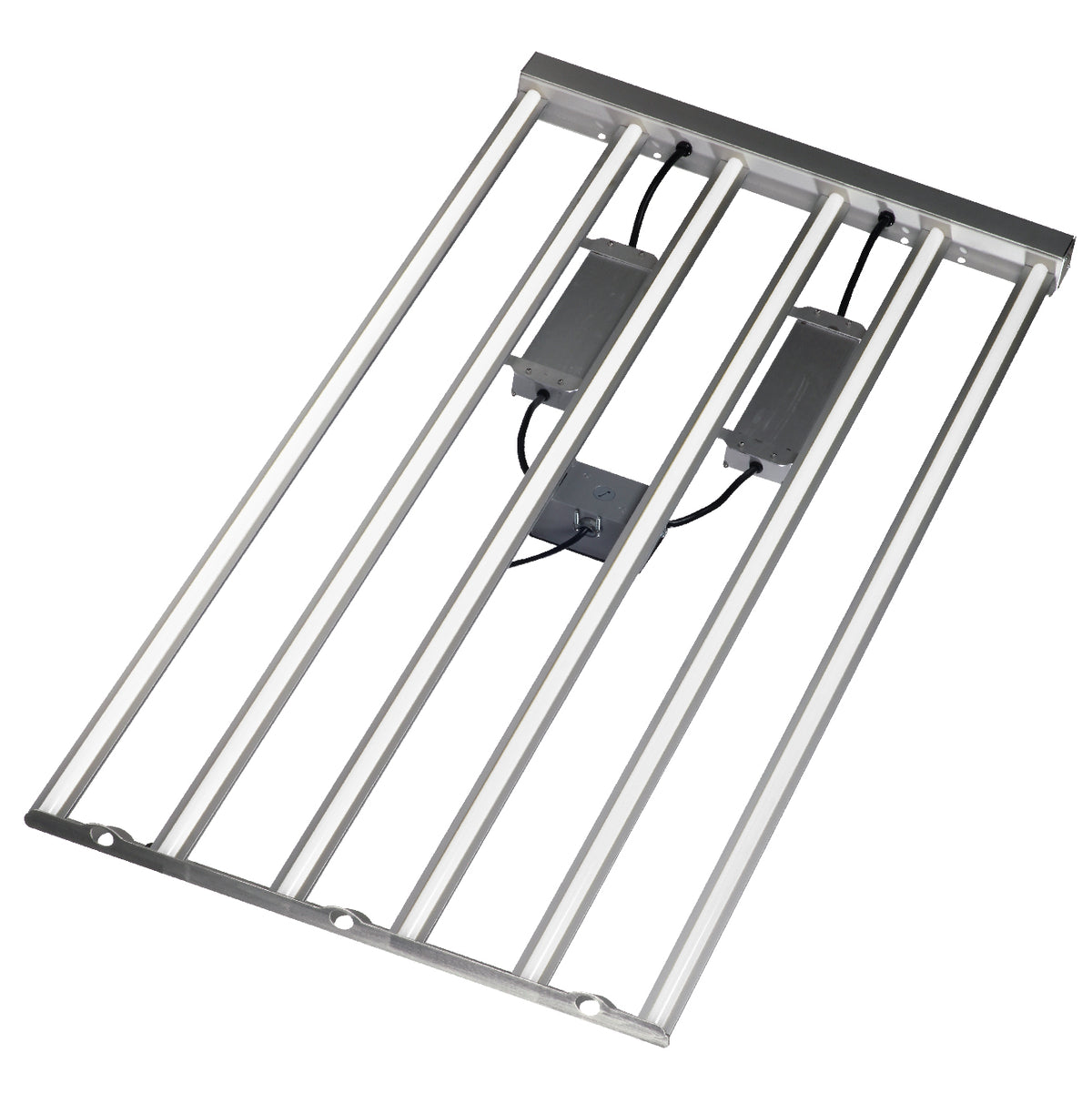

| ETG-WLL-6480 (6 module) | 21.8 lbs | 49"L x 24.1"W x 3"H | 80+ | 5000K | 68,160 | 480 | 142 | >220,000 hrs | >60,000 hrs |
| 8 ft Linear | |||||||||

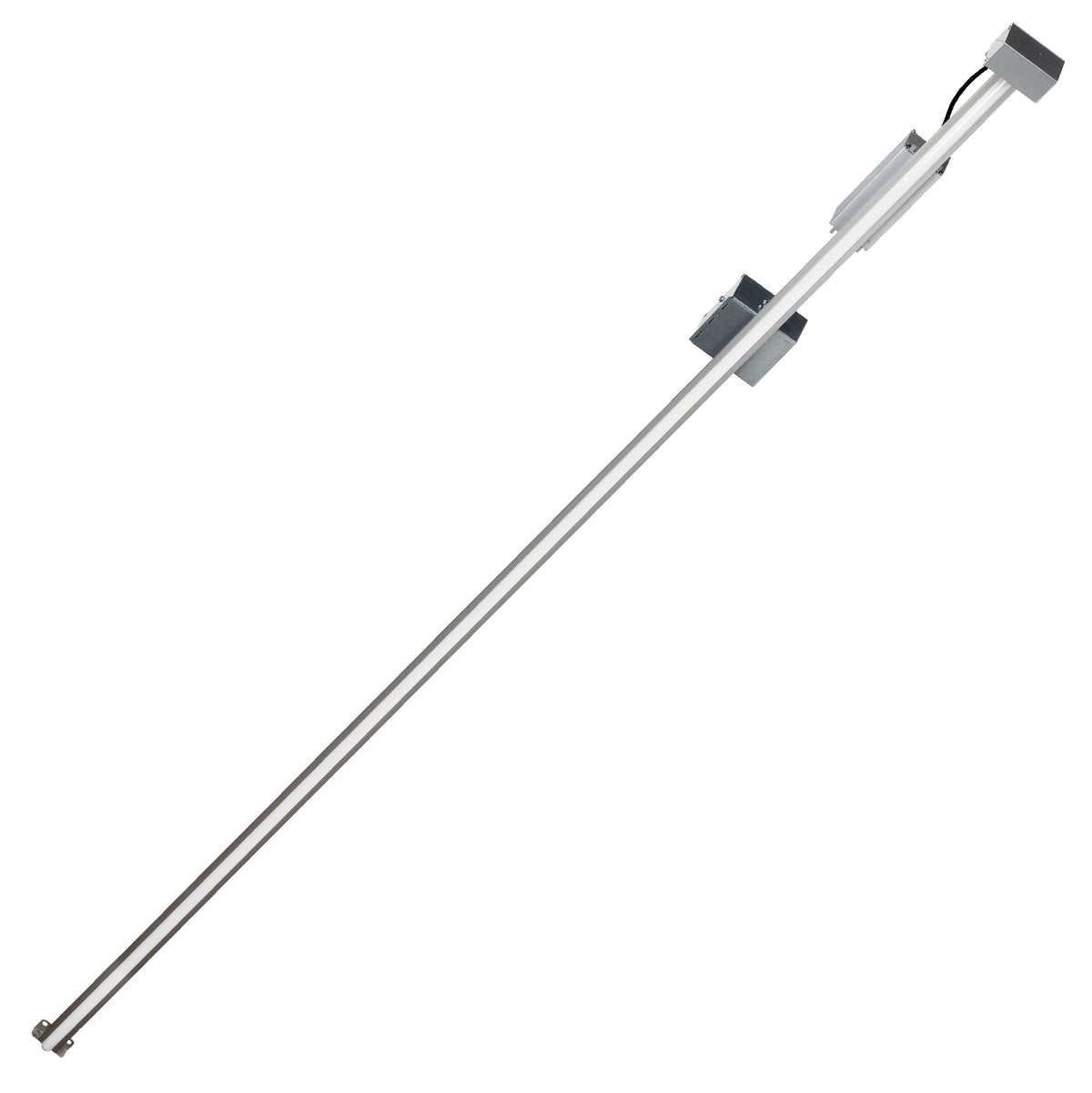

| ETG-W8LL-1080 (1 module) | 7.5 lbs | 96"L x 3.1"W x 3"H | 80+ | 5000K | 12,080 | 80 | 151 | >220,000 hrs | >60,000 hrs |
| ETG-W8LL-1160 (1 module) | 7.5 lbs | 96"L x 3.1"W x 3"H | 80+ | 5000K | 22,720 | 160 | 142 | >220,000 hrs | >60,000 hrs |

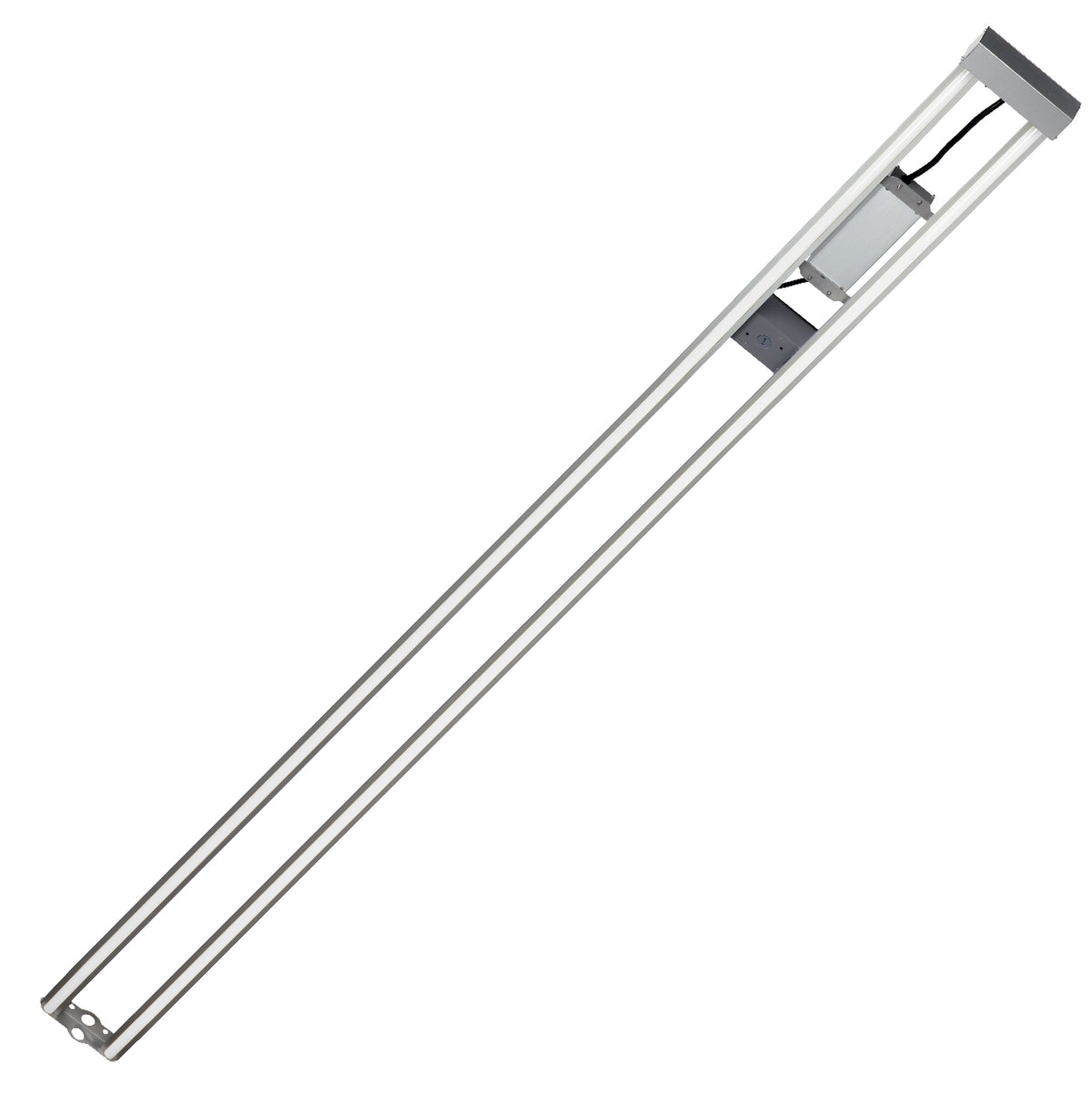

| ETG-W8LL-2320 (2 module) | 14.8 lbs | 96"L x 6.1"W x 3"H | 80+ | 5000K | 45,440 | 320 | 142 | >220,000 hrs | >60,000 hrs |
