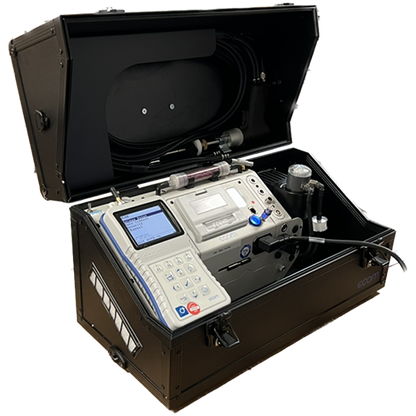

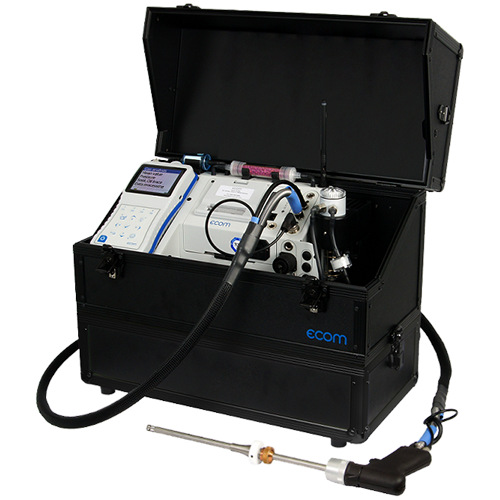

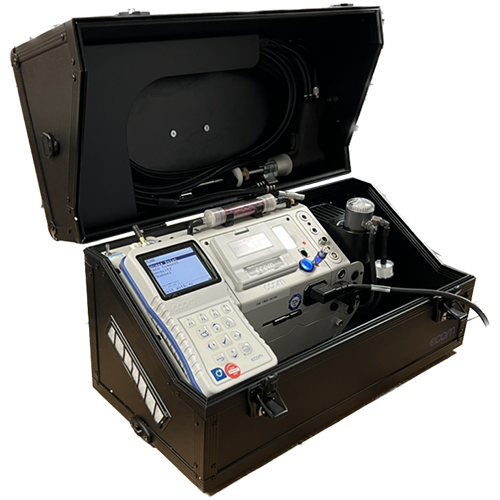

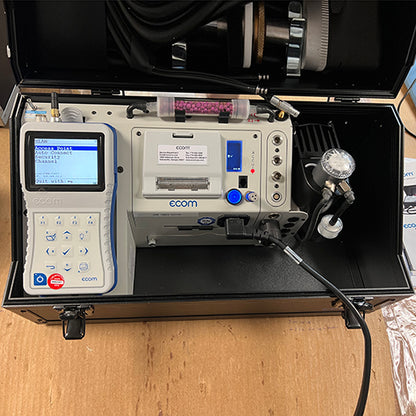

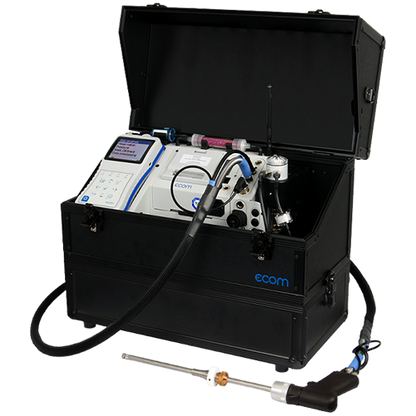

ecom-J2KNpro Expert, Emissions Analyzer

Advanced features of the ecom-J2KNpro Expert emissions analyzer include stack flow velocity, NDIR bench, fresh air bypass switch, heated sensor block for thermal stability, onboard heated line power connection, dual-range CO sensors for high accuracy in rich and lean conditions, and the ability to set up automatic test cycling for unattended operation. The J2KNpro Expert emissions analyzer from ECOM is used for fuel efficiency testing, combustion tuning, maintenance checks, in addition to emissions compliance reporting. The types of fuel that the J2KNpro Series can test include natural gas, oil, diesel, coal, wood, biomass, butane, propane, biodiesel, as well as other alternative fuels. The ecom-J2KNpro Expert can also test gasoline, but requires the NDIR bench (for CO).

• 15 foot sample line*
• CO purge pump to prevent over-saturation
• Peltier cooler sample conditioner
• NDIR bench for measuring CO2, high CO, as well as CH4
• peristaltic pump for automatic moisture removal
• heated sensor block for thermal stability
• digital flow meter display
• fresh air purge switch from the remote
• dual range CO sensors
• self air leak detection
• flue gas, ambient, and also sensor temperature sensors
• averaging tests
• mass emission calculations
• CO2, efficiency, losses, excess air, as well as O2 correction calculations
• 1 foot Inconel probe*

*other lengths available, please ask for details

How ecom-J2KNpro Expert Emissions Analyzer Works

The ecom-J2KNpro Expert is an analyzer solution that utilizes electrochemical sensors to measure exhaust emissions, most commonly O2, CO, NO, NO2, as well as SO2 gases. In addition, it has an available NDIR bench for measuring CO2, high CO, and CH4. The robust filtering system along with the Peltier gas cooler and 9V high-flow pump ensures a clean sample and high flow rate, which is necessary for accuracy. The sensors have electronic monitoring which compensates for temperature changes in even the harshest testing environments. Furthermore, the CO sensor has a dedicated fresh air pump which is activated if a maximum concentration limit is exceeded, usually 4,000 ppm. The robust sample conditioning features, high-speed flow rate, and advanced sensor monitoring make the ecom-J2KNpro Expert analyzer unmatched in accuracy and repeatability.

Measurement Capabilities of the J2KNpro Expert

Gas sensor options include O2, CO, NO, NO2, SO2, combustibles, CO2, high CO, as well as CH4. Temperature sensors include flue gas temperature, ambient temperature, in addition to sensor temperature. Draft and pressure are standard measured features. A high-range CO sensor is also available for rich burn applications. Furthermore, the NO and NO2 sensors are available in "low NOx" with a resolution of 0.1 ppm. Calculations include CO2, excess air, losses, combustion efficiency, O2 correction, and mass emissions in lbs/hour, tons/year, or gr/bhp.

Included with the J2KNpro Expert Package

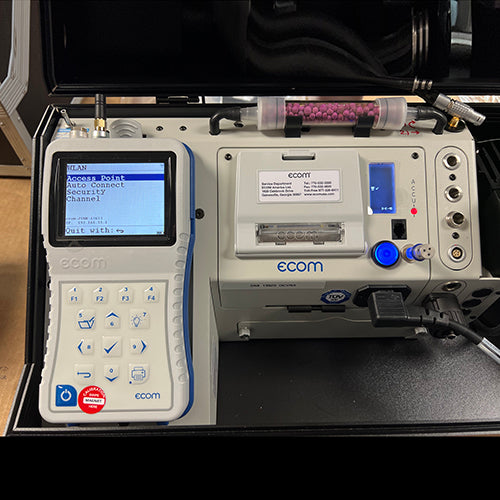

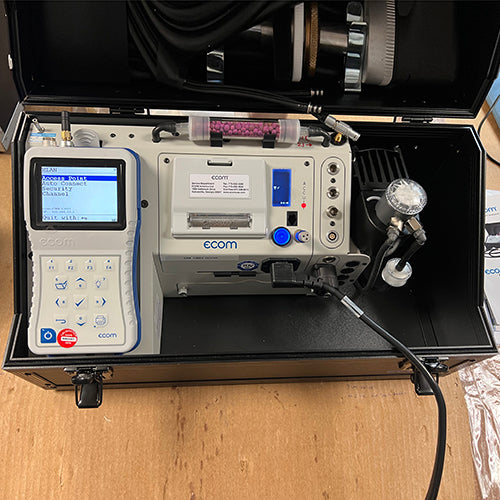

• analyzer with metal chassis built in to aluminum framed carrying case
• under case storage compartment
• handheld display for complete wireless remote control
• 15-foot Teflon sample line
• 1-foot Inconel probe
• consumables pack:
  • 10-pack particulate filters
  • 1 spare NOx / SOx filter tube
  • 2 in-line filters
  • 1 extra roll of printer paper
  • vent filter pack
  • 1 refill container of NOx / SOx filter media
• moisture drain tubing
• T-10 Torx wrench
• ambient temperature sensor stick
• calibration magnet
• antenna for base analyzer
• power cord
• padded shoulder strap
• ECOM folder with operations manual and calibration certificate

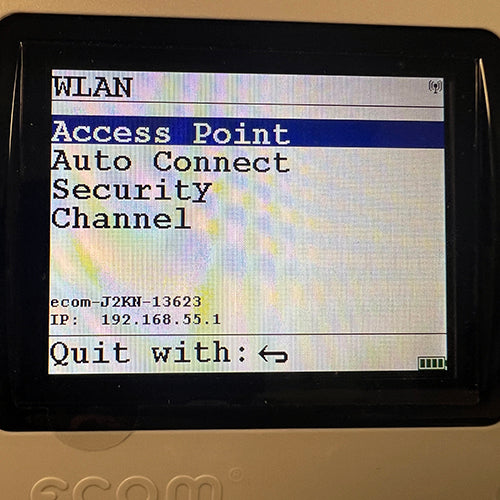

Supported by the ECOM App for Mobile Phones and Tablets

• reading of measured values and analysis data from all ECOM devices with BLE or Wi-Fi
• starting / stopping exhaust gas measurements
• comfortable saving of point measurements
• input of customer and system data
• create measurement reports in .pdf format
• create measurement reports in .csv format
• download the ecom ecomMANDER app from the Google Play Store here
• download the ecom ecomMANDER app from the Apple App Store here

Common Uses for J2KNpro Expert Emissions Analyzer

The ecom-J2KNpro Expert continuous emissions monitor is fully loaded with sensor options and features, which allows it to be used in many different applications around the world. These applications include, for example: emission testing on stationary engines, generators, compressors, boilers, burners, turbines, heating equipment, pumps, diesel engines, mining equipment (to control DPM), construction equipment, laboratory combustion equipment, alternative fuels research, and many other applications.

Technical Specifications

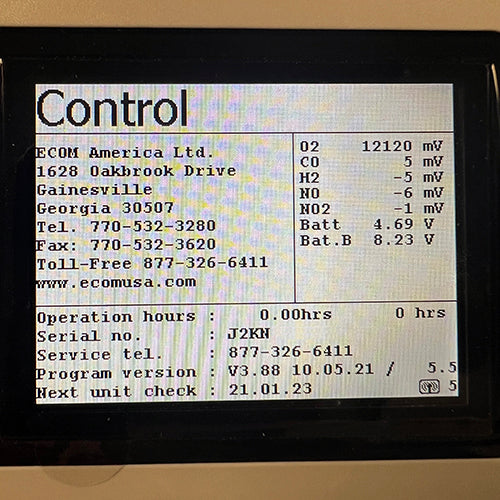

Display Information

• backlit, adjustable contrast and zoom
• displays all parameters simultaneously

Physical Specifications

• dimensions: 17.5" x 9.75" x 12" (L x W x H)
• weight: 29 lbs

Electrical Specifications

• battery life: 4-6 hours
• 6V 7.2Ah Li-ion (base)
• 2V 2Ah (remote)

Warranty Information

• 1-year warranty on the analyzer and parts
• 18-month warranty on electrochemical sensors

Optional Add-Ons

• calibration gas kit
• heated sample line (15 foot and 30 foot in stock, custom lengths available)
• stack flow velocity probe
• 1 foot flex tip probe
• e-Comply software
