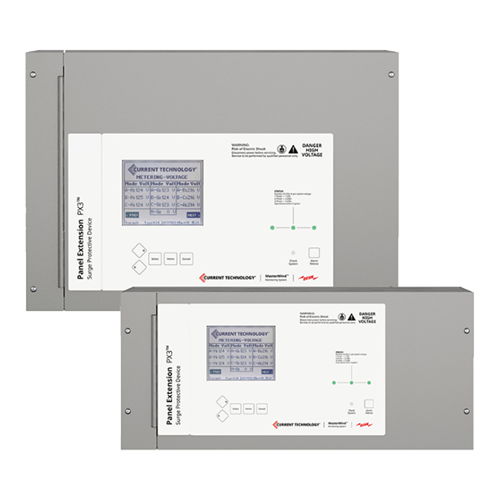

The Panel Extension PX3 is a space-saving, externally mounted surge protection unit that attaches directly to the top or bottom of panelboards. This compact design panel surge protector offers full protection without consuming interior real estate. The PX3 uses the robust Integrated Suppression Module (ISM), which blends thermally fused MOVs, surge-rated copper busbars, and advanced filtering. The PX3 Panel Surge Protector provides high-reliability transient suppression with direct bus connectivity. Moreover, this minimizes wiring impedance and improves clamping performance.
Panelboard Surge Protection Device (SPD)
Installation is simple via its slim footprint: for standard 6-inch wall depth and a removable end-plate that enables flexible top or bottom mounting. Maintenance is made safer and simpler thanks to an internal disconnect, thus avoiding the need to de-energize the panel. The PX3 supports both on-unit display and optional remote monitoring through features like MasterMind, ensuring real-time surge data accessibility.
Panel Extension PX3 protects and prevents costly downtime and equipment failure. The PX3 Panel Surge Protector features an externally mounted surge solution. This enables it to be physically attached to the top or bottom of any panelboard providing a low-profile surge solution. Moreover, PX3 offers an internal disconnect option, allowing safer and easier repairs without having to cut power to the distribution panel.
- Extends equipment life by reducing equipment degrading high-frequency line noise and transients
- Quick and easy installation - reflects an innovative approach to simplify and also enhance the user experience
- Easy accessibility to real-time data via display located on the unit or remotely
Common Applications of the PX3 Panel Surge Protector
The Panel Extension PX3 is ideal for demanding technical requirements, offering exceptional performance and reliability. It features a single surge rating and has undergone testing with an extensive kA rating and voltage range. The PX3 meets standards including UL 1449 5th Edition for Type 1 and Type 2, RoHS, cUL, UL 1283, and UL96A for lightning protection.
Applications include industrial use in renewable energy, motion control, food and beverage, oil, gas processing, and chemical industries. In addition, this industrial panelboard surge protector is ideal for critical power facilities. For example: hospitals, data centers, educational institutions, wastewater treatment, and transportation. The PX3 Panel Surge Protector ensures reliable surge protection and electrical safety across various sectors.
- Space-saving design that fits within a standard 6-inch deep wall and also conserves horizontal wall space
- Direct bus connection capability to reduce wiring lead lengths, thus minimizing installation impedances and improve clamping voltages
- Removable end-plate allows installation above or below panelboards
- MasterMind advance monitoring available as an option for remote monitoring
