PM-50 Graphical Panel Meter

PM-50 Graphical Panel Meter

Monitor your equipment and see your data like never before with Red Lion's Graphical Panel Meter, PM-50. This next-generation graphical panel meter connects you to the information that matters most, where and when you need it most. Unplug your old meter, insert PM-50, connect it to Wi-Fi, and start harvesting your data—creating a smart plant floor has never been easier. The PM-50 is the smart panel that will allow you to work smarter. You will be able to respond to issues faster, increase productivity and save money. Its display lets you process information immediately, monitor multiple processes at once, and have vital information sent directly to your smart phone or tablet.
  • Improve efficiency by allowing one employee to easily run multiple machines
  • Make real-time decisions with simple-to-understand operational data for at-a-glance insights
  • You will see more than just information, but what the information means, so you can react to it faster
  • You won't need additional wires to connect to devices, as it offers wire-free connectivity via Wi-Fi, ethernet, and Modbus
  • Scalable, so you can take advantage of as many of the "smart" features as you want - or don't want. It still works as a simple panel meter.

View full details

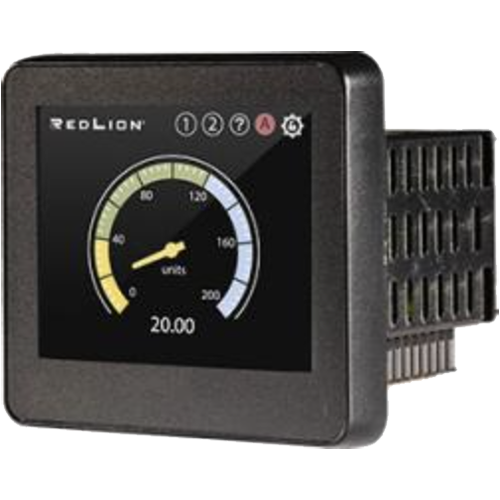

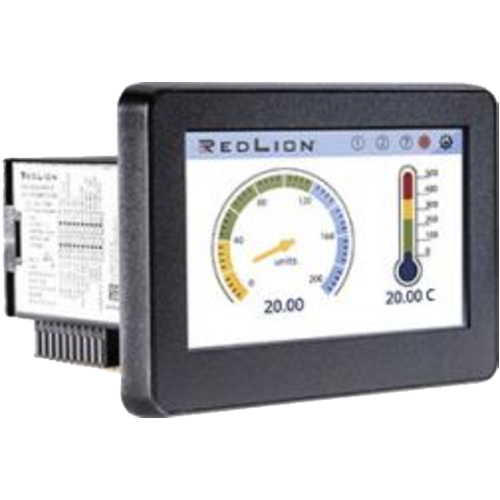

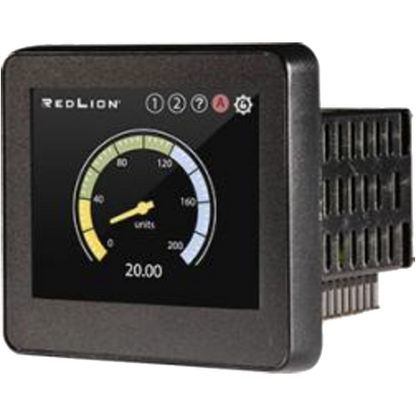

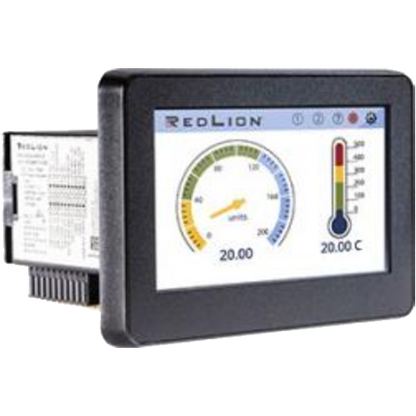

The Red Lion PM-50 Panel Meter Series offers large, best-in-class displays - either 3.5" or 4.3" - with vibrant, user-selectable graphics present critical operational data for at-a-glance insights. Choose from a library of intuitive screens, customizing meter elements to reveal your most important data with minimal interaction.

  • Smart device connectivity
  • Wi-Fi and Modus communications
  • Universal inputs
  • Dual solid state outputs
  • Display color change and status notification
  • Start-up wizard, programming assistance
  • App for programming and monitoring
  • Modular construction for additional capability

Red Lion Panel Meter - Easy to Install, Connect, Expand, and Upgrade

In addition to Ethernet, Modbus, RS485, and RS232 communication, take advantage of Wi-Fi for a truly wire-free connectivity. Add capability by stacking modules to your PM-50. The field installable modules provide output, communications and AC power functionality when needed. An on-device programming wizard gets set-up of the PM-50 started. Alternatively, you can program it using mobile apps or from a web browser. Simply replace any meter in an 1/8 or 1/16 DIN panel cutout and turn on the Wi-Fi. Welcome to your connected smart factory floor.
  • Ethernet and RS232 communications
  • Retransmitted analog output
  • Dual form “C” relays
  • Quad form “A” relays
  • AC power module
red-lion-PM-50-Analog-Input-Graphical-Panel-Meter-model-5-industrial-instrumentation-distributor-process-solutions-corp-texas
Analog Input Models
DC Current, DC Voltage, Resistance, RTD, Thermocouple and Process
Digital Input Models
Count and Rate
Setpoints
Dual SS On-board, Optional Dual Relay and Quad Relay
Communications
Wi-Fi, Modbus / RS485, Optional Ethernet, RS232
Retransmitted Analog Output
Optional 0(4) to 20 mA or 0 to 10 VDC

No Specification available

Other Details not Available
