PR 4104 Universal Unipolar / Bipolar Signal Transmitter

The PR 4104 Universal Unipolar / Bipolar Signal Transmitter is a high-performance signal conditioning and conversion device for industrial automation, control systems, and process measurement applications. This versatile universal transmitter accepts both unipolar and bipolar voltage (±12 V) and current (±23 mA) signals, active or passive, as well as converts them into configurable outputs. Thus, the 4104, from PR electronics, makes for easy integration with PLCs, DCS, and SCADA systems. Its universal power supply ranges from 21.6-253 VAC or 19.2-300 VDC, thus making it suitable for a wide variety of global installations.

• Fast < 20 ms response time for measuring signals from torque, position, current, as well as acceleration sensors.
• User configurable bipolar or unipolar I/O means the PR 4104 is suitable for nearly any voltage or current conversion.
• The excitation source enables measurement of two or three wire transmitters.
• The active or passive I/O makes the 4104 perfect for power matching current loops.
• Converts narrow bipolar inputs to wide bipolar or unipolar outputs, for example, ±1 volt input = ±10 volt or 4-20 mA output.
• Selectable direct or inverse I/O makes the PR 4104 suitable for proportional control applications.
• The "V-curve" function outputs 100% – 0 – 100% when a 0 – 100% input signal is present.

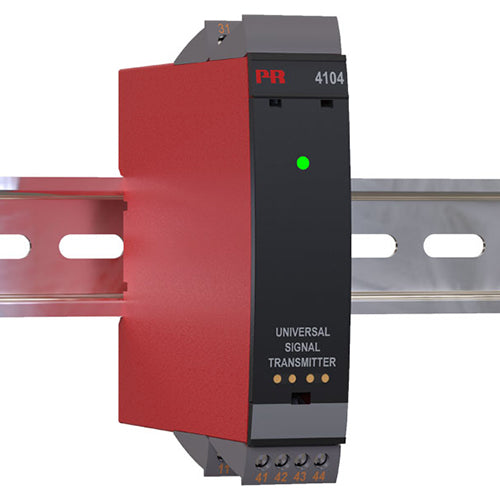

PR 4104 Universal Unipolar / Bipolar Signal Transmitter from PR electronics

The PR 4104 Universal Unipolar / Bipolar Signal Transmitter features a fast response time of <20 ms, excellent accuracy better than 0.05 % of span, and a high signal-to-noise ratio of >60 dB. Furthermore, the 4104 delivers precise signal conversion in demanding industrial environments. It supports programmable unipolar and bipolar outputs (including 0–20 mA, 4–20 mA, ±10 mA and ±20 mA), selectable direct or inverted action, in addition to unique "V-curve" scaling for advanced process control applications. Built with robust 2.3 kVAC galvanic isolation and compliance with NAMUR NE21/NE43 EMC standards, this universal unipolar / bipolar signal transmitter excels in electrically noisy settings while providing reliable sensor error detection.

• The latest analog and digital techniques are used to obtain maximum accuracy and immunity to interference.
• The current output can drive up to 800 Ohms, with an adjustable response time of 0.0-60.0 seconds.
• Exceptional mA output load stability of < 0.001% of span/100 Ohm.
• Meets the NAMUR NE21 recommendations, thus ensuring high accuracy in harsh EMC environments.
• Meets the NAMUR NE43 recommendations, thus allowing the control system to easily detect a sensor error.
• Each unit is tested to a high 2.3 kVAC, 3-port galvanic isolation level.
• Excellent signal to noise ratio of > 60 dB.

Easy Mounting, Installation, and Programming

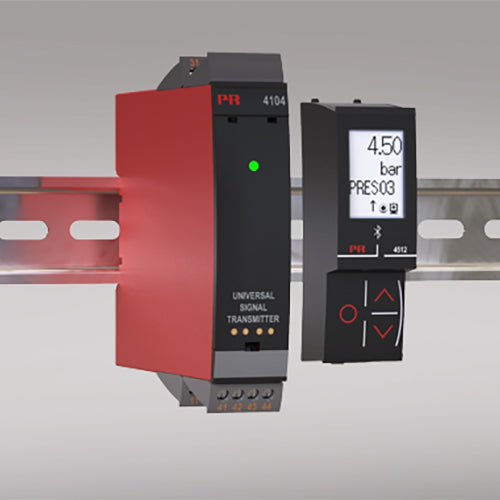

Installation is streamlined via DIN-rail mounting and programming can be accomplished using PR 4500 detachable display interfaces. The PR 4104 Universal Unipolar / Bipolar Signal Transmitter is ideal for industrial signal conversion in motion control, torque measurement, position feedback, and current/voltage transducer systems, delivering versatile performance as well as long-term reliability.

• Very low power consumption means units can mount side by side without an air gap – even at 140˚F (60˚C) ambient temperature.
• Features approval for marine applications.
• Configuration, monitoring, 2-point process calibration and more are accomplished using PR's 4500 series of detachable displays.
• All programming can be password protected.
