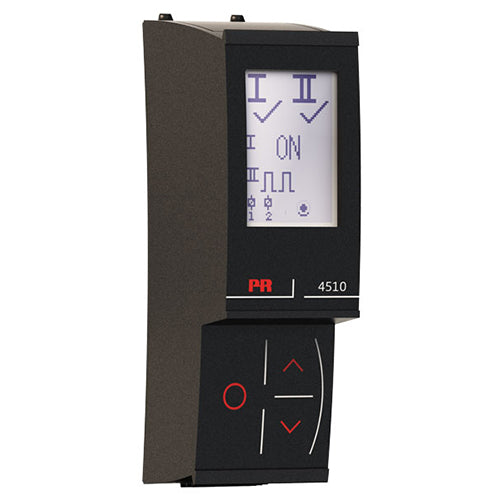

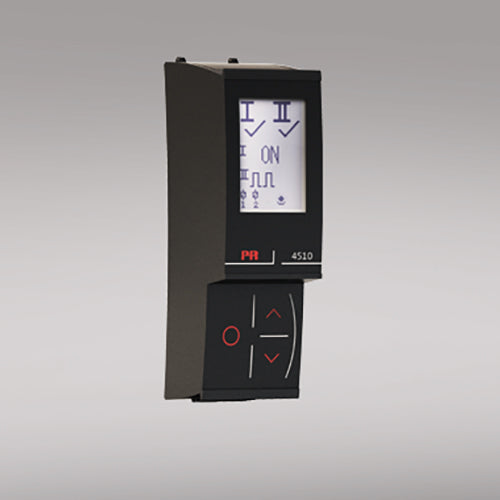

PR 4510 Display and Programming Front

The PR 4510 Display and Programming Front is a versatile communications interface that simplifies configuration and monitoring of signal conditioning instruments in the PR 4000, PR 9000, and select PR 3000 series. The 4510, from PR electronics, is a detachable programming display that allows technicians to view real-time process values and device status directly on a clear, dot-matrix LCD, streamlining setup, calibration and troubleshooting in industrial environments.

• Communications interface for programming and modification of operational parameters.
• The easily readable PR 4510 display and programming front can monitor the process signal, simulate the output signal, and indicate sensor and internal device errors.
• The 4510 can easily move from one device to another.
• The individual system PR 4000, PR 9000, and select PR 3000 device configuration of a transmitter can save and download to subsequent transmitters.

PR 4510 Display and Programming Front from PR electronics

With scrolling help text in seven languages and a user-friendly menu, the PR 4510 Display and Programming Front enables operators to simulate outputs, monitor process signals, and identify sensor or internal device errors without additional tools. With internal backup memory, the 4510 can save and restore device configurations. Furthermore, these settings can transfer between devices or to a PC via the compatible PR 4590 ConfigMate.

• Easy-to-read dot matrix LCD display.
• Backup memory for loading and saving of device configuration.
• Programming access can be blocked by assigning a password.
• The password saves in the device to ensure a high degree of protection against unauthorized modifications to the configuration.

Easy Installation and Programming

The PR 4510 Display and Programming Front supports password-protected programming for enhanced security, thus preventing unauthorized parameter changes. Ideal for industrial use, the 4510 features certification for mounting in hazardous areas (Zone 2 / Division 2) and also carries global approvals including ATEX, IECEx, FM, and UL standards. Its compact form factor and easy attachment make the 4510 a flexible tool across signal conditioning applications. Thus, the PR 4510 Display and Programming Front improves efficiency and reduces commissioning time for process measurement and automation tasks.

• Mounting in Zone 2 / Div 2.
• All configuration data from PR 4000, PR 9000, and select PR 3000 devices can transfer to a PC using the PR 4590.
• When mounting on devices that install upside down, a menu item allows the display on the 4510 to rotate 180˚ and the up/down buttons to switch function.
• The PR 4510 features approval and certification as an add-on component for the PR 4000, PR 9000, and select PR 3000 series devices.
• All technical characteristics are valid with the PR 4510 attached.
• In addition, the PR 4510 features approval for marine applications.
