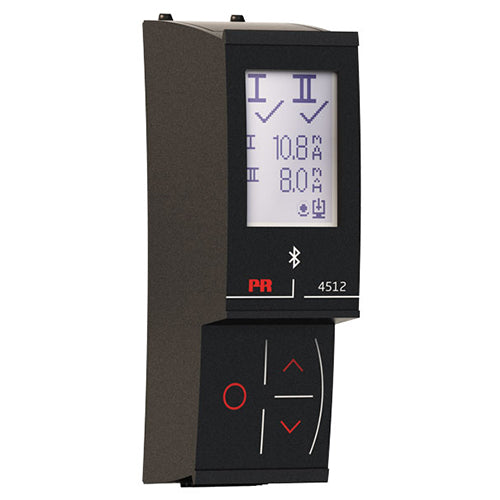

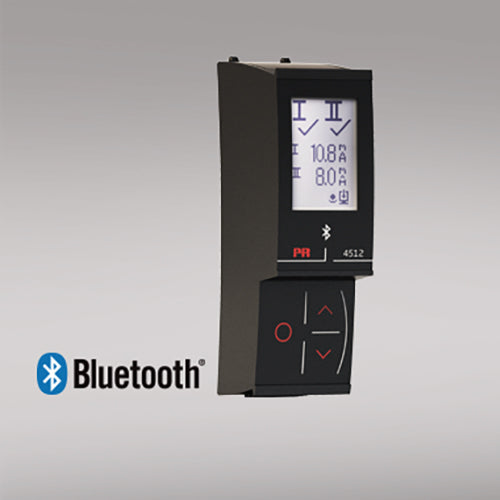

PR 4512 Bluetooth Programming Interface

The PR 4512 Bluetooth Programming Interface is an advanced wireless interface accessory that enhances connectivity and usability for PR 4000 and PR 9000 series signal conditioning devices. The 4512, from PR electronics, is a Bluetooth-enabled signal module that allows technicians and engineers to monitor real-time process values, perform diagnostics, and program devices via smart mobile devices using the free PR Process Supervisor (PPS) app on iOS or Android.

• Program devices via Bluetooth using an iOS/Android device running the free PPS app (PR Process Supervisor).
• Use PPS data for preventive maintenance.
• All logged data can export in .csv format, for advanced data analysis off-site.
• On-site analysis of real-time process data on an iOS/Android compatible device.
• Off-site analysis of historic process data on a PC using PReset software.

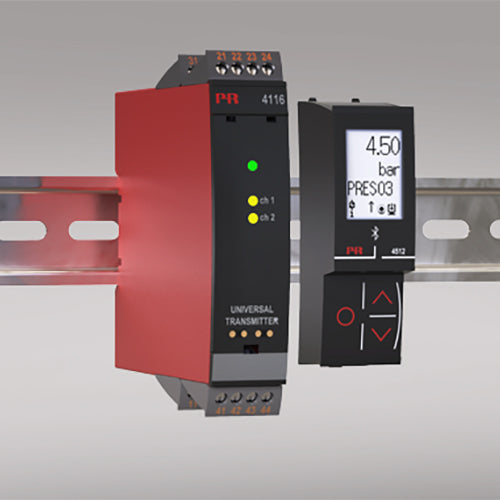

PR 4512 Bluetooth Programming Interface from PR electronics

With support for Bluetooth 4.2 communication, the 4512 enables cable-free access to instrumentation data in hazardous areas or remote locations. Thus, the PR 4512 Bluetooth Programming Interface improves operational efficiency and safety in industrial automation applications. It features an easy-to-read dot-matrix LCD display, intuitive user interface, and a built-in real-time clock with advanced data/event logging capabilities. The onboard memory can store more than 30 days of high-resolution process data at 1-second intervals, and logs can export in .csv format for advanced off-site analysis.

• The PR 4512 runs Bluetooth 4.2 and requires a smart device with 4.0 or newer.
• PR Process Supervisor (PPS) software is compatible with iOS and Android devices.
• The PR 4512 automatically detects the device setting on the connected PR 4000 and PR 9000 series device.
• An internal battery energizes the 4512 real-time clock for at least 2 years, should the 4512 remain de-energized.
• Typical data logging capacity is more than 30 days at 1 second intervals.
• Easy to read dot matrix LCD display.
• Fast pairing or safe pairing via two-factor authentication.

Easy Mounting and Programming

Ideal for rugged environments, the PR 4512 features certification for Zone 2 / Division 2 hazardous areas and supports secure Bluetooth pairing with two-factor authentication. It also allows parameters to be protected with user-defined passwords, and can be easily transferred between compatible devices. Thus, the 4512 is a flexible tool for preventive maintenance, troubleshooting, and remote configuration.

• Suitable for mounting in Zone 2 / Div. 2.
• The PR 4512 can easily move from one device to another.
• The individual PR 4000 and PR 9000 series device configuration of a transmitter can save and download to subsequent transmitters.
• Programmed parameters can be protected by a user-defined password.
• When mounting on devices that install upside down, a menu selection rotates the 4512 display 180˚ and also reverses the up/down button functions.
• All data, including configuration, data log, and event log from a PR 4000 and PR 9000 device can transfer to a PC using the PR 4590.
• Please find an updated list of countries who have approval for the use of 4512 at: www.prelectronics.com/4512-bluetooth-approvals/.
