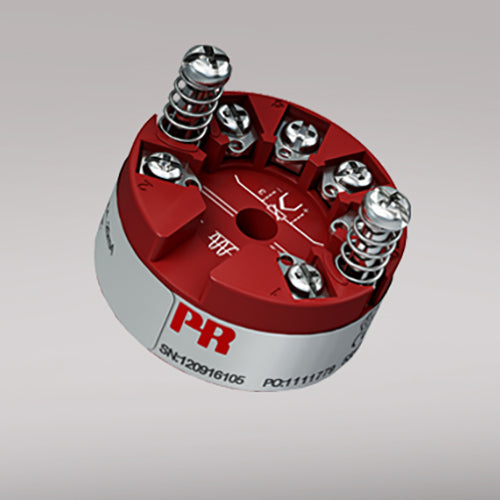

PR 5337 HART 5/7 Temperature Transmitter

The PR 5337 HART 5/7 Temperature Transmitter delivers precise, reliable temperature measurement in addition to advanced communication for demanding industrial applications. This versatile HART-enabled transmitter supports a wide range of inputs, for example, RTD (Pt100, Ni100), thermocouple (TC), ohm, and bipolar mV signals. The 5337, from PR electronics, converts linear process values into a stable 4-20 mA output with digital diagnostics. Perfect for modern process control systems, the PR 5337 HART 5/7 Temperature Transmitter allows users to select between HART 5 or HART 7 protocol. It enables up to 63 transmitters in a multidrop network with extended tag names, enhanced burst mode, trend logs, as well as event notifications for richer process insights.

• Linearized temperature measurement with TC and RTD sensors, for example, Pt100 and Ni100.
• HART communication and 4-20 mA analog PV output for individual, difference, or average temperature measurement of up to two RTD or TC input sensors.
• Conversion of linear resistance to a standard analog current signal, for example, from valves or Ohmic level sensors.
• Amplification of bipolar mV signals to standard 4-20 mA current signals.
• Up to 63 transmitters (HART 7) can connect in a multidrop communication setup.
• Models in the 5337 Series are galvanically isolated as well as intrinsically safe and feature multiple, different certifications for use in hazardous areas, including, ATEX, CSA, and IECEx, and is suitable for use in marine applications.

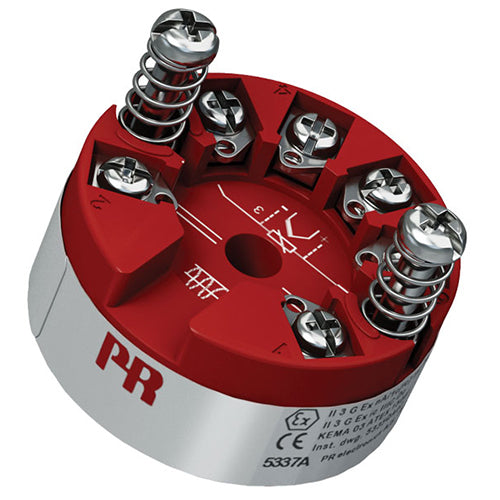

• Model PR 5337A is certified for hazardous areas Zone 2 / Div 2.

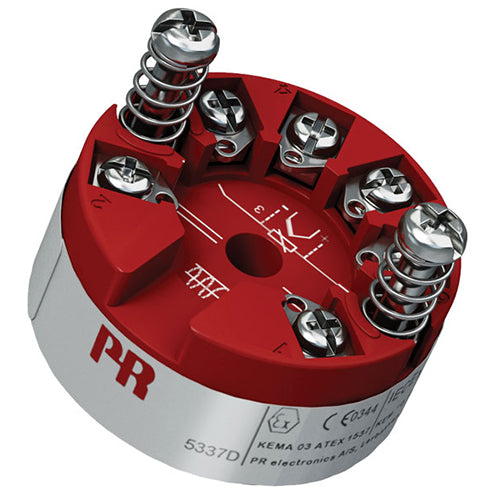

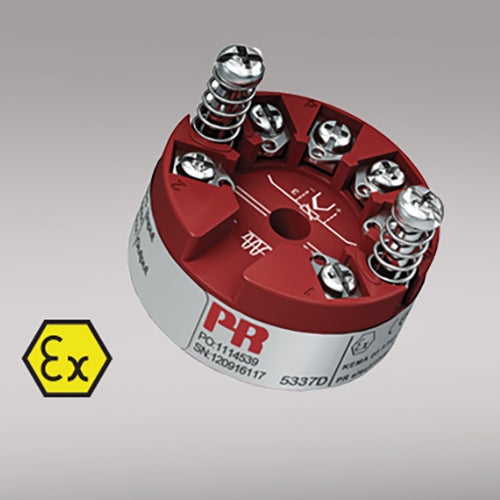

• Model PR 5337D also includes FM certification and is suitable for Zone 0, 1, 2, 21, 22, M1 / Div 1, Div 2.

PR 5337 HART 5/7 Temperature Transmitter from PR electronics

This rugged transmitter is suitable for use in general purpose or hazardous location installations and meets safety and performance standards including SIL-capable hardware and NAMUR EMC recommendations. Ideal for HVAC, energy, automation, manufacturing, and process industries, the PR 5337 HART 5/7 Temperature Transmitter supports linearized temperature measurement, differential, or average readings from dual sensors, as well as conversion of resistance or mV signals to standard analog.

• Users can change the HART protocol revision configuration to either HART 5 or HART 7 protocol.
• The HART 7 protocol offers:
  • Long tag numbers of up to 32 characters.
  • Enhanced Burst Mode and Event notification with time stamping.
  • Device variable and status mapping to any dynamic variable PV, SV, TV, or QV.
  • Process signal trend measurement with logs and summary data.
  • Automatic event notification with time stamps.
  • Command aggregation for higher communication efficiency.
• The 5337 HART 5/7 temperature transmitter provides the necessary failure data (SFF and PFDAVG) for SIL 2 applications as per IEC 61508 / IEC 61511.
• Continuous check of vital storage data.
• Meeting the NAMUR NE21 recommendations, the 5337 Series HART transmitter ensures top measurement performance in harsh EMC environments.
• Additionally, the PR 5337 meets NAMUR NE43 and NE89 recommendations.

Easy Mounting, Installation, and Programming

Mountable in a DIN form B sensor head, the PR 5337 HART 5/7 Temperature Transmitter also features continuous data integrity checks and flexible configuration via HART tools or PR Loop Link interfaces. The PR 5337 Series enhances control system performance with accurate measurement, robust communications, and seamless integration into modern industrial infrastructure.

• Ideal for DIN form B sensor head mounting.
• Configuration via standard HART communication interfaces or by PR 5909 Loop Link.
• Model PR 5337A is also suitable for DIN rail mounting via the fitting type PR 8421.
