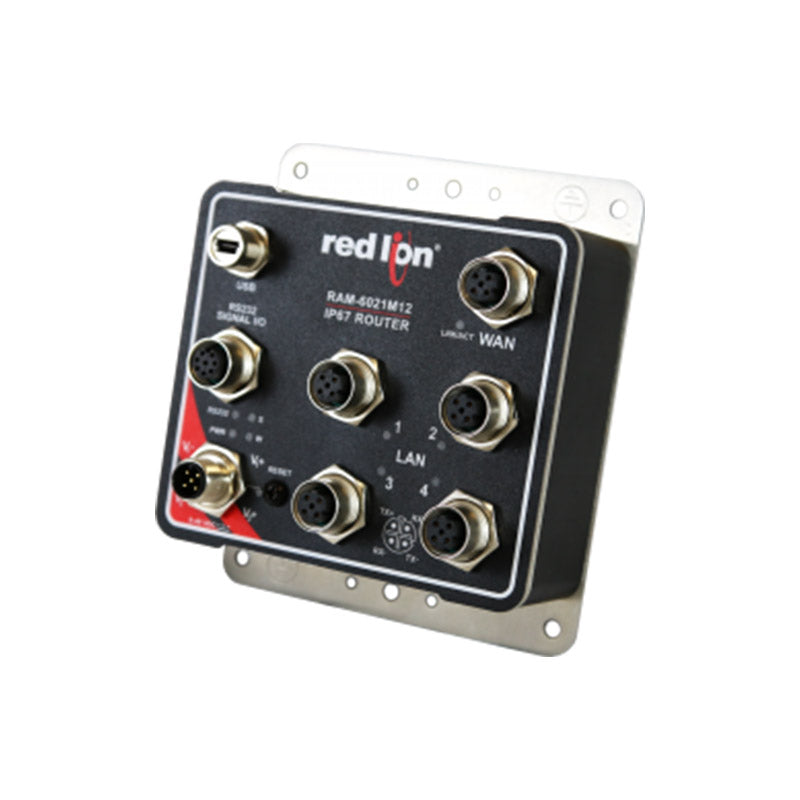

RAM-6021M12 Secure Industrial IP-67 Router

RAM-6021M12 Secure Industrial IP-67 Router

  • LAN-to-LAN or LAN-to-WAN connectivity
  • Built-in security and routing protects against unwanted intrusion
    • IPsec and SSL VPN tunnels
    • Stateful firewall
    • Port forwarding
    • Packet filtering
    • Access control list (ACL)
  • Â Flexible all-in-one platform reduces system complexity
    • NAT support for one-to-one or one-to-many translations
    • DHCP server and DHCP relay
    • Event engine to trigger I/O or send email alerts
    • SNMP v1, v2, v3
    • Dynamic DNS
    • Modbus TCP/ASCII/RTU
    • DNP3 – Responder (Slave)
    • Syslog
    • Built-in traffic capture for enhanced troubleshooting
    • RAMQTT client for IIoT cloud connectivity
View full details

Ethernet Interface (10/100 Auto-Sensing)

  • Five (5) M12 D-code connectors
Mechanical
  • Dimensions: 4.32” x 5” x 2.1” (10.97 cm x 12.7 cm x 5.33 cm)
  • Weight: 1.75 lb (0.79 kg)
Redundant Power Input
  • One (1) M12 A-code connector
  • 8-49 VDC (12 VDC nominal)
Environmental
  • Rugged IP67 dustproof and water-resistant metal enclosure
  • Operating temperature: -40° to +80°C
  • Humidity: 5 to 95% non-condensing
  • Shock: IEC60068-2-27
  • Vibration: IEC60068-2-6
Certifications
  • Product Safety
    • ISA 12.12.01-2015 Class I and II, Div. 2, and Class II, Div. 1 and 2, Groups A, B, C, D Hazardous locations
  • Rail
    • EN 50155, EN 50121, EN 61373 and EN 45545-2
  • Maritime
    • ABS type approval for shipboard applications, EMC Directive 2014/30/EU
  • Designed to comply with
    • IEEE 1613 (Electric Utility Substations)
    • NEMA TS1/TS2 (Traffic Control)
