SmartBlock I/O from Horner Automation

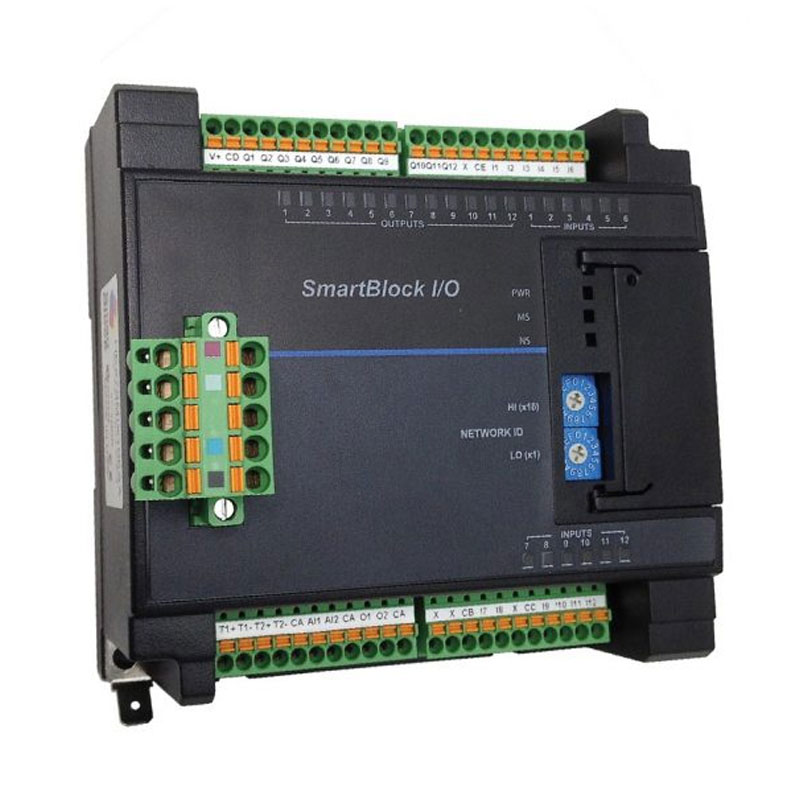

SmartBlock is designed to complement the extremely popular SmartStix Digital I/O Series. These two I/O series can expand the I/O capacity of just about any Horner Automation controller by merely a few points - or potentially a few thousand. Additionally, SmartBlock easily configures using Horner Cscape software and can be quickly implemented into an existing or new Horner OCS controller. Using CsCAN communications, SmartBlock I/O provides easy configuration and network expansion.
- wide variety of digital, analog, and mixed I/O options
- easy-to-read, separate input / output connectors
- LED indicator lights for each I/O point, power, in addition to network status
- include a 5-pin double CsCAN plug as well as Removable Field Wiring Terminals
- DIN-rail mountable, in fully enclosed plastic housing
Isolated & Highly Accurate Analog I/O
The SmartBlock modules can be fully isolated and are highly accurate with 16-bit resolutions on most models. RTD and THM Analog models offer a .5˚C accuracy margin with a 0.1˚C resolution. Overall, this makes the SmartBlock a perfect match for applications that need precise, accurate data, noise immunity, as well as data integrity.
Applications of the SmartBlock from Horner Automation
- manufacturing, for example: custom OEM products, food processing, automotive parts, etc.
- power management & back-up generation
- semiconductor applications
- mobile and packaging machinery
- municipal water treatment in addition to HVAC and environmental control
- compressor, pump, motion, and also distributed conveyor control
Switch to Horner OCS-I/O
The Horner OCS-I/O is a flexible, highly expandable Input/Output system that can be applied as a local expansion I/O or as remote I/O distributed over hundreds of meters. With expandability up to 7 modules per base as well as 16 bases per network, OCS-I/O can handle almost every Input / Output need. Additionally, it includes a CsCAN In and CsCAN Out port, which allows users to easily daisy-chain multiple bases without requiring extraneous custom wiring.
- local expansion I/O or remote I/O up to 500 meters away
- expandable with up to 7 modules per base and 16 bases per network
- screw-type terminals standard; spring-clamp style optional
- nine I/O modules to choose from, all with different I/O capabilities
- compact design to allow easy installation into existing control systems
- configures with easy-to-use, free Cscape programming software
Models of the SmartBlock Series
| Model ID | Digital Outputs | Digital Inputs | Analog Outputs | Analog Inputs |
|---|---|---|---|---|
| HE569DQM204 | (8) High Current, Socketed Output SSRs (AC) Form A (NO) Solid State Relays with 1A rating Output | – | – | – |
| HE569DQM212* | (8) High Current, Socketed Output Relays Form C, (NO/NC) Mechanical Relays, with 7A rating | – | – | – |
| HE569DQM212-12* | (8) High Current, Socketed Output Relays Form C, (NO/NC) Mechanical Relays, with 7A rating | – | – | – |
| HE579ACM300 | – | 3 Phase AC inputs (480V) direct or PT's, 3 Current Inputs (0-5A CT's) | – | – |
| HE579ADC570 | – | – | – | (6) 16 bit 0-10V, 0-5V, 0-20mA, 4-20mA, 10K Thermistor |
| HE579ADC970 | – | – | – | (12) 16 bit 0-10V, 0-5V, 0-20mA, 4-20mA, 10K Thermistor |
| HE579DAC107 | This module is obsolete - we recommend replacing it with HE579DAC207 or the OCS-I/O Base (HE959DAC107) | |||
| HE579DAC207 | – | – | (8) 14 bit 0-10V, 0-5V, 0-20mA, 4-20mA | – |
| HE579DIQ880 | (8) 3 amp Relay | (8) DC | – | – |
| HE579DIQ881 | (8) 2.5 amp DC | (8) DC | – | – |
| HE579MIX102 | (6) Relay 3A @275 VAC, 30 VDC | (12) 12/24VDC | – | (4) 16 bit 4-20mA or 0-10V |
| HE579MIX105 | (12) 10-30VDC | (12) 12/24VDC | (2) 16 bit 0-10V,4-20mA | (2) 14 bit 0-10VDC, 0-20mA ,4-20mA, 100mV, PT100 RTD, Thermocouple (J,K,N,T,E,R,S,B,C) |
| HE579MIX577 | – | – | (2) 14 bit 0-5VDC, 0-10VDC, 4-20mA, 0-20mA | (4) 12 bit 0-10VDC, 0-5VDC, 0-20mA, 4-20mA |
| HE579MIX977 | – | – | (4) 14 bit 0-5VDC, 0-10VDC, 4-20mA, 0-20mA | (8) 12 bit 0-10VDC, 0-5VDC, 0-20mA, 4-20mA |
| HE579RTD100 | – | – | – | (4) .1˚C 24 bit RTD (PT50, PT100, PT150, PT200, PT500, PT1000, Ni100, Ni120, Cu10) |
| HE579RTD200 | – | – | – | (8) .1˚C 24 bit RTD (PT50, PT100, PT150, PT200, PT500, PT1000, Ni100, Ni120, Cu10) |
| HE579THM100 | – | – | – | (4) .1˚C 24 bit Thermocouple |
| HE579THM200 | – | – | – | (8) .1˚C 24 bit Thermocouple |
| *Product marked as "mature" and production will soon discontinue. | ||||
