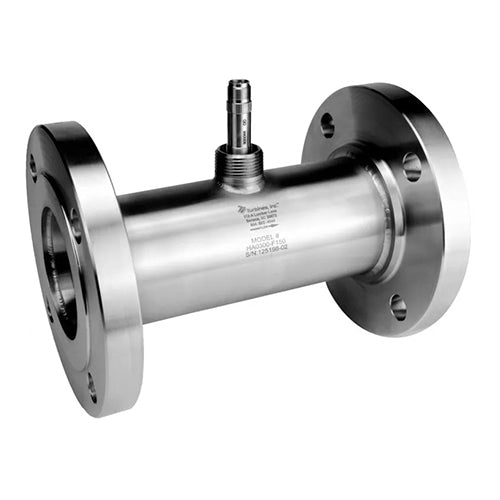

Our liquid turbine flow meters come in a comprehensive variety of offerings, accuracy, and impressive temperature operating ranges. All of our in-line meter series (installed within a length of pipe) and the wafer-style turbine meters (typically inserted between two flanges) are precision machined stainless steel. They are also available in a wide variety of materials of construction.

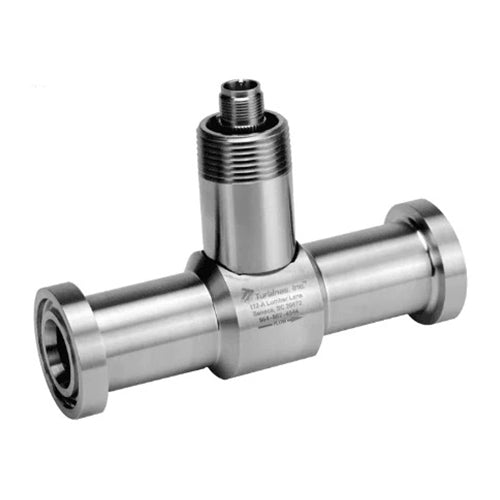

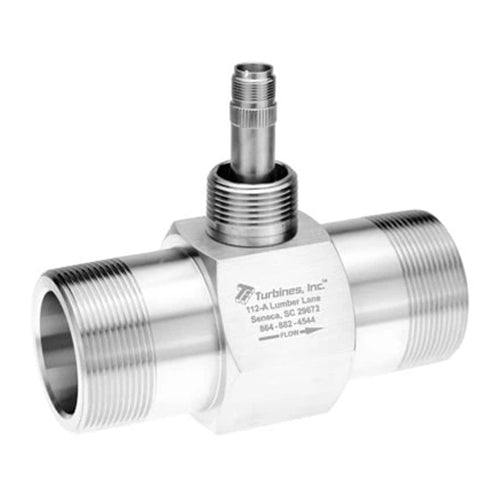

HA Series – High Accuracy Turbine Meter
Our High Accuracy Turbine Meters are built with extremely tight tolerances that are achievable with our precision manufacturing processes, stringent quality control, and in-house calibration capabilities. The HA series is able to meet or exceed the strict standards often necessary for custody transfer applications. These High Accuracy Turbine Meters deliver ±0.5% or better accuracy and ±0.1 % repeatability for clean low viscosity fluids. These turbine flow meters, from Turbines, Inc., have a unique K-factor with NIST-traceable from the factory or independent laboratory calibration.
- Flow Rates: from 1 to 12,000 gpm
- Pressure: up to 20,000 psi
- Accuracy Over Range: ±0.5% (premium accuracy of 0.25% is available)
- Repeatability Over Flow Range: ±0.10%
- Operating Temperature: -450 to 850˚F
- Line Sizes: from 1/2 inch through 12 inches
- Certifications: ISO 9001, AS 9100, CRN
- Highly configurable materials of construction
