Our liquid turbine flow meters come in a comprehensive variety of offerings, accuracy, and impressive temperature operating ranges. All of our in-line meter series (installed within a length of pipe) and the wafer-style turbine meters (typically inserted between two flanges) are precision machined stainless steel. They are also available in a wide variety of materials of construction.

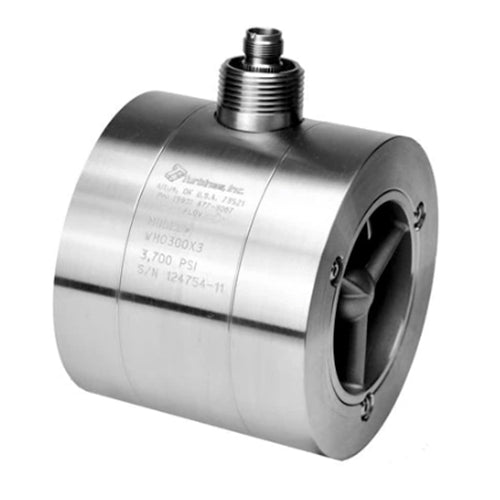

WM Series Liquid Wafer-Style Turbine Flow Meter
WM Liquid Wafer Style Turbine flow meter is a highly-versatile product line that offers all stainless steel, precision-machine components with CD4MCu and/or 416 stainless steel rotors in line sizes from 3/8″ through 10.0″. The WM Series turbine meters are ideal for installation between two raised‐face flanges and the robust design handles up to 6,000 PSI, depending on the selected meter and flange size. These turbine flow meters are unique in that rather than snap rings holding the internals, three (3) machine screws hold each rotor support in place. This design makes it a heavy duty meter for most any liquid application. The WM Series provides ±1.0% standard accuracy, and is repeatable to ±0.10% over the entire flow range. These turbine flow meters offer a unique K-factor with NIST-traceable factory calibration.
- Flow Rates: from 0.3-5500 GPM (10-190,000) BPD
- Pressure: up to 3,700 psig
- Accuracy Over Range: ±1.0% (model WM0038 ±2.0%)
- Line Sizes: from 3/8 inch through 10 inches
- Certifications: ISO 9001, AS 9100, CRN
