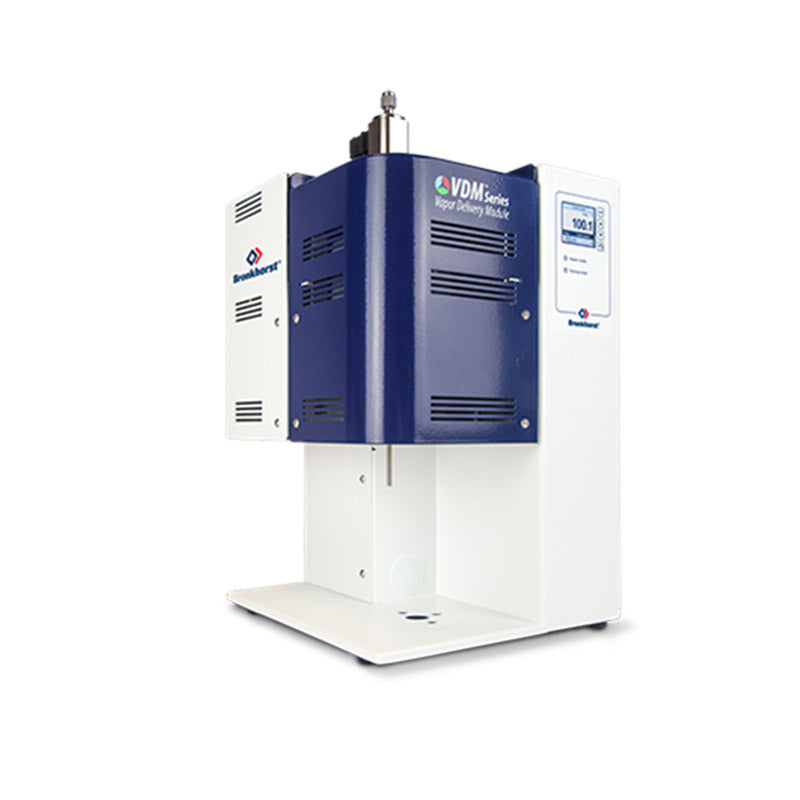

VDM Series, Vapor Delivery Modules (VDM)

VDM Series, Vapor Delivery Modules (VDM)

The VDM Series features integrated power supply with display and control functions. This compact plug and play module can generate (saturated) vapor flows within the range of 100 mln/min up to 10 ln/min. It can be applied for atmospheric or vacuum processes and is capable of evaporating mixtures and even solids dissolved in solvents.
  • no need for engineering or manufacturing
  • pre-tested, safe, and ready to use
  • readout/control panel including display, alarm, signaling, and counter functions
  • integrated fieldbus interface (optional)
View full details

Our Vapor Delivery Modules, from Bronkhorst, are an all-in-one system that is capable of generating vapor streams while providing high accurate control of the stream. They are also ethernet enabled which allows remote control and analytical tracking through a wide range of protocols via Modbus.

VDM-Vapor-Delivery-Module-Bronkhorst-Low-Flow-Vapor-Control-Vapour-Generation-System-Controlled-Evaporation-Mixing-CEM-Vaporizer-Atomizer-Process-Solutions-Corp-PSC-Texas
  • dilution gas supply
  • trace heating temperature control including status indication
  • single carrier gas supply, no dilution (standard)
  • single carrier gas supply with dilution
  • dual carrier gas supply, no dilution
  • dual carrier gas with dilution
  • thermal or Coriolis Mass Flow Meter for liquid flow control

Models of the VDM Series, Vapor Delivery Modules

Model ID Description Maximum Capacity (based on water) Maximum Capacity Maximum Temperature
SW-100 10W, VDM Series 30 g/h Liquid 4 ln/min Gas 392˚F
SW-200 100 W, VDM Series 120 g/h Liquid 10 ln/min Gas 392˚F
