White LED Linears, Industrial Lighting

White LED Linears, Industrial Lighting

Our 4 foot and 8 foot White LED Linears are powerful, efficient, and many are even DLC certified. Utilizing the same proven design as our flagship Remote Phosphor LED Linears from Horner Lighting Group, we have translated that over into the realm of White LEDs. Perfect for high bay lighting applications in industrial settings, retail, or manufacturing, our White LED Linears are durable, versatile, and powerful. With an extruded aluminum casing, high-quality white LEDs, and a plethora of options and add-ons, these 4 f00t and 8 foot fixtures are well-suited and customizable for most indoor uses.
  • No horizontal dust collecting surface bulbs
  • No glass, no mercury
  • 5 year manufacturer warranty
View full details

We offer a variety of White LED Linears luminaire options from Horner Lighting Group. Along with a multitude of add-on accessories for any situation, our line of White LED Linear products are a perfect fit for indoor high, low, and aisle bay applications.
  • instant strike
  • easy mounting via cable (standard)
  • output of 9,845 - 77,192 lumens
  • dimmable options enable the use of occupancy sensors for power savings
  • universal AC input / full range, 120~277 VAC
    • 347/480 VAC option available
  • designed and assembled in USA with global components
  • on / off motion sensor option

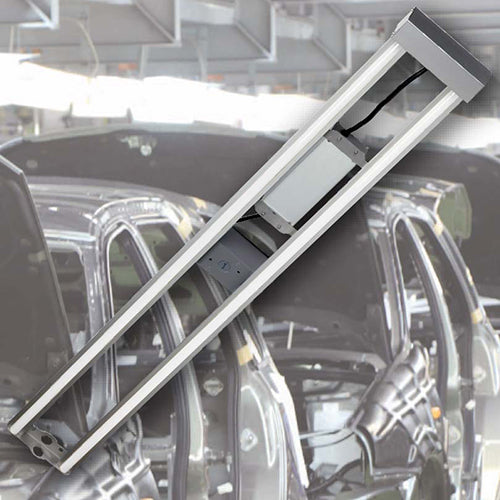

Powerful LED Linears for Industrial Use

  • 80 CRI standard enhances color and clarity
  • powerful light engine creates even output with 5 different distributions
  • optional field-installable aluminum reflectors for low or high bay, aisle, and task applications
  • optional acrylic diffuser provides control, minimizing potential for glare
  • typical mounting heights of 8’ - 60’
https://youtu.be/KkPNAC9JdA4

High Quality and Reliable Performance

  • 5 year warranty backed by U.S. company founded in 1949
  • rated for 62,000 hrs at L90
  • up to 169 lumens/watt
  • quality driver with integrated 4 kV surge
  • -40 to 122˚F ambient temperature ensures long lifetime in a variety of conditions

Cost Effective Industrial Lighting

  • typical payback of 12 – 24 months
  • optional 0-10 dimming
  • utilize optional motion and/or daylight sensors for additional energy savings
  • engineered with quality aluminum and space-age materials
    • minimalist design improves cooling and reduces shipping costs
    • superior LED thermal management ensures long lifetime
  • reduce downtime and minimize maintenance costs
  • potential for rebate savings through DLC certifications (refer to DLC QPL at www.designlights.org)

White LED Linears Model Lineup

4 Foot Linears
Model Weight Dimensions (L x W x H) CRI CCT Lumens Total Watts Lumens per Watt L70 L90

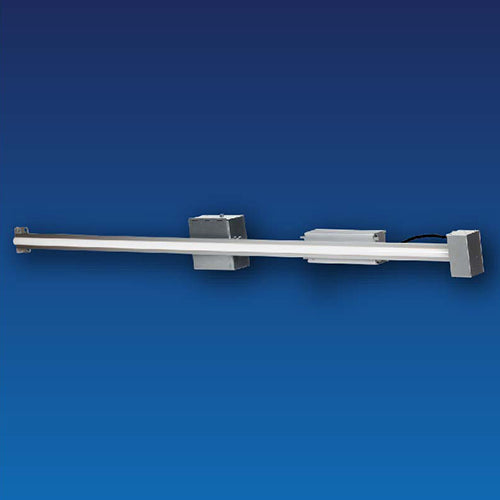

ETG-WLL-1080 (1 module) 3.53 lbs 49" x 3.1" x 3" 80+ 5000K 11,360 80 142 >220,000 hrs >60,000 hrs

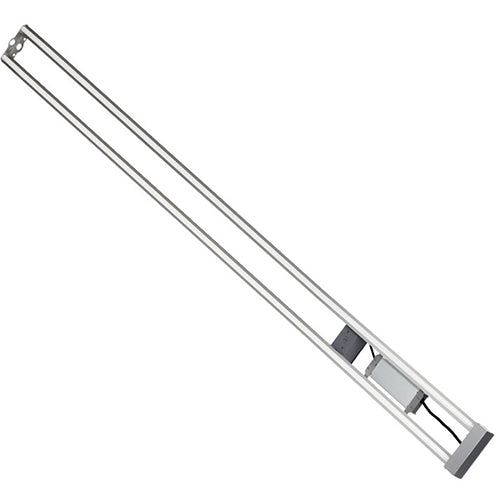

ETG-WLL-2160 (2 module) 7.3 lbs 49" x 6.1" x 3" 80+ 5000K 22,720 160 142 >220,000 hrs >60,000 hrs

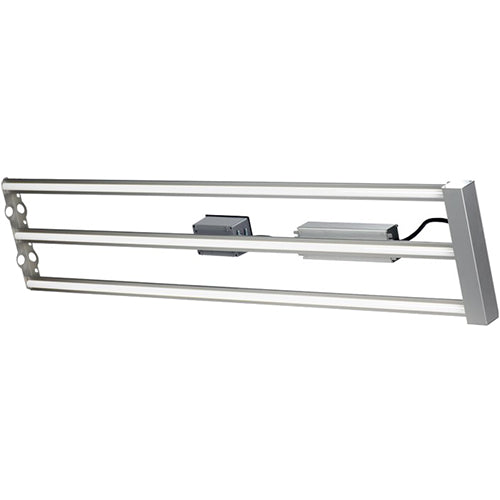

ETG-WLL-3240 (3 module) 10.9 lbs 49" x 10.6" x 3" 80+ 5000K 34,080 240 142 >220,000 hrs >60,000 hrs

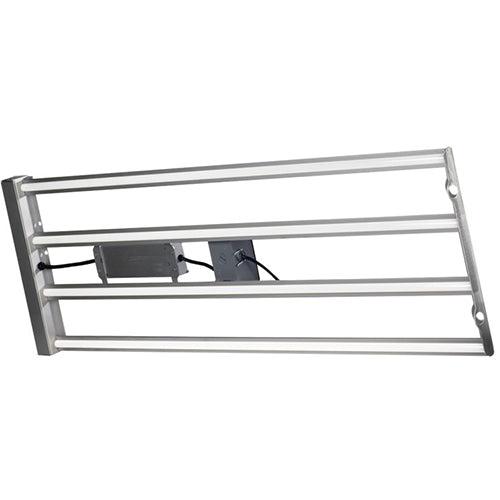

ETG-WLL-4320 (4 module) 14.6 lbs 49" x 15.1" x 3" 80+ 5000K 45,440 320 142 >220,000 hrs >60,000 hrs

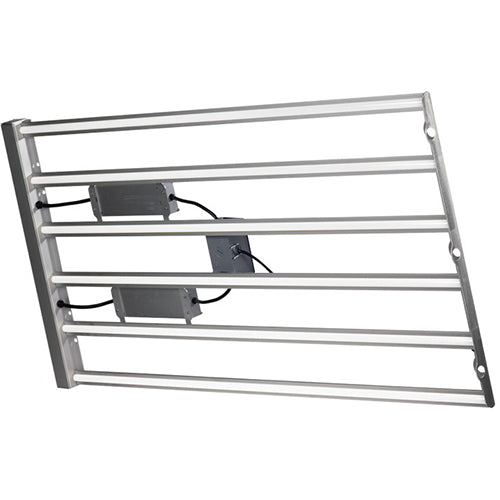

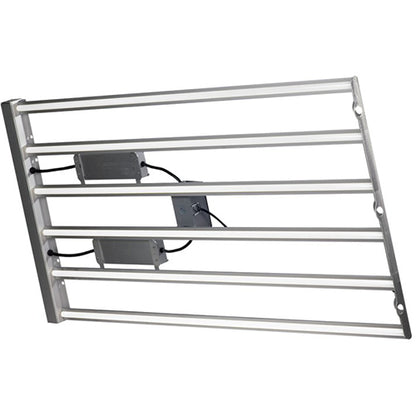

ETG-WLL-6480 (6 module) 21.8 lbs 49" x 24.1" x 3" 80+ 5000K 68,160 480 142 >220,000 hrs >60,000 hrs
8 Foot Linears
Model Weight Dimensions (L x W x H) CRI CCT Lumens Total Watts Lumens per Watt L70 L90
ETG-W8LL-1080 (1 module) 7.5 lbs 96" x 3.1" x 3" 80+ 5000K 12,080 80 151 >220,000 hrs >60,000 hrs
ETG-W8LL-1160 (1 module) 7.5 lbs 96" x 3.1" x 3" 80+ 5000K 22,720 160 142 >220,000 hrs >60,000 hrs
ETG-W8LL-2320 (2 module) 14.8 lbs 96" x 6.1" x 3" 80+ 5000K 45,440 320 142 >220,000 hrs >60,000 hrs

Power Options

Part Number Adder Built in with the Light 4 Foot 8 Foot
P1 (standard) On/Off 120~277 VAC Yes Yes
P2 480 VAC Yes Yes
P4 Dimming 120~277 VAC Yes Yes

Color and CRI Options

Part Number Adder Description 4 Foot 8 Foot
C1 (standard) 5000K 80 CRI Yes Yes
C2 4000K 80 CRI Yes Yes

Additional Accessories

Part Number Adder Description
B14 Raised Unistrut Mount
D4 Rotary Dimmer
G1 6 ft cord 120VAC NEMA 5
G2 6 ft cord 277VAC NEMA 7
M1 On/Off Motion
M2 On/Off Motion Cold
M6 Motion Sensor with Step Dimming
R1 Remote Mount Driver with 10 foot cable
-011 Wired for battery back up
-044 (available for 1 thru 6 tube) End Gaskets for Dust and Debris
ETG-BKT-B27 One set of 2 linear clip-on mounting brackets for units with power supplies with Unistrut / surface mounting (will mount 1 linear light)
ETG-DIM-100K-06 100K potentiometer dimming assembly with a 6' dimming wire lead
ETG-DIM-100K-12 100K potentiometer dimming assembly with a 12' dimming wire lead
ETG-DIM-SLD-06 slide dimmer in 2x4 box with 2 top and 2 bottom 1/2" conduit 6' cables
ETG-DIM-SLD-12 slide dimmer in 2x4 box with 2 top and 2 bottom 1/2" conduit 12' cables

Recommended Reflectors

Part Number Description
ETG-WLBRO 1 low bay 4 ft white reflector with 2 clips, highly reflective with 98% diffused reflector
ETG-LBR1 1 low bay 4 ft specular reflector with 2 clips, 52° angle light distribution
ETG-HBR1 1 high bay 4 ft specular reflector with 2 clips, 44° angle light distribution
ETG-ABR1 1 aisle bay 4 ft specular reflector with 2 clips, 33° angle light distribution
[embed]https://www.youtube.com/watch?v=-ub0JB1Cxec[/embed]

Common Uses for White LED Linears

  • Grocery Stores
  • Warehouses and Manufacturing Facilities
  • Department Stores
  • Sport Stadiums, Music Venues, and Theaters
  • Natatoriums and Sports Complexes
  • Industrial Garages
  • Hangars
  • Indoor Storage Facilities
  • Gymnasiums
